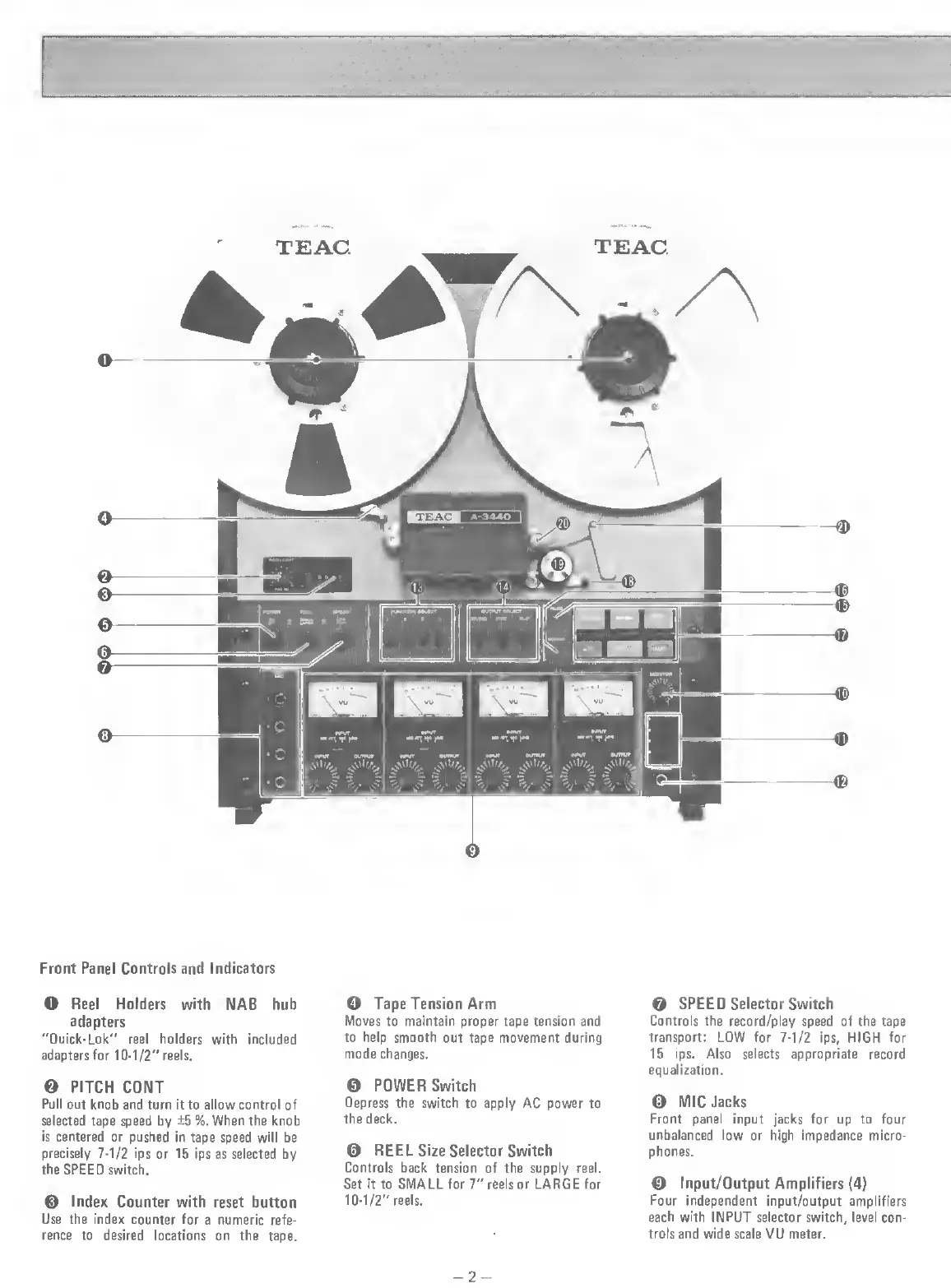

Front Panel Controls and Indicators
O Reel Holders with IMAB hub
adapters
"Quick-Lok” reel holders with included
adapters for 10-1/2''reels.
0 PITCH CONT
Pull out knob and turn it to allow control of
selected tape speed by ±5 %. When the knob
is centered or pushed in tape speed will be
precisely 7-1/2 ips or 15 ips as selected by
the SPEED switch.
0 Index Counter with reset button
Use the index counter for a numeric refe¬
rence to desired locations on the tape.
0 Tape Tension Arm
Moves to maintain proper tape tension and
to help smooth out tape movement during
mode changes.
0 POWER Switch
Depress the switch to apply AC power to
the deck.
0 REEL Size Selector Switch
Controls back tension of the supply reel.
Set it to SMALL for 1 " reels or LARGE for
10-1/2''reels.
- 2 -
0 SPEED Selector Switch
Controls the record/play speed of the tape
transport: LOW for 7-1/2 ips, HIGH for
15 ips. Also selects appropriate record
equalization.
0 MIC Jacks
Front panel input jacks for up to four
unbalanced low or high impedance micro¬
phones.
0 Input/Output Amplifiers (4)
Four independent input/output amplifiers
each with INPUT selector switch, level con¬
trols and wide scale VU meter.
