5
Remote Control Unit
The provided Remote Control Unit allows the unit to be operated
from a distance.
When operating the remote control unit, point it towards the
REMOTE SENSOR on the front panel of the unit.
<
Even if the remote control unit is operated within the effective
range, remote control operation may be impossible if there are
any obstacles between the unit and the remote control.
<
If the remote control unit is operated near other appliances
which generate infrared rays, or if other remote control
devices using infrared rays are used near the unit, it may
operate incorrectly. Conversely, the other appliances may
operate incorrectly.

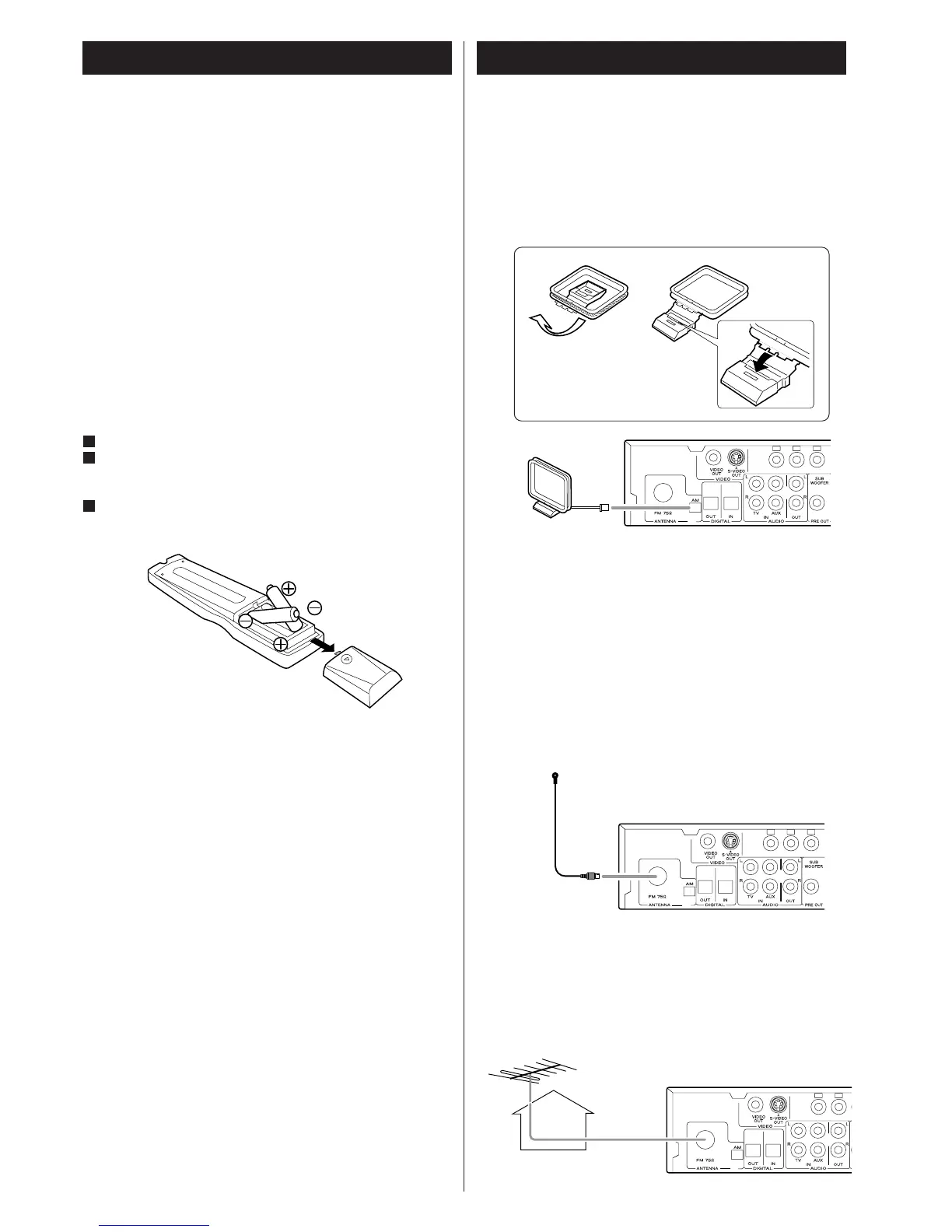

Battery Installation
Remove the battery compartment cover.
Insert two “AA“ (R6, SUM-3) dry batteries. Make sure that the
batteries are inserted with their positive “+
“ and negative “_“
poles positioned correctly.
Close the cover.
Battery Replacement
If the distance required between the remote control unit and main
unit decreases, the batteries are exhausted. In this case replace
the batteries with new ones.
Precautions concerning batteries
<
Be sure to insert the batteries with correct positive “+“ and
negative “_
“ polarities.
<
Use batteries of the same type. Never use different types of
batteries together.
<
Rechargeable and non-rechargeable batteries can be used.
Refer to the precautions on their labels.
<
When the remote control unit is not to be used for a long time
(more than a month), remove the batteries from the remote
control unit to prevent them from leaking. If they leak, wipe
away the liquid inside the battery compartment and replace the
batteries with new ones.
<
Do not heat or disassemble batteries and never dispose of old
batteries by throwing them in a fire.
3
2
1
Connecting Antennas
AM Indoor Loop Antenna
A high-performance AM loop antenna provided with this unit is
sufficient for good reception in most areas.
To stand the loop antenna on a surface, fix the claw to the slot.
Connect the loop antenna's wires to the AM antenna terminals as
shown.
Place the antenna on a shelf, for example, or hang it on a window
frame, etc., in the direction which gives the best reception, as far
away as possible from the entire system, speaker cords and the
power cord, to prevent unwanted noise.
If there is no room for the AM loop antenna, you may mount it on
the wall using screws (not supplied).
FM Indoor Antenna
Connect the lead-type FM antenna to the FM 75Ω socket, extend
the lead and fix it to a window frame or wall with thumbtacks, or
the like, where reception is best.
FM Outdoor Antenna
In an area where FM signals are weak, it will be necessary to use
an outdoor FM antenna. Generally, a 3-element antenna will be
sufficient; if you live in an area where the FM signals are
particularly weak, it may be necessary to use one with 5 or more
elements.
