Page 48 SC2000 Manual – 177/52301 Rev G 22
nd
October
2004
B+
B-
Capacitor
Bank
Battery -ve
Battery +ve

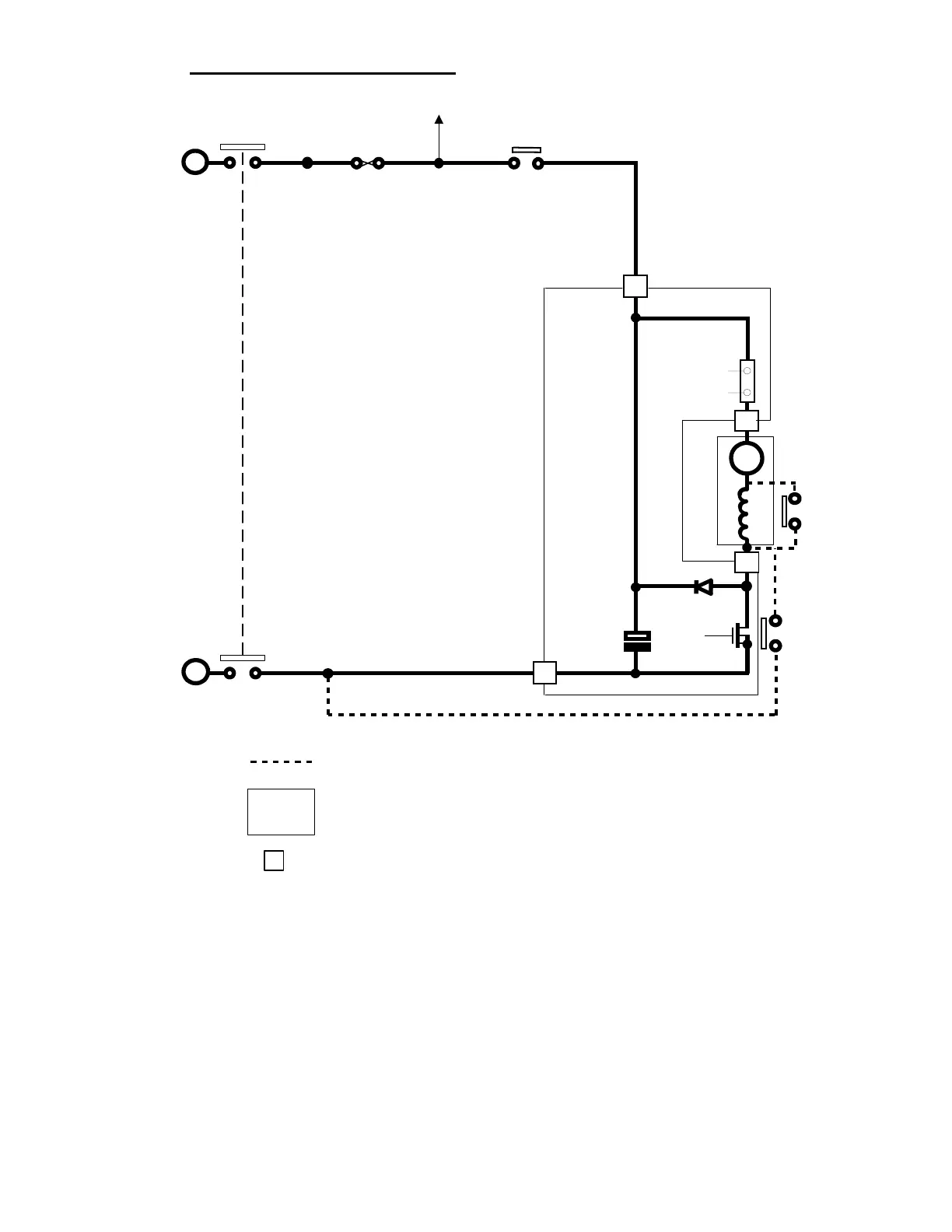

Fig. 4 - SC23xx Power Pump
F2
A
S2
PUMP
CONTROLLER
Freewheel
Diode (P)
Pump
Shunt
LINE (OPTIONAL)
Main
Fuse
Battery
Disconnect
PUMP BYPASS
PUMP
Optional Wiring
To Key Switch
Controller Area
Power Terminal
Note 1 : Do not supply any auxiliary equipment from the controller B+ terminal.
PUMP F.W.
