October 2004 SC2000 Manual – 177/52301 Rev G Page 33
11 DASHBOARD DISPLAYS - OPERATION AND FEATURE DESCRIPTIONS
SEVCON offers 2 dashboard mounted CAN (Controller Area Network) Displays for any
SEVCON controller equipped with serial CAN communications, including the SC2000 range.
A standard display offers a compact design compatible with 2” dashboard hole mounting, and
a full-feature display offers a higher specification LCD. Both are back-lit for use in low
ambient light conditions.
Both displays have BDI Indication and 4 hours-counters. The hours counters are retained in
the display in the event of the controller or the controller’s logic being replaced in the field.
11.1 STANDARD DISPLAY
The unit consists of a 2x16 alphanumeric LCD display housed in a standard 50mm circular
plastic case, with a rectangular front facia. The display incorporates a 10 segment BDI
(Battery Discharge Indicator), a 6 digit hours counter and a 10 character area for diagnostic
and status messages. When there are no diagnostic messages the area can be used to
indicate a variety of system status readings, including Steer Angle.
11.1.1 STANDARD DISPLAY FEATURES.
• One unit for 24V-96V.
* Standard 50mm circular case with rectangular front facia, enclosed to IP65
* Alphanumeric display 2x16 characters.
* Readily understandable display format consisting of numbers, text and segments.
* 10 segment BDI indication, with low charge warning and cut-out warnings.
* 10 character text based diagnostic/status display.
* 6 digit hours counter with 0.1 hour indication, and flashing “egg timer” counting symbol.
* Capable of counting up to 99999.9 hours. Equates to 34 years @ 8 hour shift per day
* Keyswitch, Traction, Pump and Work hours count can be shown, identified as K, T, P,
W.
* Hours count retained in display in the event of a controller or logic replacement.
* Optional Steer Angle indication for vehicles fitted with steer potentiometer.
* Display connected via single cable, no external power connections necessary.
•

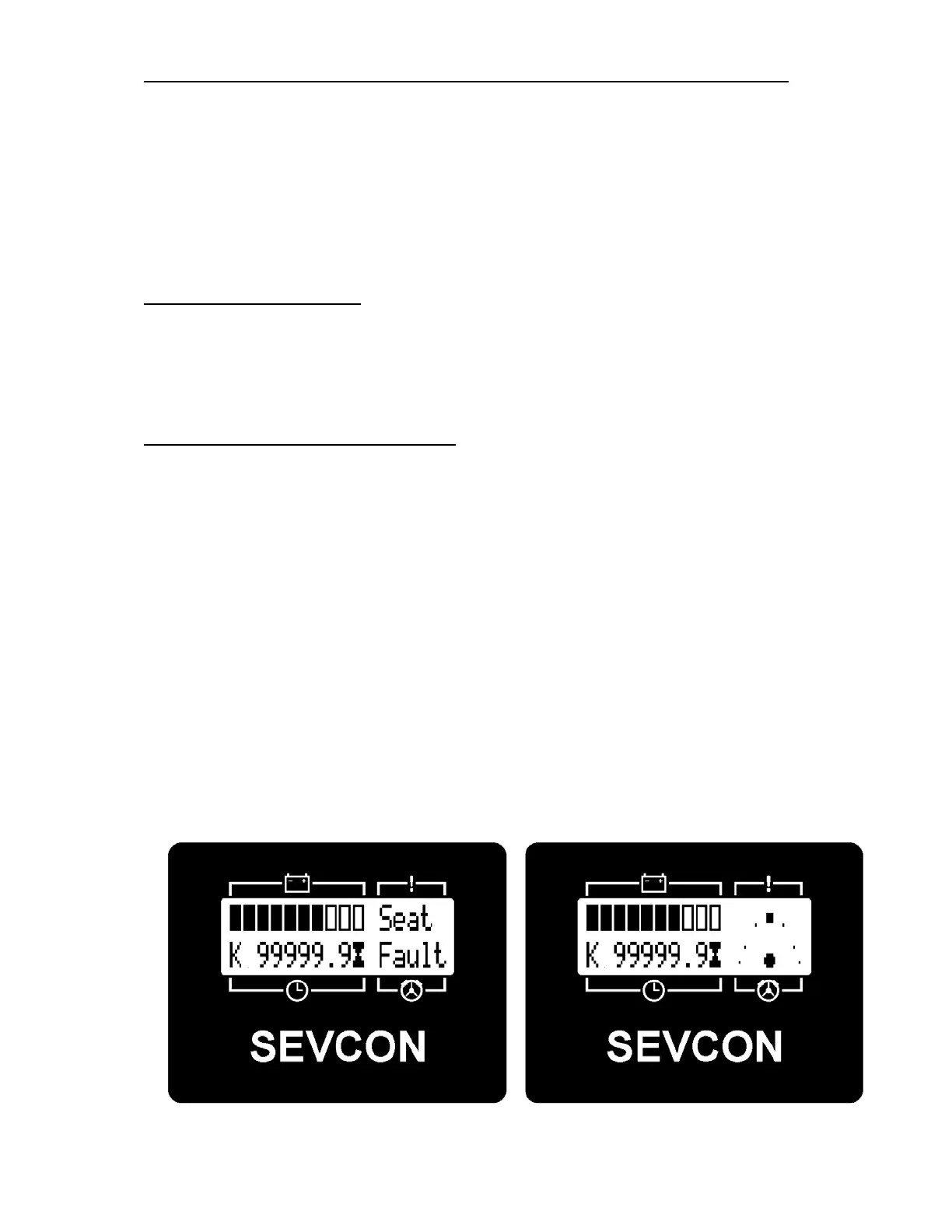

Display example showing diagnostic message Display example showing forward steer
angle indicator
