28Technetix Group LimitedRev.1._0.1_0217

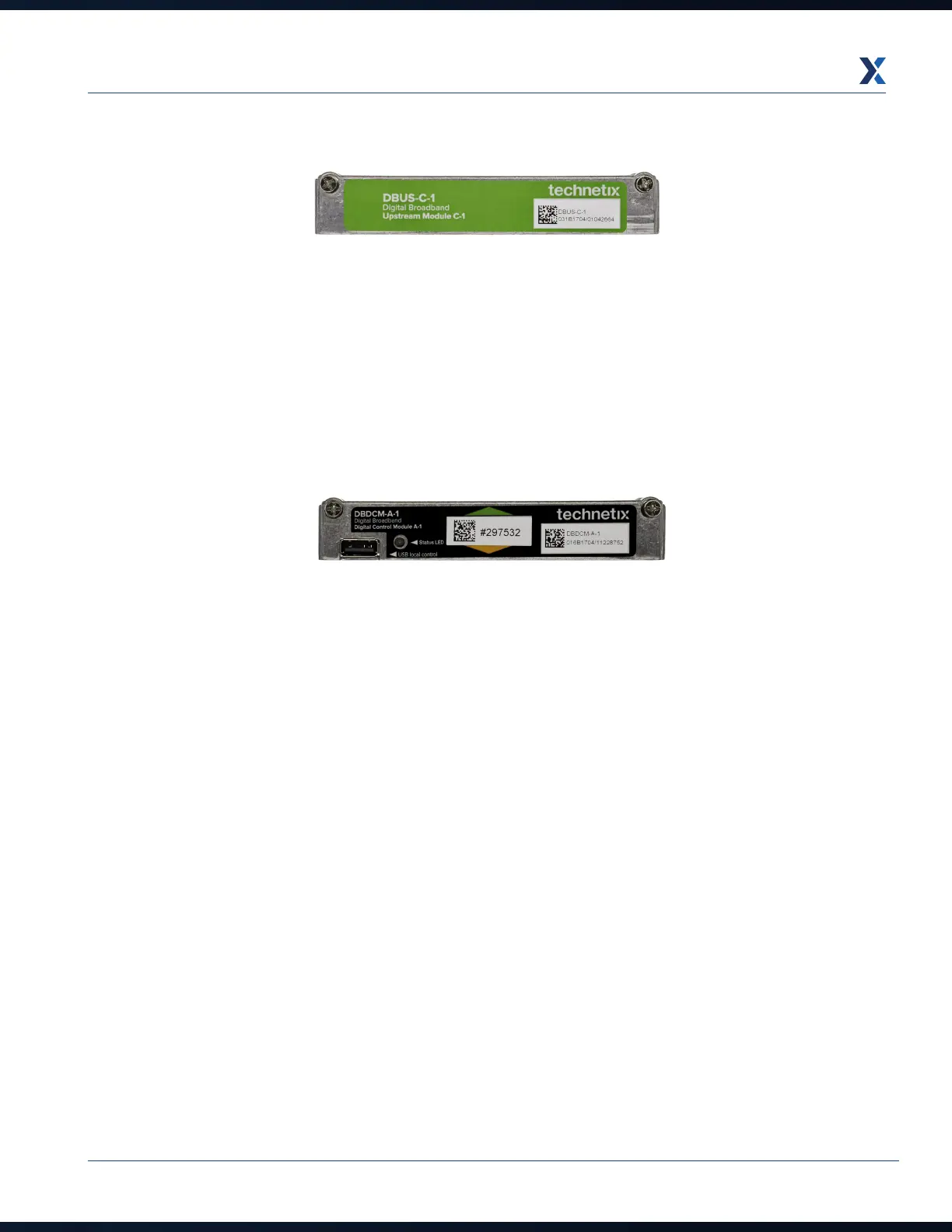

Upstream
1. To remove a module, unscrew both screws and then grip the ends of the module applying a rocking motion whilst
pulling the module at the same time.
2. To install the module, place it into the upstream slot and push firmly and squarely down onto the unit until it is fully
seated. Secure it by tightening the screws to a torque value of 1.5 Nm.
Digital control
1. To remove a module, unscrew both screws and then grip the ends of the module applying a rocking motion whilst
pulling the module at the same time.
2. To install the module, place it into the upstream slot and push firmly and squarely down onto the unit until it is fully
seated. Secure it by tightening the screws to a torque value of 1.5 Nm.
