Diplex filters

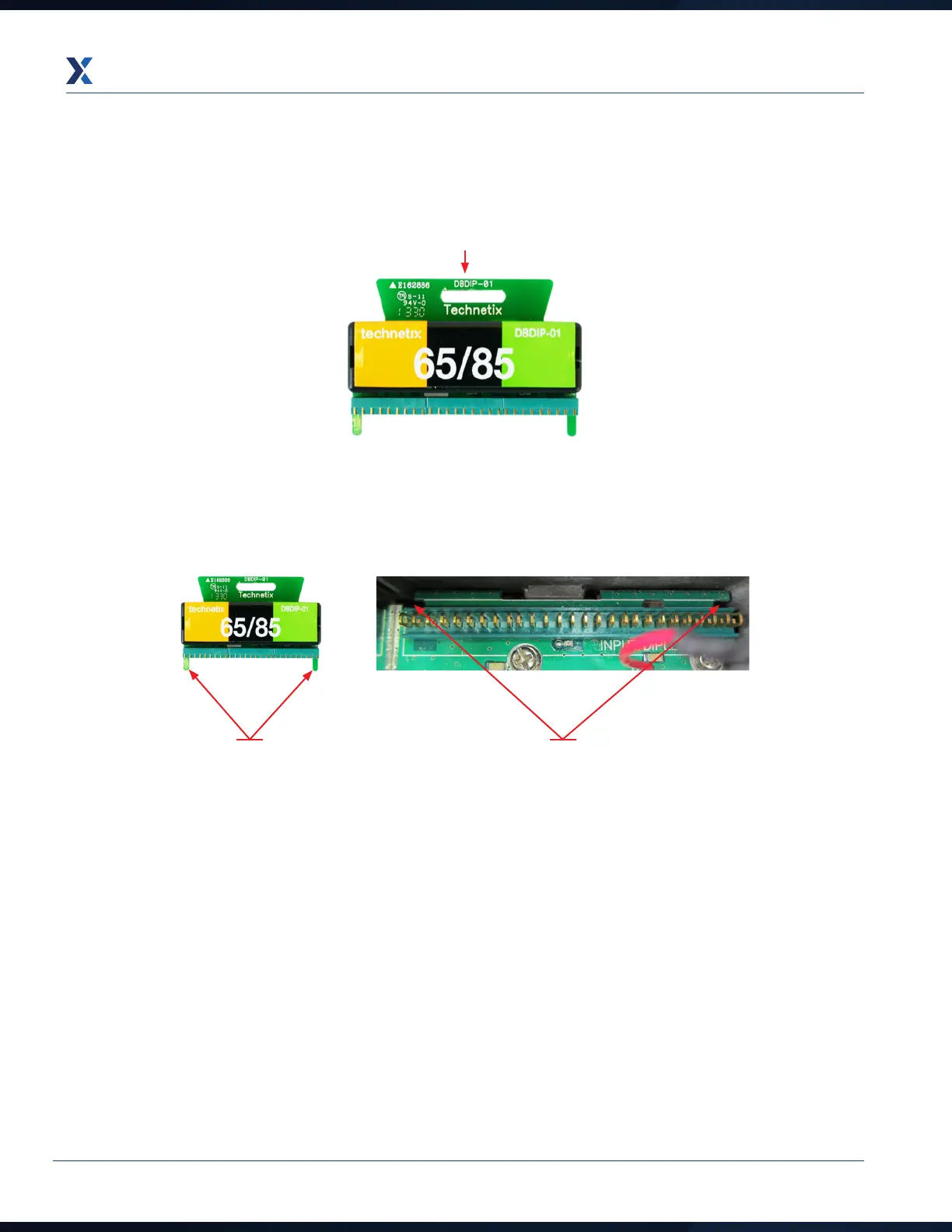

1. To remove a diplex filter: grip the centre of the PCB with a pair of linesman’s pliers and gently pull out the diplex
filter vertically, avoiding risk of damage to the connectors.
2. To install a diplex filter: guide the filter guide pegs onto the slots in the amplifier circuit board and then push down
evenly on the diplex filter until it is fully seated into the amplifier. Take care to avoid damaging the connectors.
Grip here
Diplex guide pegs Diplex guide peg holes
