6 Use Cases
Four different Use Cases can be configured by DIP Switch 3 and 4 for the BRSPY mini. After
changing this switches, a hardware reset is required.
6.1 Dual Media Converter Mode

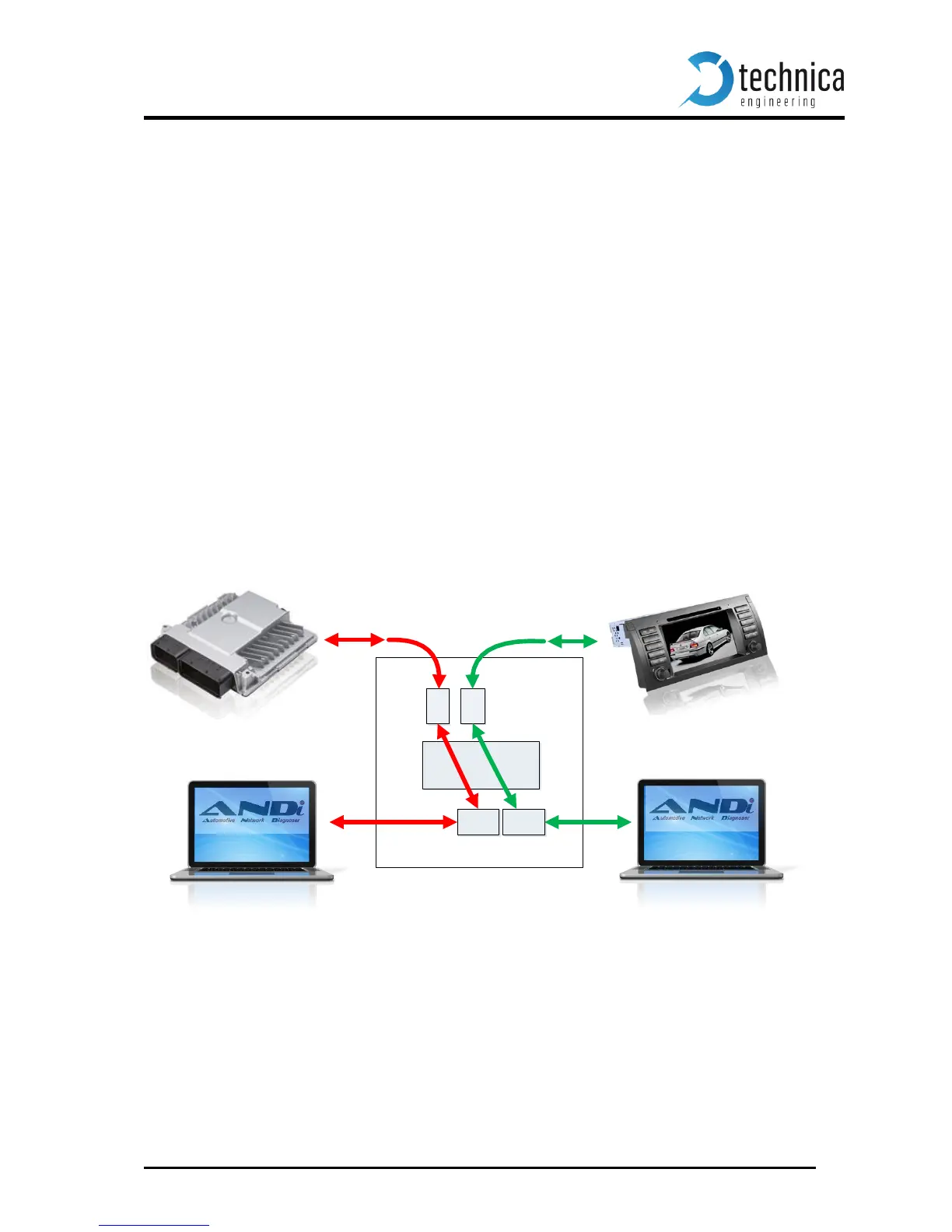

The simplest Use Case is the double Media Converter, selected by setting the DIP switches
3 and 4 to “00”. The BR SPY mini will act similar to two completely independent Media Con-
verters from BroadR-Reach to Fast Ethernet in Full Duplex Mode.
The two data streams of the two Media Converters are completely independent of each oth-
er. Both data streams are full duplex and the RJ45 Ports are input/output. The PC can send
data.
There are no buffers in this Use Case.
The RJ45 Ports work in Fast Ethernet (100 Mbit/s) Mode in this Use Case.
