6.3.2 Status Reporter
On any of the BroadR-Reach and in GB1, the CRC and Continuous Counter fields are
checked and the result is reported each second in a Status Frame. This frame is transmitted
on GB2 with the following format:

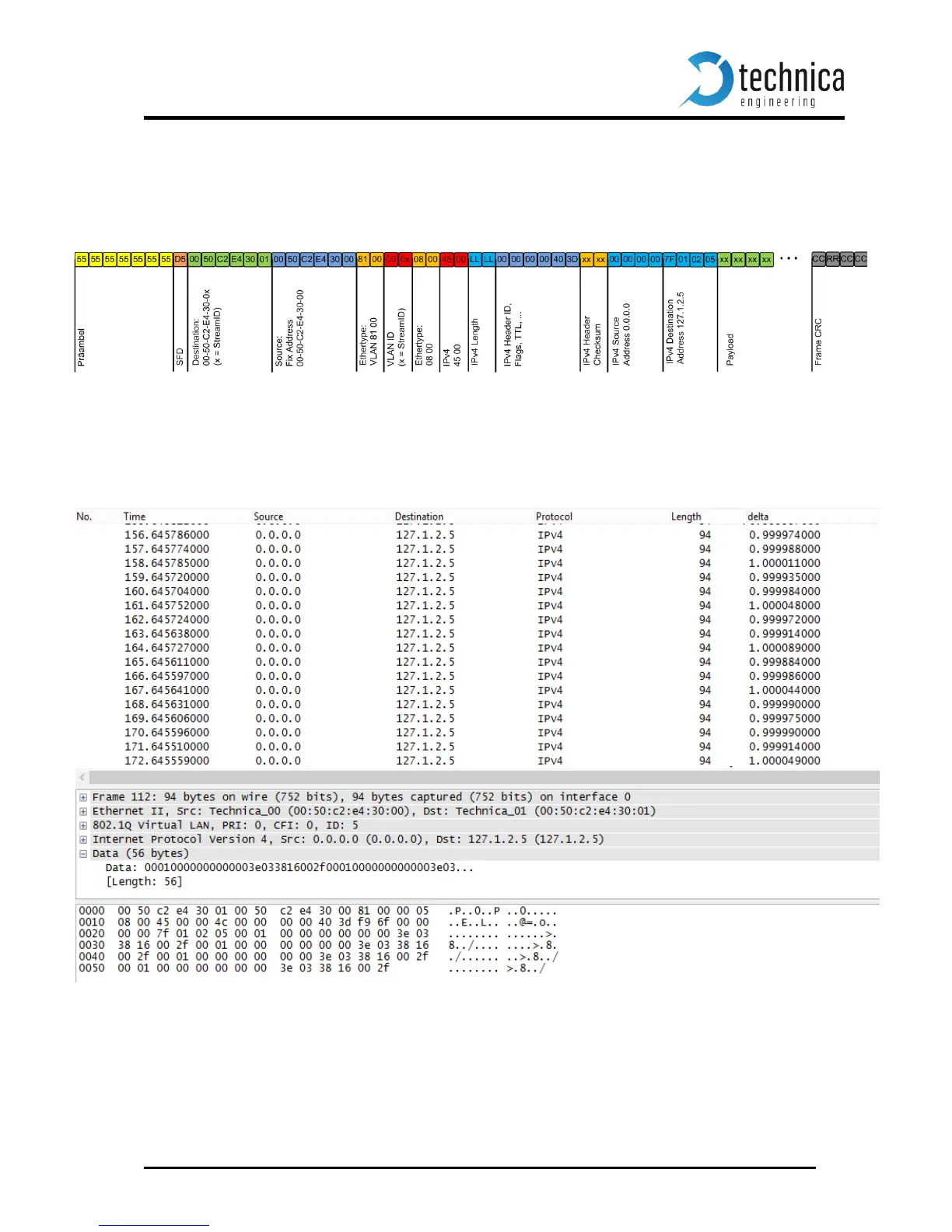

In this port, the StreamID = 5, and the GB1 works as a Fast Ethernet port. The following im-
age shows an example of a Status Frame in Wireshark:
