3 MANUAL INSTALLATION
DMS-CTC-20120510-0000 v1.0

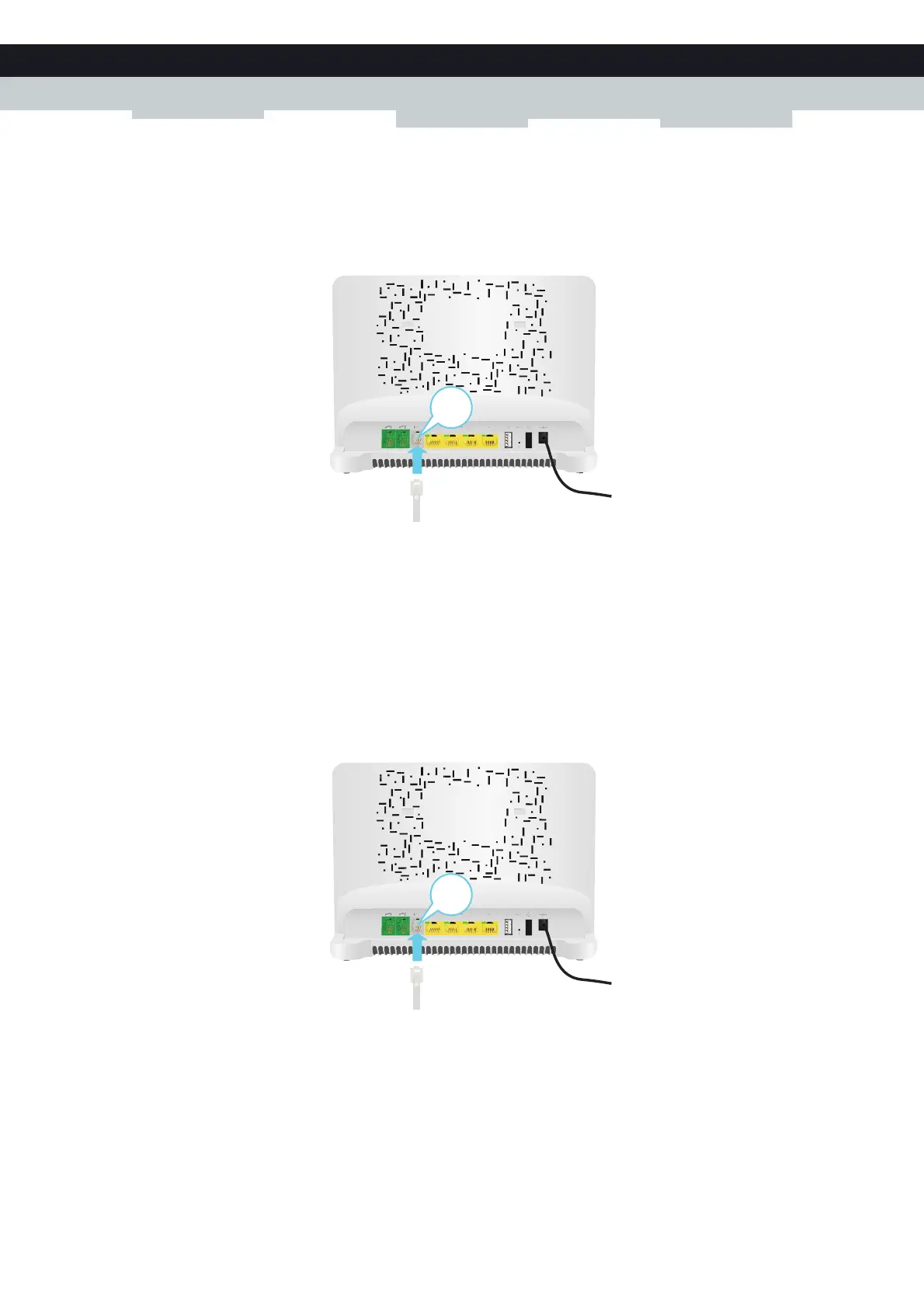

Scenario 1: A MediaAccess Gateway with integrated filter
Proceed as follows:
1 Take the DSL cable. This is the gray cable that is included in your box.
2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.
3 Plug the other end of the cable:
 In the DSL/Modem output of your splitter/filter.
 Directly into the telephone wall outlet if there is no splitter/filter between the network terminator and your local
phone network.
Scenario 2: A MediaAccess Gateway without integrated filter
Proceed as follows:
1 Take the DSL cable. This is the grey cable that is included in your box.
2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.
3 Plug the other end of the cable into the DSL/MODEM output port of your filter/splitter.
DSL
DSL

Technicolor MediaAccess TG788VN Specifications

General

Wi-Fi Frequency Bands	2.4 GHz
Wireless Speed	Up to 300 Mbps
Ethernet Ports	4 x 10/100 Mbps
VoIP	Yes
Wireless Standard	802.11b/g/n
USB Ports	1 x USB 2.0
DSL Interface	RJ11
ADSL Standards	ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis) Annex A, Annex L, Annex M
ADSL2+ Standards	ITU-T G.992.5 (ADSL2+)
Security	WEP, WPA, WPA2
Power Supply	12V DC, 1.5A
VPN	IPSec
