Technics QUARTZ SA-160 User Manual

SA-160

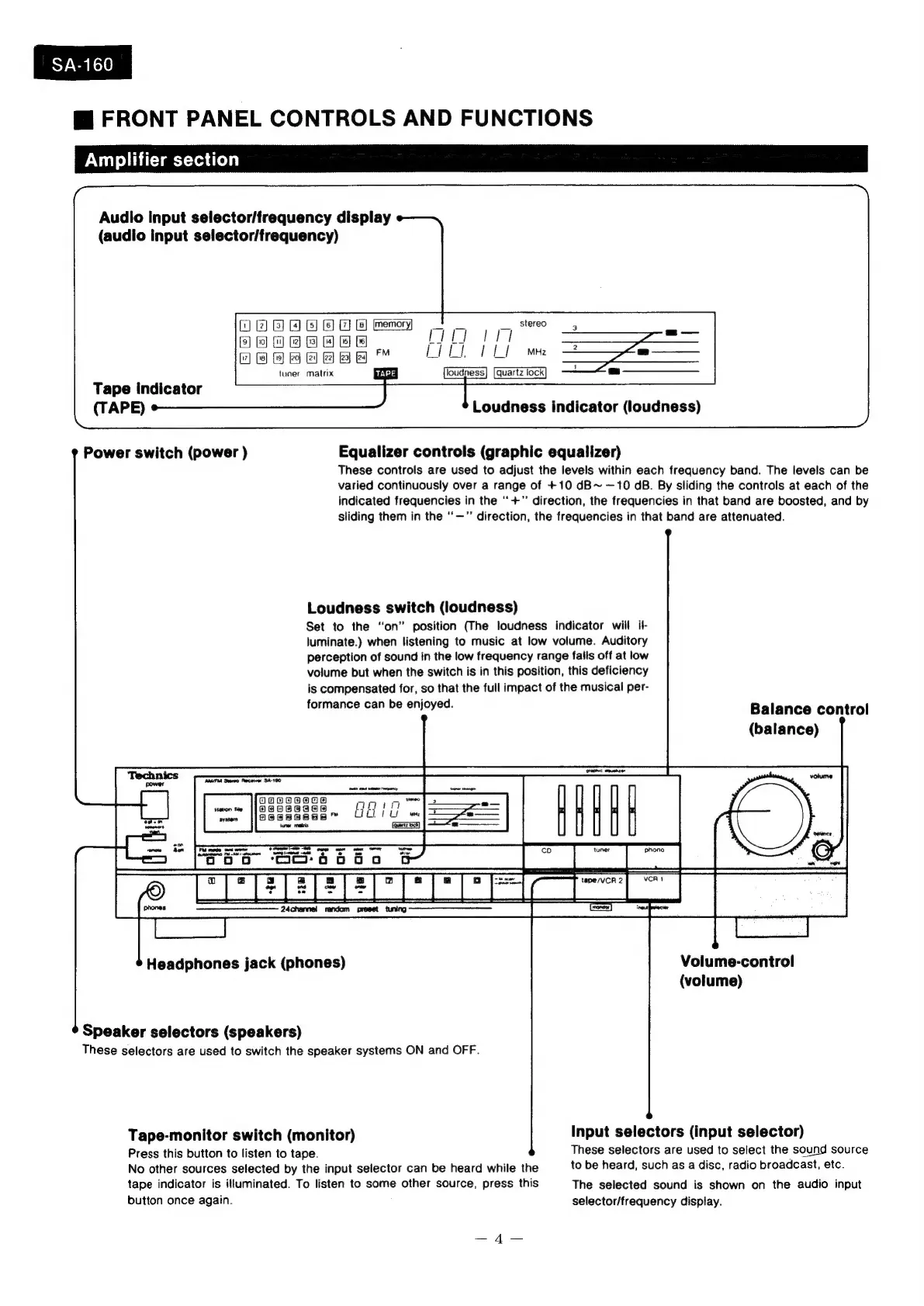

@ FRONT PANEL CONTROLS AND FUNCTIONS
Amplifier section
Audio input selector/frequency display
(audio input selector/frequency)
[4] 7} [8] [memory] s ___ stereo
(2)
pal a FM fi Lt [| Mrz
tuner matrix {loudness} [quartz lock
Tape indicator
(TAPE) Loudness indicator (loudness)
Power switch (power ) Equalizer controls (graphic equalizer)
These controls are used to adjust the levels within each frequency band. The levels can be
varied continuously over a range of +10 dB~ — 10 GB. By sliding the controls at each of the
indicated frequencies in the ‘‘+” direction, the frequencies in that band are boosted, and by
sliding them in the “—"' direction, the frequencies in that band are attenuated.
Loudness switch (loudness)
Set to the “on” position (The loudness indicator will it
luminate.) when listening to music at low volume. Auditory
perception of sound in the low frequency range falls off at low
volume but when the switch is in this position, this deficiency
is compensated for, so that the full impact of the musical per-
formance can be enjoyed. Balance control
(balance)
Voiume-control
(volume)
Headphones jack (phones)
Speaker selectors (speakers)
These selectors are used to switch the speaker systems ON and OFF.
Input selectors (input selector)
These selectors are used to select the sound source
Tape-monitor switch (monitor)
Press this button to listen to tape.
No other sources selected by the input selector can be heard while the to be heard, such as a disc, radio broadcast, etc.
tape indicator is illuminated. To listen to some other source, press this The selected sound is shown on the audio input
button once again. selector/frequency display.
