SA-R330
Ref.
No.

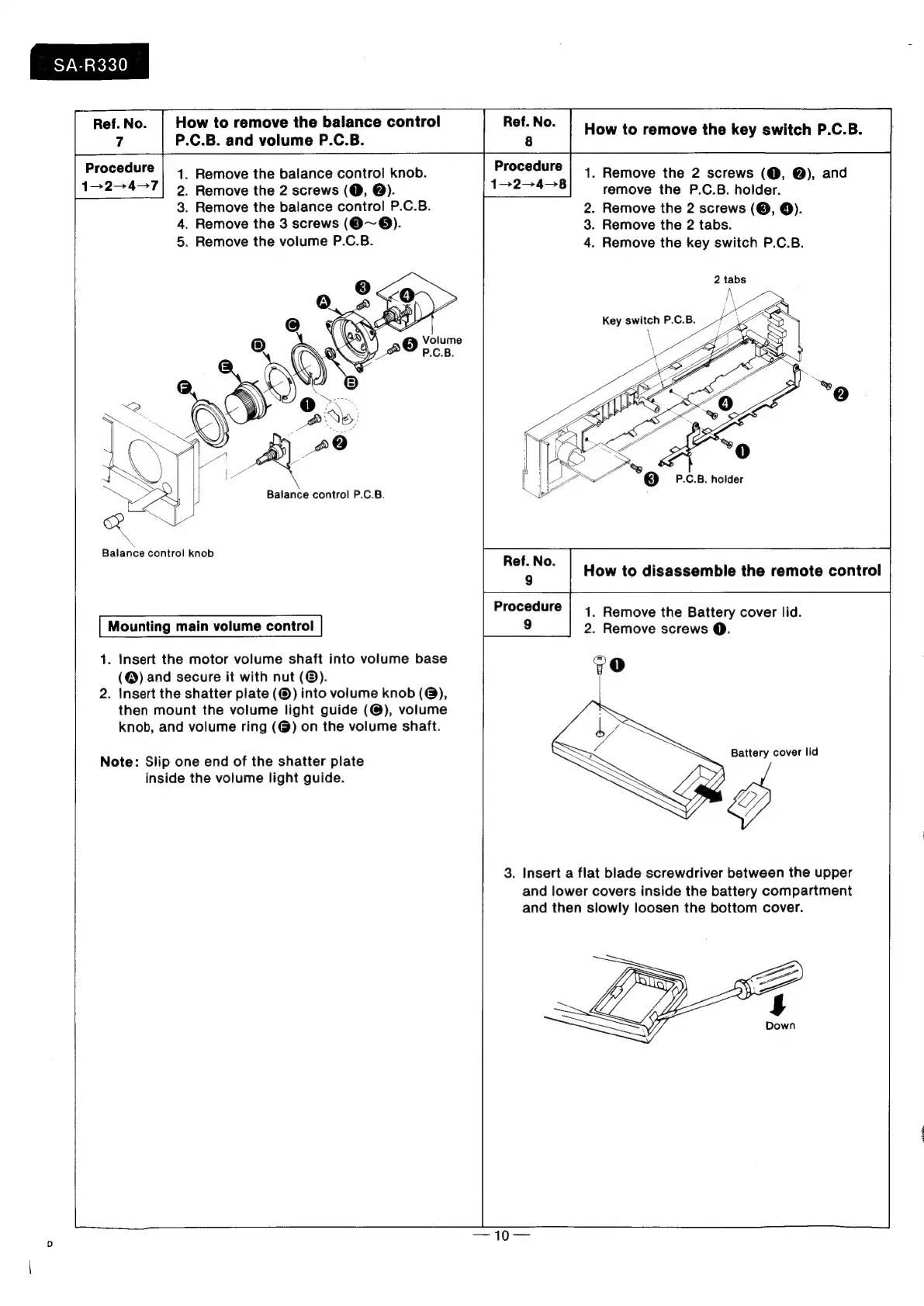

How
to
remove
the
balance
control
Ref.
No.
:
7 P.C.B. and volume P.C.B. ‘i How to remove the key switch P.C.B.
Procedure | 4 Remove the balance control knob. 1. Remove the 2 screws (@, @), and
1+2+4-T) 9. Remove the 2 screws (@, @). 1+2>4>8 remove the P.C.B. holder.
3. Remove the balance control P.C.B. 2. Remove the 2 screws (@, ®).
4. Remove the 3 screws (@~®). 3. Remove the 2 tabs.
5. Remove the volume P.C.B. 4. Remove the key switch P.C.B.
Balance control P.C.B.
Balance control knob Ref. No
How to disassemble the remote control
Procedure | 4 Remove the Battery cover lid.
Mounting main volume control 9 2. Remove screws @.
1. Insert the motor volume shaft into volume base Fo
(@) and secure it with nut (©). y
2. Insert the shatter plate (©) into volume knob (@),
then mount the volume light guide (@), volume
knob, and volume ring (@) on the volume shaft.
lid
Note: Slip one end of the shatter plate eanencaern
inside the volume light guide. hg
3. Insert a flat blade screwdriver between the upper
and lower covers inside the battery compartment
and then slowly loosen the bottom cover.
