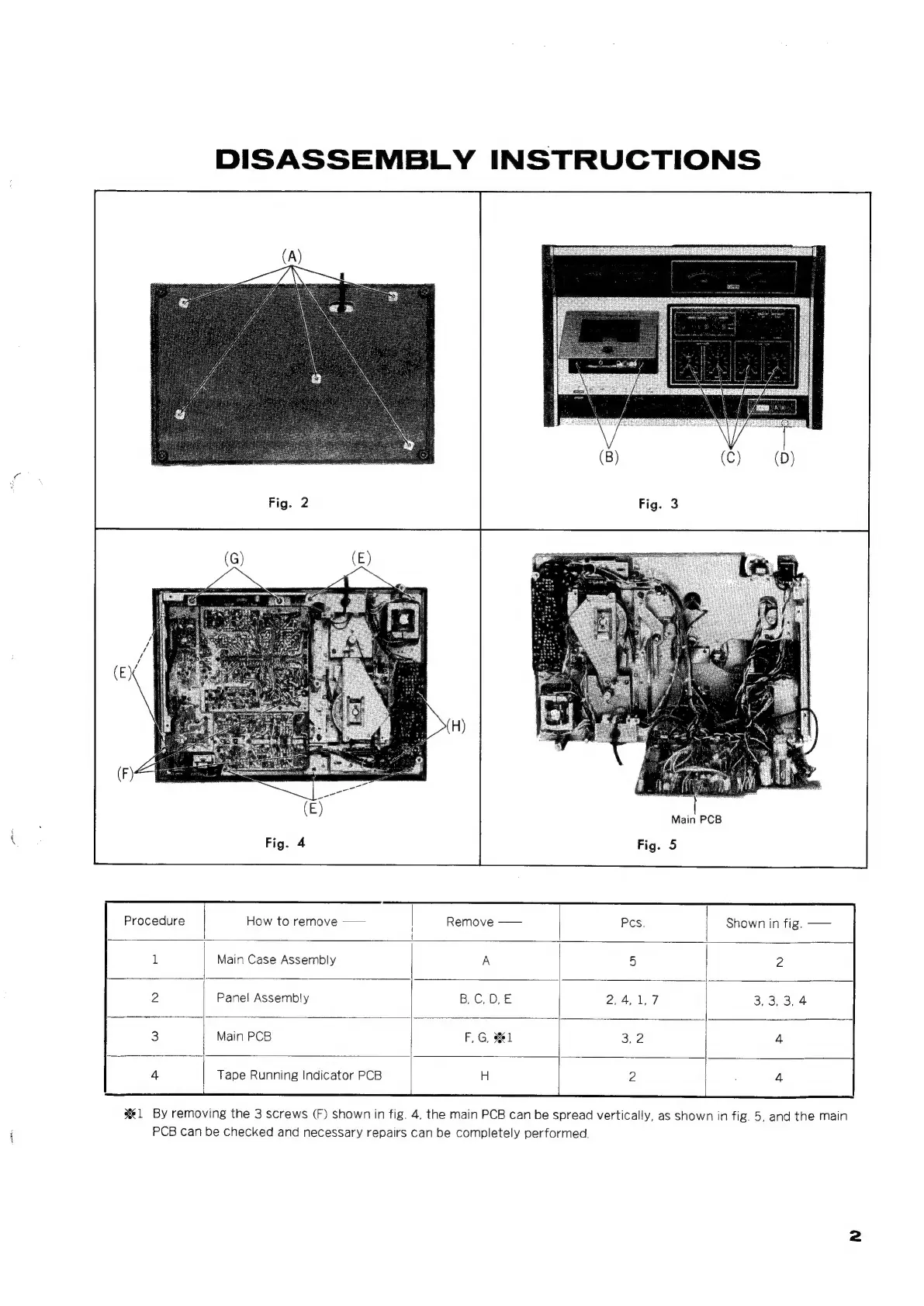

DISASSEMBLY INSTRUCTIONS
Main PCB
Fig. 5
Procedure How to remove —— | Remove —— PCs. Shown in fig. ——
f
1
Main
Case
Assembly
A
5
2
2 Panel Assembly B,C, D,E 2,4,1,7 3, 3,3, 4
3 Main PCB F,G, %1 3.2 4
4
Tape
Running
Indicator
PCB
H
2
.
4
ee
%1 By removing the 3 screws (F) shown in fig. 4, the main PCB can be spread vertically, as shown in fig. 5, and the main
PCB can be checked and necessary repairs can be completely performed.
