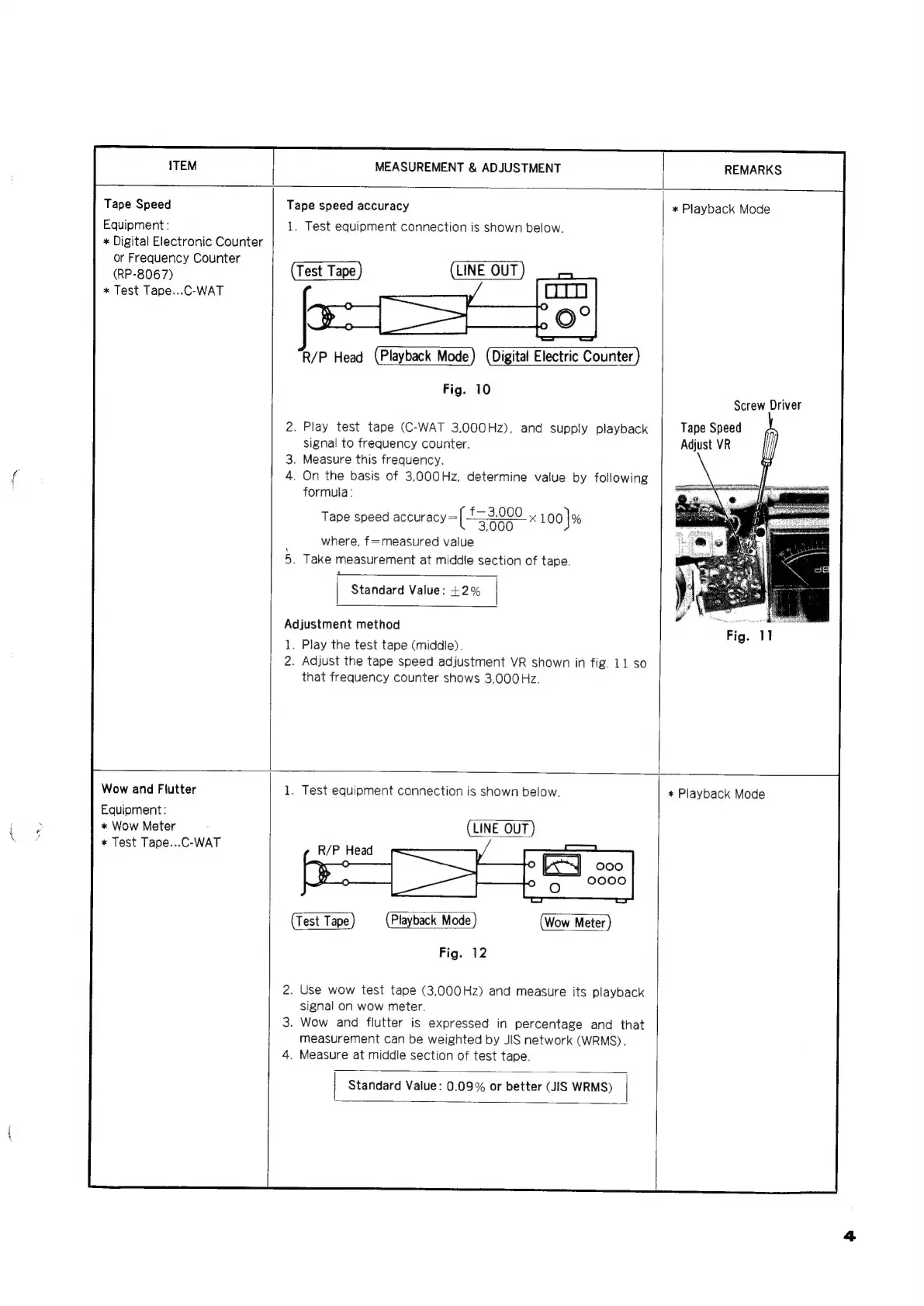

Technics RS-273US - Page 5

ITEM
MEASUREMENT & ADJUSTMENT
REMARKS
Tape Speed
Equipment:
* Digital Electronic Counter
or Frequency Counter
(RP-8067)
* Test Tape...C-WAT
Tape speed accuracy
1. Test equipment connection is shown below.
LINE OUT
R/P Head (Playback Mode) (Digital Electric Counter)
Fig. 10
. Play test tape (C-WAT 3,000Hz), and supply playback
signal to frequency counter.
. Measure this frequency.
. On the basis of 3,000Hz, determine value by following
formula:
Tape speed accuracy =(4= 3.000 x 100]%
where, f=measured value
. Take measurement at middle section of tape.
“
Standard Value: +2% |
Adjustment method
1. Play the test tape (middle).
2. Adjust the tape speed adjustment VR shown in fig. 11 so
that frequency counter shows 3,000Hz.
* Playback Mode
Screw Driver
Tape Speed
Adjust VR
Wow and Flutter
Equipment:
* Wow Meter
* Test Tape...C-WAT
1. Test equipment connection is shown below.
(Test Tape) (Playback Mode)
Fig. 12
.
Use
wow
test
tape
(3,000Hz)
and
measure
its
playback
signal
on wow
meter.
.
Wow
and
flutter
is
expressed
in
percentage
and
that
measurement
can
be weighted
by
JIS
network
(WRMS).
. Measure at middle section of test tape.
Standard Value: 0.09% or better (JIS WRMS)
* Playback Mode
