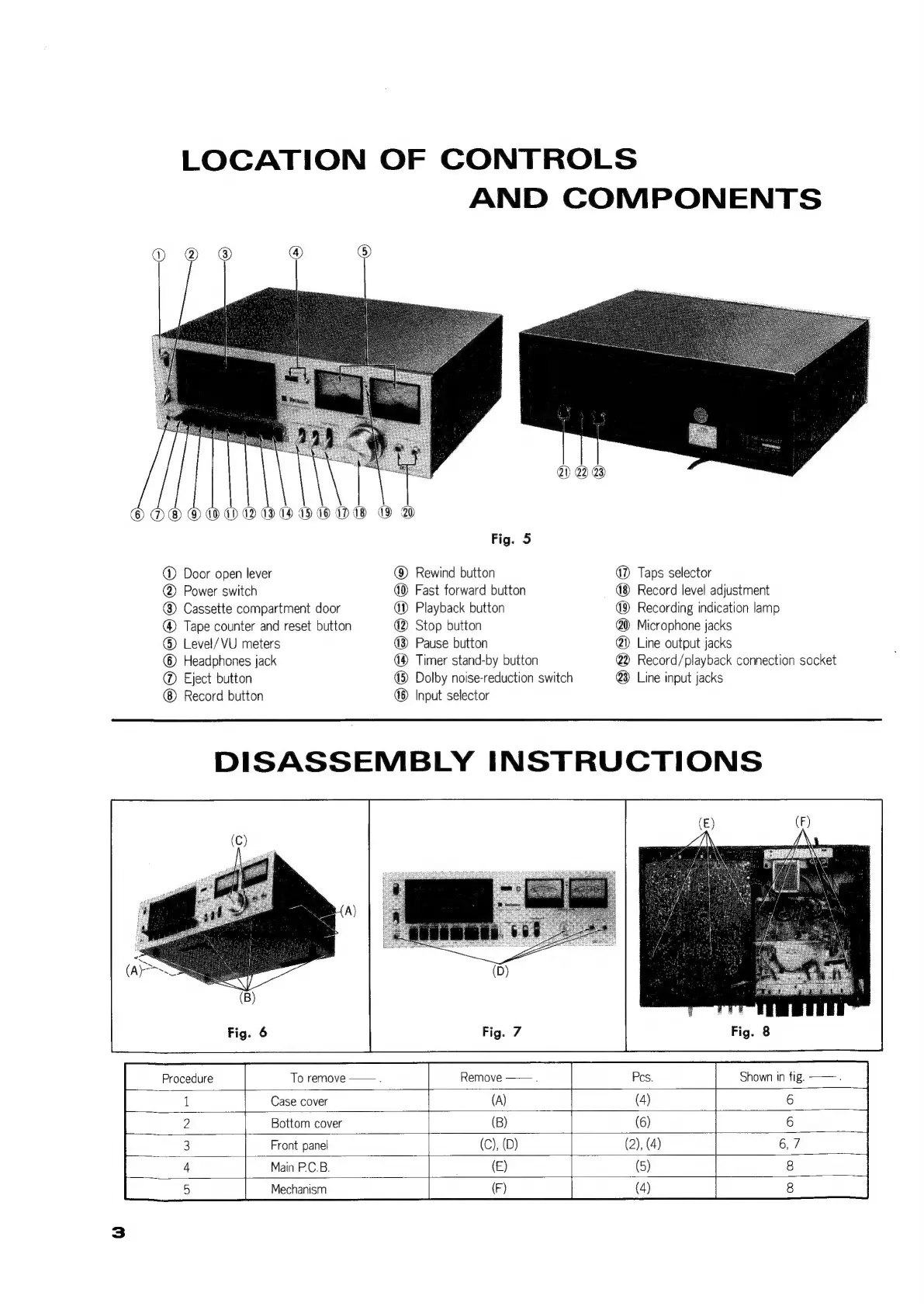

LOCATION OF CONTROLS
AND COMPONENTS
@ Door
© D® ®D W Ad 43 13. 19.49 (D1 19 2
open lever
@ Power switch
@ Cassette compartment door
@ Tape
counter and reset button
® Level/VU meters
@ Headphones jack
@® Eject
button
Record button
Procedure
Fig. 5
@ Rewind button
Fast forward button
@ Playback button
@ Stop button
43) Pause button
Timer stand-by button
@ Dolby noise-reduction switch
Input selector
a? Taps selector
Record level adjustment
Recording indication lamp
@) Microphone jacks
@) Line output jacks
@2 Record/playback connection socket
@) Line input jacks
DISASSEMBLY INSTRUCTIONS
To remove ——.
Shown in fig. —— .
Case cover
6
Bottom cover
6
Front panel
6, 7
Main P.C.B.
8
Mechanism
