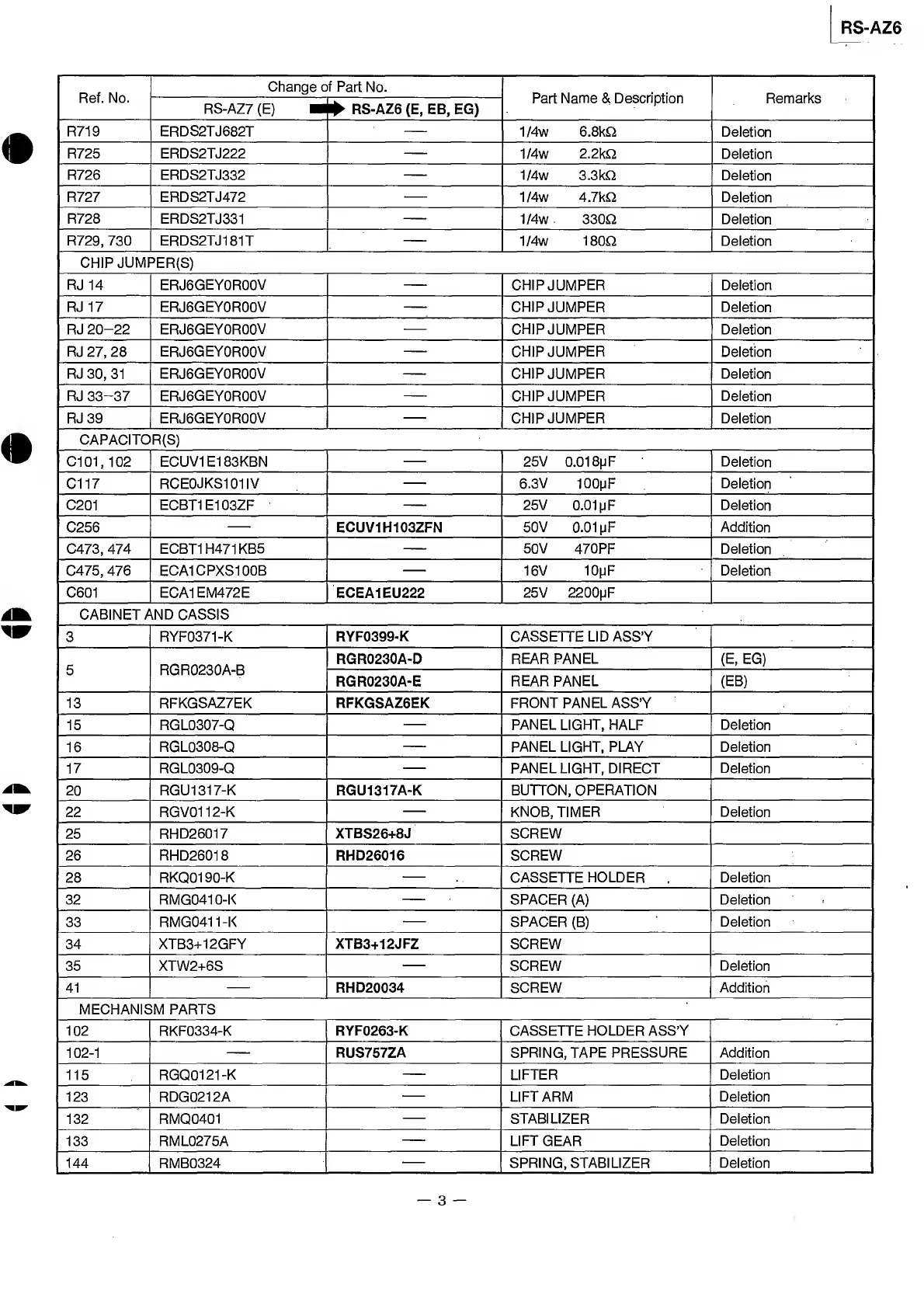

Technics RS-AZ6 Service Manual

RS-AZ6
Part Name & Description
Remarks
RS-AZ7 (E) m
R719
ERDS2TJ682T
—
1/4w 6.8k£4
Deletion
R725 ERDS2TJ222
—
1/4w 2.2kQ Deletion
R726 ERDS2TJ332
—
1/4w 3.3kQ
Deletion
mam
ERDS2TJ472
—
1/4w 4.7kQ
Deletion
R728
ERDS2TJ331
—
1/4w 330Q
Deletion
R729,730 ERDS2TJ181T
—
1/4w 180Q Deletion
| CHIP JUMPER(S)
RJ 14
ERJ6GEY0R00V —
CHIP JUMPER Deletion
RJ 17 ERJ6GEY0R00V
—
CHIP JUMPER
Deletion
RJ 20-22
ERJ6GEY0R00V
—
CHIP JUMPER Deletion
RJ 27, 28
ERJ6GEY0R00V
—
CHIP JUMPER
Deletion
RJ 30, 31 ERJ6GEY0R00V
—
CHIP JUMPER
Deletion
RJ 33-37
ERJ6GEY0R00V
—
CHIP JUMPER
Deletion
RJ 39
ERJ6GEY0R00V
—
CHIP JUMPER
Deletion
CAPACITOR(S)
Cl 01, 102
ECUV1E183KBN
—
25V 0.018pF
Deletion
Cl 17 RCE0JKS101IV
—
6.3V lOOpF Deletion
C201
ECBT1E103ZF
—
25V 0.01 pF
Deletion
C256
—
ECUV1H103ZFN
50V 0.01 pF Addition
C473, 474 ECBT1H471KB5
—
50V 470PF Deletion
C475, 476
ECA1CPXS100B
—
16V lOpF
Deletion
C601 ECA1EM472E
ECEA1EU222
25V 2200pF
CABINET AND CASSIS
3 RYF0371-K RYF0399-K CASSETTE LID ASS’Y
5
RGR0230A-B
RGR0230A-D REAR PANEL (E, EG)
RGR0230A-E REAR PANEL
(EB)
13
RFKGSAZ7EK
RFKGSAZ6EK FRONT PANEL ASS’Y
15
RGL0307-Q
—
PANEL LIGHT, HALF
Deletion
16
RGL0308-Q
—
PANEL LIGHT, PLAY Deletion
17 RGL0309-Q
—
PANEL LIGHT, DIRECT Deletion
20
RGU1317-K RGU1317A-K
BUTTON, OPERATION
22 RGV0112-K
—
KNOB, TIMER
Deletion
25
RHD26017 XTBS26+8J SCREW
26
RHD26018
RHD26016 SCREW
28
RKQ0190-K
—
CASSETTE HOLDER
Deletion
32 RMG0410-K
—
SPACER (A) Deletion
33
RMG0411-K
—
SPACER (B) Deletion
34 XTB3+12GFY XTB3+12JFZ SCREW
35 XTW2+6S
—
SCREW Deletion
41
—
RHD20034 SCREW Addition
MECHANISM PARTS
102 RKF0334-K RYF0263-K CASSETTE HOLDER ASS’Y
102-1
—
RUS757ZA SPRING, TAPE PRESSURE
Addition
115 RGQ0121-K
—
LIFTER Deletion
123
RDG0212A
—
LIFT ARM Deletion
132 RMQ0401
—
STABILIZER
Deletion
133 RML0275A
—
LIFT GEAR
Deletion
144
RMB0324
—
SPRING, STABILIZER Deletion
— 3 —

Technics RS-AZ6 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Type	Cassette Deck
Heads	1 x Erase
Frequency Response	20Hz to 19kHz (Metal tape)
Total Harmonic Distortion	0.8%
Output	0.4V (line)
Dimensions	430 x 135 x 310 mm (W x H x D)
