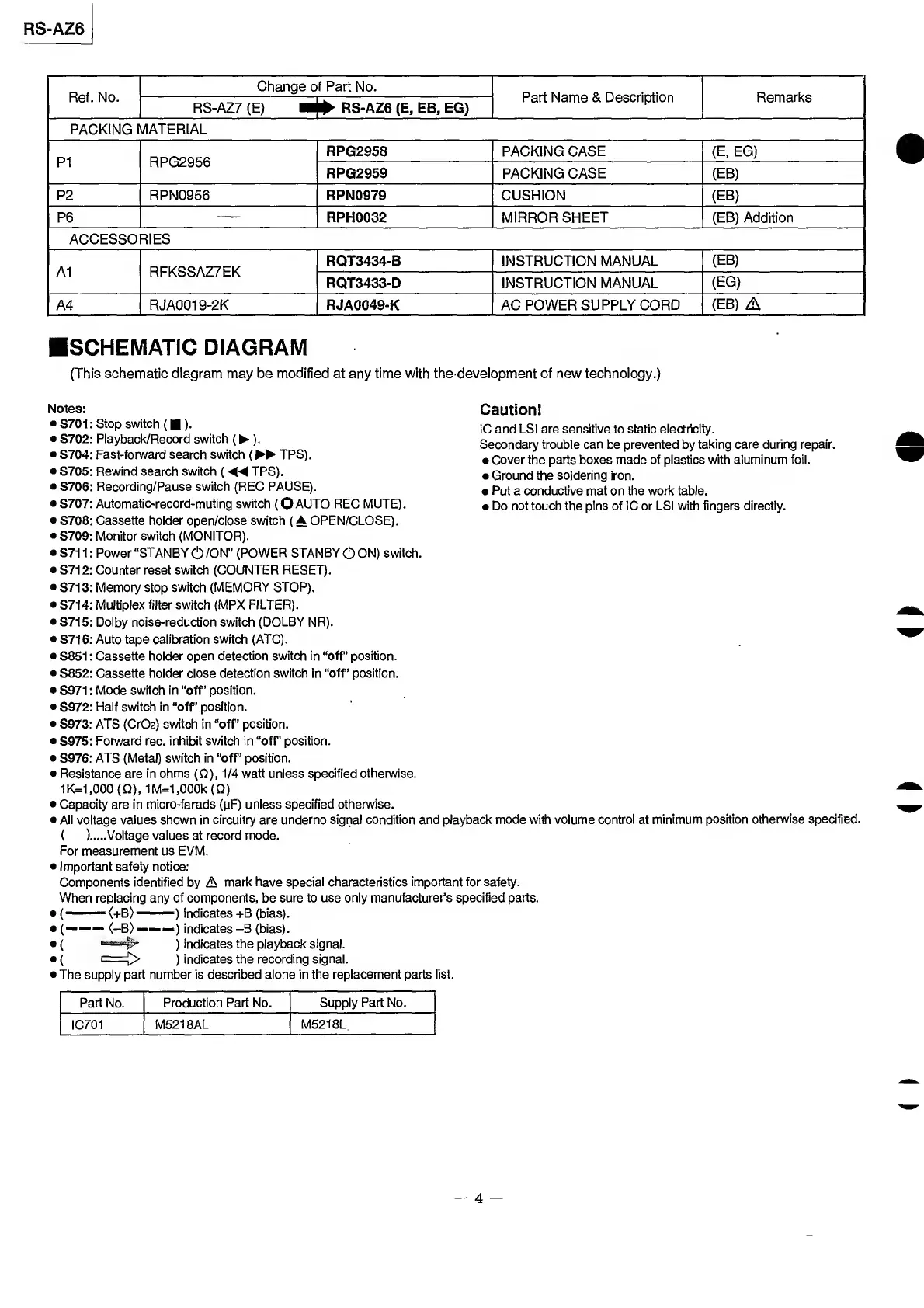

RS-AZ6
Ref.
No.
Change
of
Part
No.
Part
Name
&
Description
Remarks
RS-AZ7
(E)
m
PACKING
VIATERIAL
PI
RPG2956
RPG2958
PACKING
CASE
(E,
EG)
RPG2959
PACKING
CASE
(EB)
P2
RPN0956
RPN0979
CUSHION
(EB)
P6
RPH0032
MIRROR
SHEET
(EB)
Addition
ACCESSORIES
A1
RFKSSAZ7EK
RQT3434-B
INSTRUCTION
MANUAL
(EB)
RQT3433-D
INSTRUCTION
MANUAL
(EG)
A4
RJA0019-2K
RJA0049-K
AC
POWER
SUPPLY
CORD
(EB)
A
SCHEMATIC
DIAGRAM
(This
schematic
diagram
may
be
modified
at
any
time
with
the
development
of
new
technology.)
Notes:
Caution!
S701
.
Stop
switch
(
)•
IQ
anc
|
LSI
are
sensitive
to
static
electricity.
S702:
Playback/Record
switch
(
).
Secondary
trouble
can
be
prevented
by
taking
care
during
repair.
S704:
Fast-forward
search
switch
(
TPS).
,
Cover
the
parts
boxes
made
of
plastics
with
aluminum
foil.
S705:
Rewind
search
switch
(44
TPS).
B
Ground
the
soldering
iron.
S706:
Recording/Pause
switch
(REC
PAUSE).
#
Put
a
conductive
mat
on
the
work
table.
S707:
Automatic-record-muting
switch
(O
AUTO
REC
MUTE).
Do
not
touch
the
pins
of
1C
or
LSI
with
fingers
directly.
S708:
Cassette
holder
open/close
switch
(A
OPEN/CLOSE).
S709:
Monitor
switch
(MONITOR).
S711
:
Power
“STANBY
(!)
/ON"
(POWER
STANBY
(!)
ON)
switch.
S712:
Counter
reset
switch
(COUNTER
RESET).
S713:
Memory
stop
switch
(MEMORY
STOP).
S714:
Multiplex
filter
switch
(MPX
FILTER).
S715:
Dolby
noise-reduction
switch
(DOLBY
NR).
S71
6
:
Auto
tape
calibration
switch
(ATC).
S851
:
Cassette
holder
open
detection
switch
in
“off’
position.
S852:
Cassette
holder
close
detection
switch
in
“off’
position.
S971
:
Mode
switch
in
“off
position.
S972:
Half
switch
in
“off
position.
S973:
ATS
(CrOz)
switch
in
“off
position.
S975:
Forward
rec.
inhibit
switch
in
“off
position.
S976:
ATS
(Metal)
switch
in
“off
position.
Resistance
are
in
ohms
(Q),
1/4
watt
unless
specified
otherwise.
1K=1,000
(Q),
1M=1,000k
(Q)
Capacity
are
in
micro-farads
(pF)
unless
specified
otherwise.
All
voltage
values
shown
in
circuitry
are
underno
signal
condition
and
playback
mode
with
volume
control
at
minimum
position
otherwise
specified.
(
).Voltage
values
at
record
mode.
For
measurement
us
EVM.
Important
safety
notice:
Components
identified
by
&
mark
have
special
characteristics
important
for
safety.
When
replacing
any
of
components,
be
sure
to
use
only
manufacturer’s
specified
parts.
(-
(+B)—
)
indicates
+B
(bias).
(——
(-B)——)
indicates-B
(bias).
(
ssae|pi-
)
indicates
the
playback
signal.
(
<=[>
)
indicates
the
recording
signal.
The
supply
part
number
is
described
alone
in
the
replacement
parts
list.
Part
No.
Production
Part
No.
Supply
Part
No.
IC701
M5218AL
M5218L
