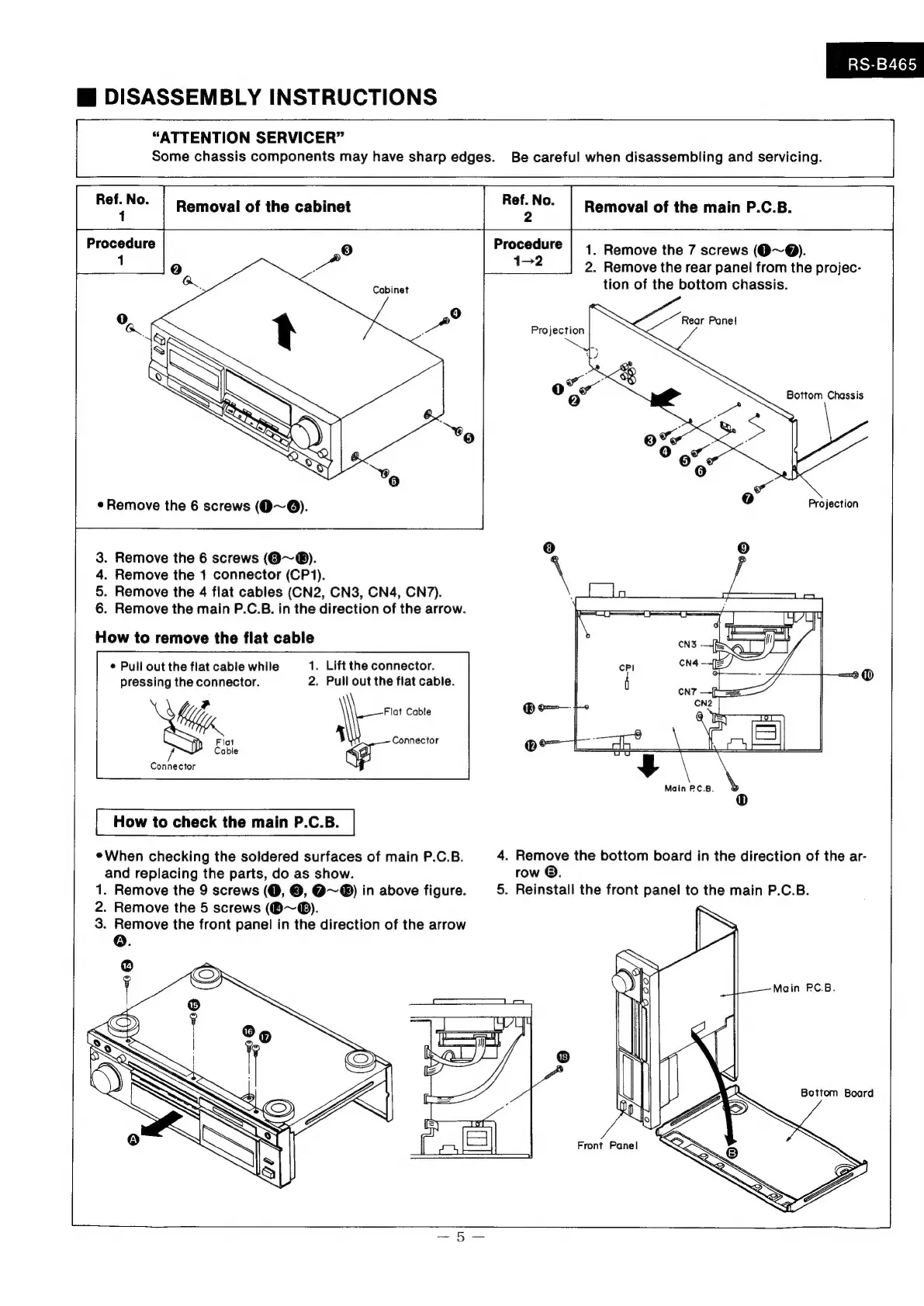

Technics RS-B465 - Disassembly Instructions; Cabinet and Main PCB Removal

RS-B465
=~)
Mi DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER”
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
Removal of the cabinet ee Removal of the main P.C.B.
3) Procedure | 1 Remove the 7 screws (@~@).
ee 1>2 2. Remove the rear panel from the projec-
tion of the bottom chassis.
Cabinet
Rear Panel
Ce Projection
w
0 Ce Bottom Chassis
0 Projection
Remove the 6 screws (9~@).
3. Remove the 6 screws (O~®).
4. Remove the 1 connector (CP1).
5. Remove the 4 flat cables (CN2, CN3, CN4, CN7).
6. Remove the main P.C.B. in the direction of the arrow.
How to remove the flat cable
¢ Pull out the flat cable while 1. Lift the connector.
pressing the connector. 2. Pull out the flat cable.
My. Flat Cable
a Connector
Flat
/ Cable ag
Connector
’
Main PC.B. »
@O
| How to check the main P.C.B.
When checking the soldered surfaces of main P.C.B. 4. Remove the bottom board in the direction of the ar-
and replacing the parts, do as show. row ©.
1. Remove the 9 screws (@, ©, @~®) in above figure. 5. Reinstall the front panel to the main P.C.B.
2. Remove the 5 screws (O~®).
3. Remove the front panel in the direction of the arrow
