Technics RS-B465 - Component and Mechanism Unit Removal

RS-B465

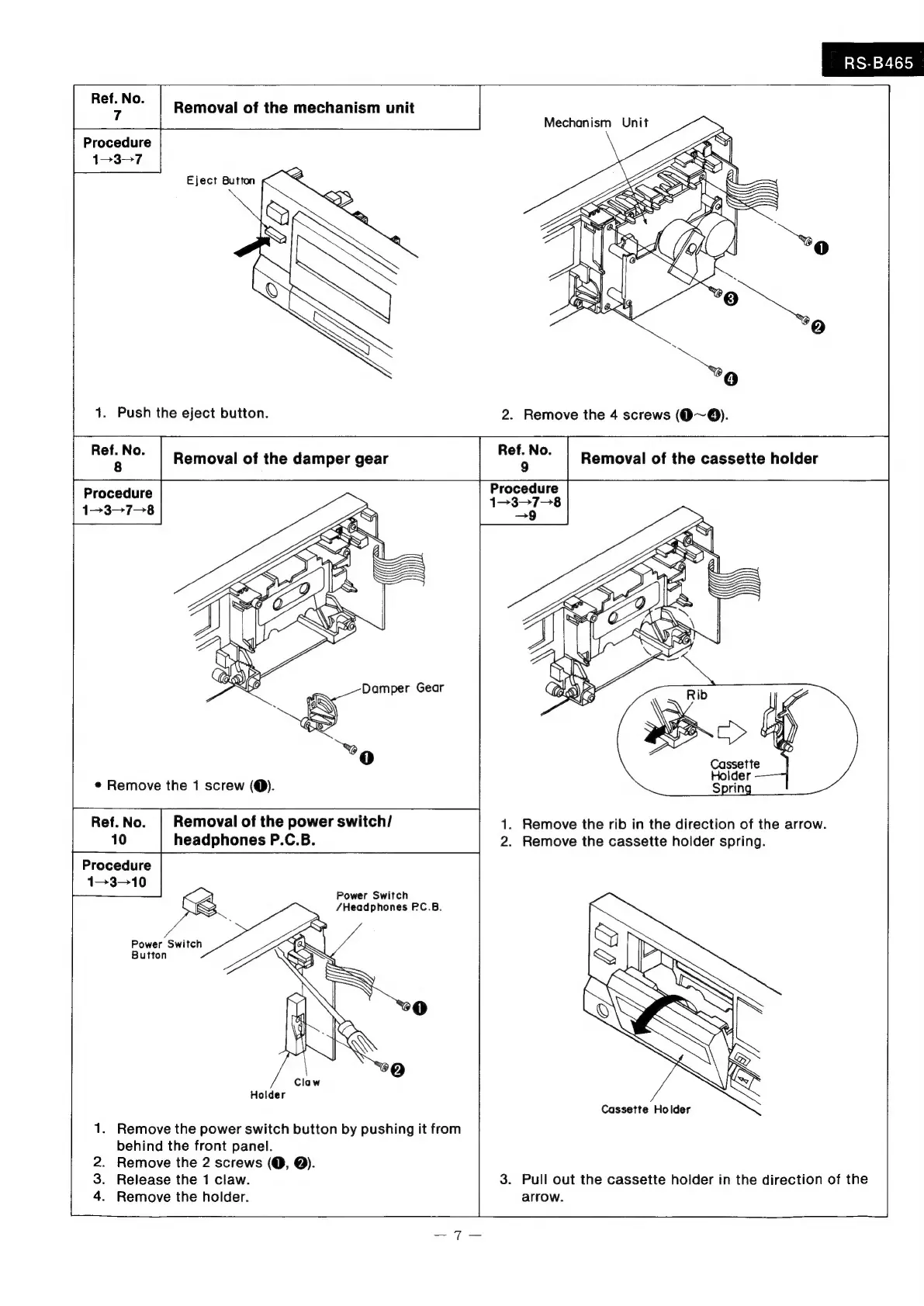

Removal of the mechanism unit
Mechanism Unit
Procedure
1-3-7
Eject Button
1.
Push
the
eject
button.
2.
Remove
the
4
screws
(O~®).
Ref. No.
Removal of the damper gear Removal of the cassette holder
Procedure
I 8
Procedure 1-3 7-8
1-3—-7-8
e Remove the 1 screw (@).
Removal of the power switch/
headphones P.C.B.
1. Remove the rib in the direction of the arrow.
2. Remove the cassette holder spring.
Procedure
1>3—-10
Power Switch
/Headphones PC.B.
Power Switch
Button
Holder
Cassette Holder
1. Remove the power switch button by pushing it from
behind the front panel.
Remove the 2 screws (@, @).
Release the 1 claw.
Remove the holder.
3. Pull out the cassette holder in the direction of the
arrow.
