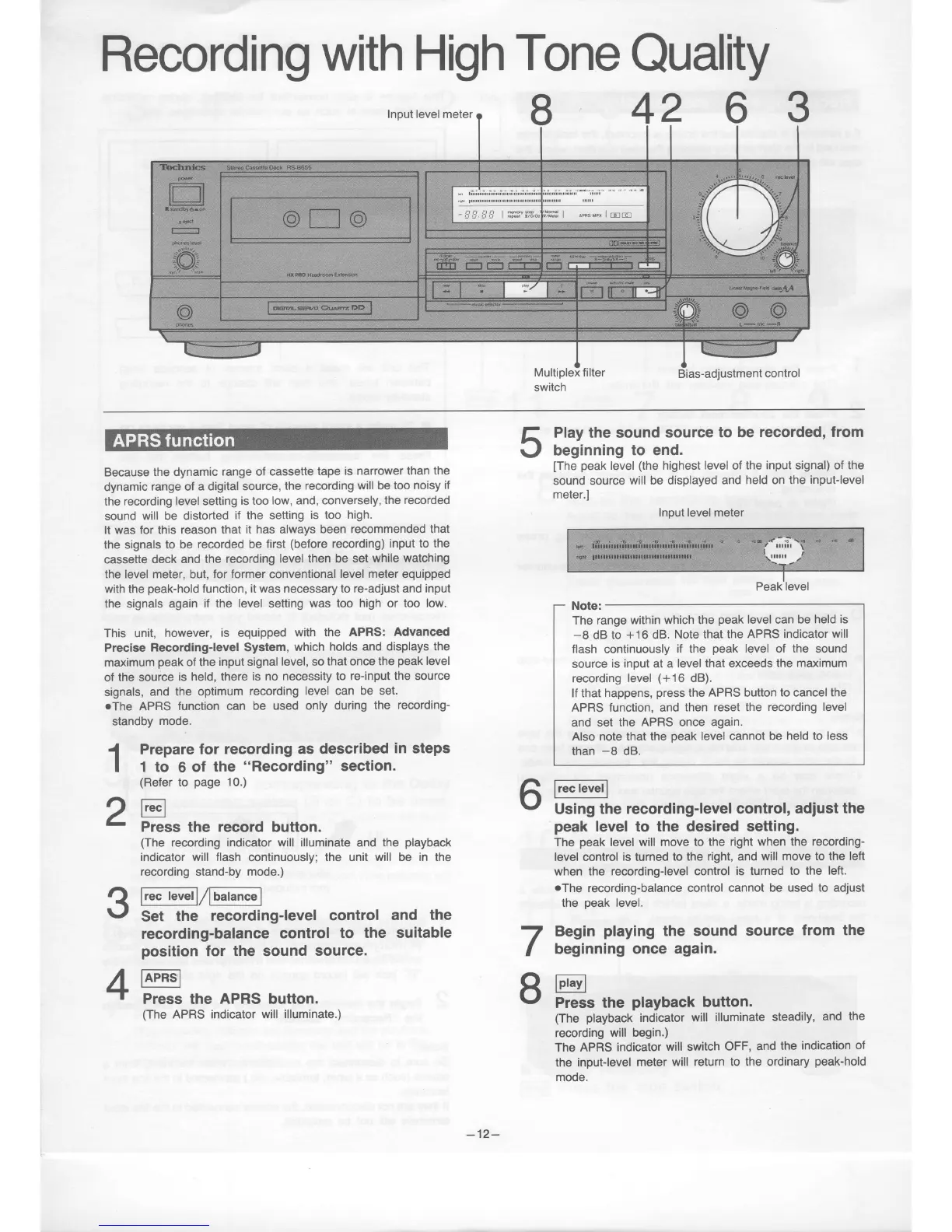

Technics RS-B655 User Manual

Recording
with
High Tone
Quality
Bias-adjustment
control
Because
the dynamic
range
of
cassette
tape is
narrower than the
dynamic
range of a digital
source,
the
recording will be
too noisy
if
the recording
level setting
is too low, and,
conversely,
the recorded
sound
will be distorted
if the setting
is too high.
It was
for this reason
that it has always
been
recommended that
the signals
to
be
recorded be
first
(before
recording)
input to the
cassette
deck
and the
recording
level then be set while
watching
the level meter, but, for former conventional
level heter
equipped
with the
peak-hold
function, it was necessary to re-adiust and
input
the signals again
if the level setting
was
too
high
or
too low.
This unit,
however,
is equipped
with the
APRS: Advanced
Precise Recording-level
System,
which
holds and displays
the
maximum
peak
of the
input
signal
level,
so
that once
the
peak
level
of
the source
is held,
there is
no necessity to
re-input the source
signals, and
the optimum
recording level can
be set.
oThe
APRS
function can
be used only
during the
recording-
standby
mode.
.l
Prepare
for recording
as described
in steps
I
t
to
6
of the
"Recording"
section.
(Refer
to
page
10.)
Play the
sound
source
to be
recorded, from
beginning
to end.
[The
peak
level
(the
highest
level
of the
input signal)
ot
the
sound source
will be displayed and
held on the
input-level
meter.l
2
E*""
the
record
button.
(The
recording indicator will illuminate and the
playback
indicator will flash
continuously;
the unit will
be
in the
recording stand-by
mode.)
|recTevel/lbarancel
Set
the
recording-level
control
and
the
recording-balance
control
to
the suitable
position
for the sound
source.
A,
lAPRsl
!
Press the APRS button.
(The
APRS indicator will illuminate.)
A
lrectevel
v
Using
the recording-level
control, adjust
the
peak
level
to
the desired
setting.
The
peak
level will move
to the right when
the recording-
level control
is
turned
to the
right,
and
will move to the
left
when the recording-level
control is turned
to the
left.
oThe
recording-balance control cannot be
used to
adjust
the
peak
level.
Begin
playing
the sound
source
from the
beginning once
again.
lp|ayl
Press the
playback
button.
(The playback
indicator
will illuminate
steadily,
and the
recording
will begin.)
The
APRS indicator
will
switch
OFF,
and
the
indication
of
the
input-level
meter
will return to the ordinary
peak-hold
mode.
7
8
Input
level meter
The range
within which the
peak
level can be
held is
-8
dB
to +16 dB.
Note that
the APRS indicator
will
flash continuously
if the
peak
level
of
the
sound
source
is input at a
level that exceeds the maximum
recording
level
(+16
dB).
lf that happens,
press
the APRS button
to
cancel
the
APRS
function, and then
reset the
recording level
and set
the APRS once
again.
Also
note
that
the
peak
level cannot be
held to less
than
-8
dB.
-12-

Technics RS-B655 Specifications

Power

power consumption	21 W
power supply frequency	50 Hz/60 Hz
power supply voltage	240 V

Audio Specifications

wow and flutter	0.05% (wRMS)
frequency response (Normal)	20 Hz-18 kHz
frequency response (CrOz)	20 Hz-18 kHz
frequency response (Metal)	20 Hz-19 kHz
S/N ratio (Dolby C NR on)	74 dB
S/N ratio (Dolby B NR on)	66 dB
S/N ratio (Dolby NR off)	56 dB

Weight and Dimensions

dimensions	430x135x290 mm
weight	4.9 kg
