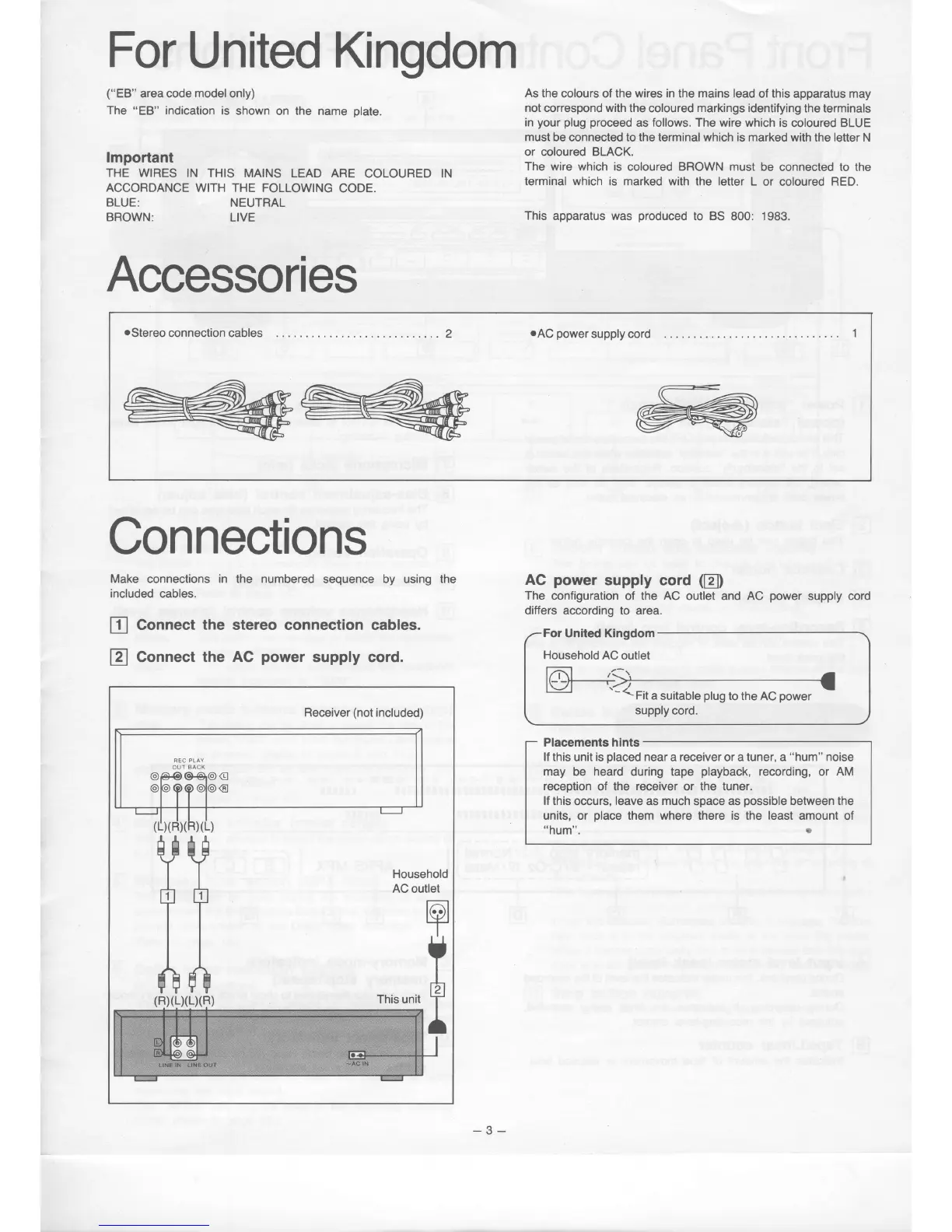

Technics RS-B655 User Manual

For
United
Kingdom
("E8"
area code
model
only)
The
"EB"
indication
is
shown on the name
plate.
lmportant
THE WIRES
IN THIS MAINS LEAD ARE
COLOURED IN
ACCORDANCE
WITH THE FOLLOWING
CODE.
BLUE:
NEUTRAL
BROWN:
LIVE
Accessories
oStereoconnectioncables
............2
.AC
power
supply cord
1
Connections
Make connections in the numbered
sequence by using the
included cables.
[]
Connect the stereo connection cables.
@
Connect the
AC
power
supply cord.
Receiver
(not
included)
Household
AC outlet
P
?
dr
I
This unil
As
the colours of the wires in the mains lead
of
this
apparatus may
not
correspond
with
the coloured markings identifying the terminals
in
your plug proceed
as follows. The wire which is
coloured BLUE
must
be connected to the terminal which is marked with the letter N
or coloured BLACK.
The
wire which is coloured BROWN must
be connected to the
terminal which is marked
wilh the letter
L or coloured
RED.
This
apparatus was
produced
to BS 800: 1983.
AC
power
supply cord
(@
The
configuration of the AC outlet and AC
power
supply cord
differs according to
area.
United Kingdom
Household
AC outlet
-
a
Fit a
suitable
plug
to
the AC
power
supply
cord.
Placements hints
lf
this unit
is
placed
near
a
receiver
or a tuner, a
"hum"
noise
may
be
heard
during
tape
playback,
recording, or AM
reception
of the receiver or the tuner.
lf this
occurs,
leave
as
much
space as
possible
between
the
units,
or
place
them where there is the least amount of
"hum".
.
-3-

Technics RS-B655 Specifications

Power

power consumption	21 W
power supply frequency	50 Hz/60 Hz
power supply voltage	240 V

Audio Specifications

wow and flutter	0.05% (wRMS)
frequency response (Normal)	20 Hz-18 kHz
frequency response (CrOz)	20 Hz-18 kHz
frequency response (Metal)	20 Hz-19 kHz
S/N ratio (Dolby C NR on)	74 dB
S/N ratio (Dolby B NR on)	66 dB
S/N ratio (Dolby NR off)	56 dB

Weight and Dimensions

dimensions	430x135x290 mm
weight	4.9 kg
