Technics RS-M7 Service Manual

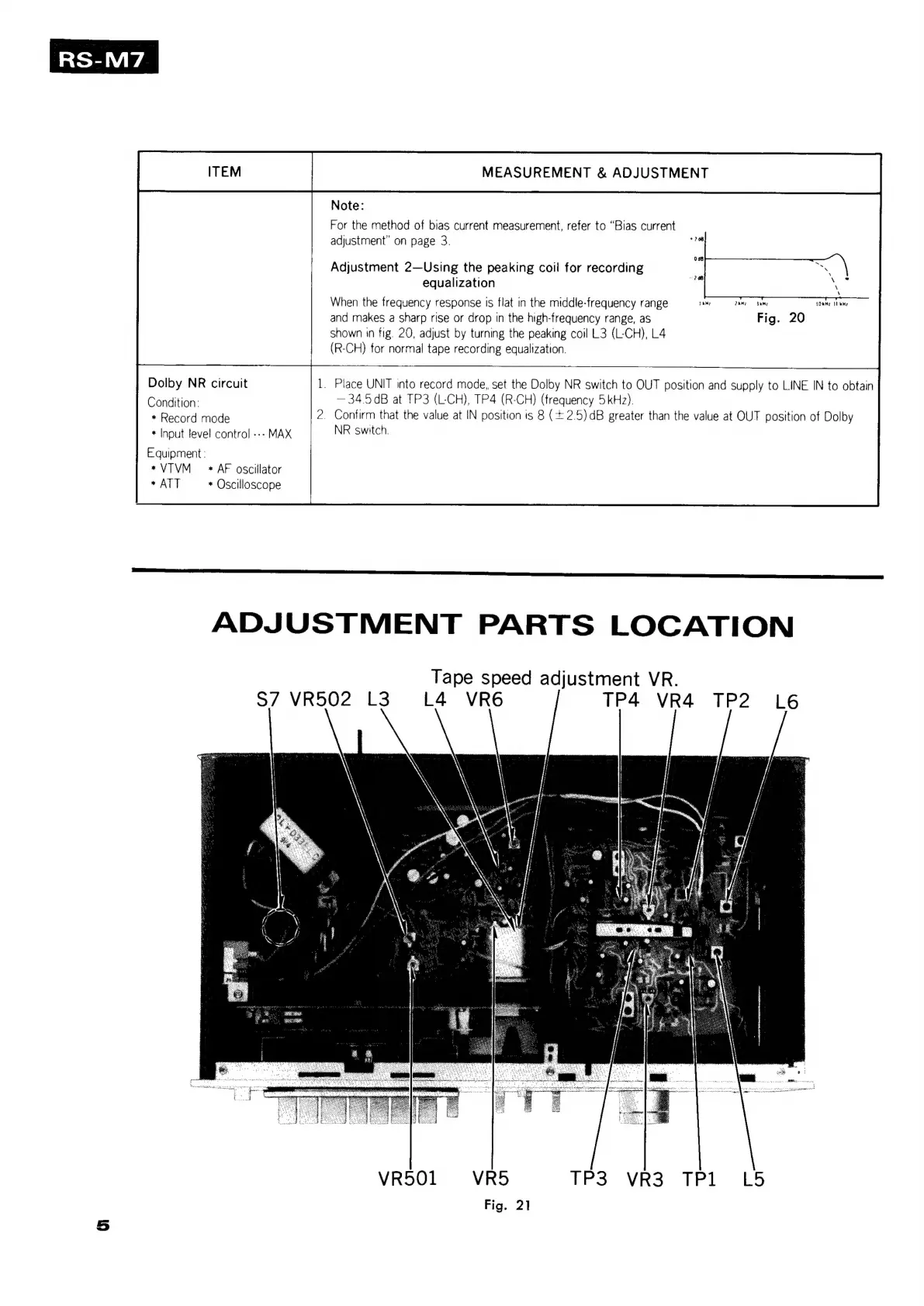

ITEM MEASUREMENT & ADJUSTMENT
Note:
For the method of bias current measurement, refer to “Bias current
adjustment” on page 3.
Adjustment 2—Using the peaking coil for recording
equalization
When the frequency response is flat in the middle-frequency range
and makes a sharp rise or drop in the high-frequency range, as Fig. 20
shown in fig. 20, adjust by turning the peaking coil L3 (L-CH), L4
(R-CH) for normal tape recording equalization.
! yam, {OmMe JI bez
. Place UNIT into record mode, set the Dolby NR switch to OUT position and supply to LINE IN to obtain
—345dB at TP3 (LCH), TP4 (R-CH) (frequency 5kHz).
2. Confirm that the value at IN position is 8 (+ 2.5) dB greater than the value at OUT position of Dolby
NR switch.
Dolby NR circuit
Condition:
* Record mode
* Input level control --- MAX
Equipment:
*VIVM_ * AF oscillator
* ATT * Oscilloscope
ADJUSTMENT
PARTS
LOCATION
Tape speed adjustment VR.
S7 VR502 L3 L4 VR6 TP4 VR4 TP2 L6
VR501 VR5 TP3 VR3 TP1 L5
Fig. 21
