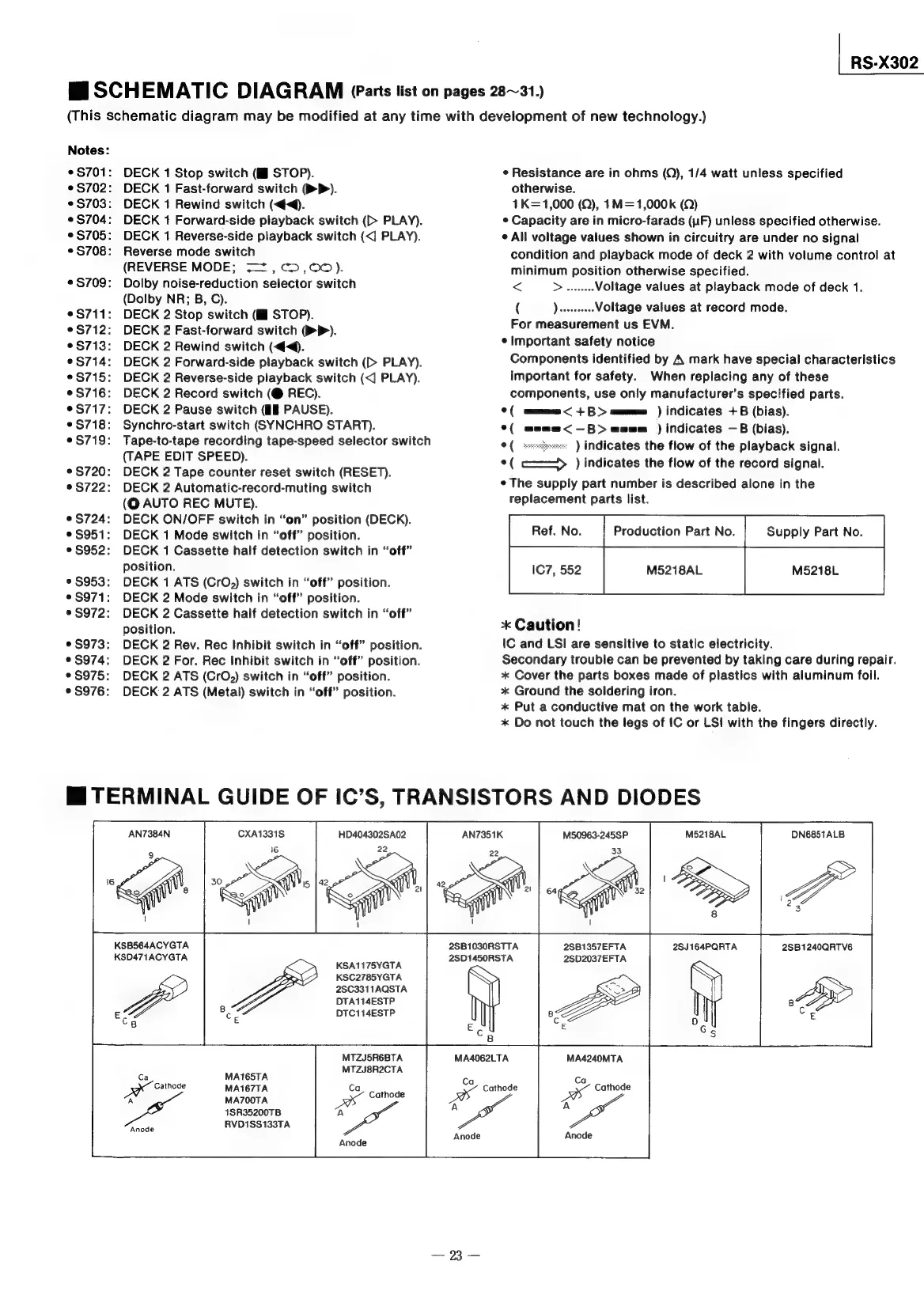

Wi SCHEMATIC DIAGRAM (Parts list on pages 28~31.)
(This schematic diagram may be modified at any time with development of new technology.)
Notes:
¢S701: DECK 1 Stop switch (@ STOP). ¢ Resistance are in ohms (Q), 1/4 watt unless specified
¢$702: DECK 1 Fast-forward switch (PP). otherwise.
¢ $703: DECK 1 Rewind switch (<<). 1K=1,000 (Q), 1M=1,000k (Q)
S704: DECK 1 Forward-side playback switch (> PLAY). ¢ Capacity are in micro-farads (uF) unless specified otherwise.
e $705: DECK 1 Reverse-side playback switch (<J PLAY). ¢ All voltage values shown in circuitry are under no signal
¢S708: Reverse mode switch condition and playback mode of deck 2 with volume control at
(REVERSE MODE; <= , 2,O0). minimum position otherwise specified.
¢S709: Dolby noise-reduction selector switch < Srccacsies Voltage values at playback mode of deck 1.
(Dolby NR; B, C). { ) Voltage values at record mode
©$711: DECK 2Stop switch STOP). KF trettetess :
°S712: DECK 2 Fast-forward switch (PP). For measurement us EVM.
°S713: DECK 2 Rewind switch (<4). ° Important safety notice
°S714: DECK 2 Forward-side playback switch (> PLAY). Components identified by A mark have special characteristics
°©S715: DECK 2 Reverse-side playback switch (<] PLAY). important for safety. When replacing any of these
©S$716: DECK 2 Record switch (@ REC). components, use only manufacturer’s specified parts.
°S717: DECK 2 Pause switch (§ PAUSE). °( __<+B> sume ) indicates +B (bias).
©$718: Synchro-start switch (SYNCHRO START). o( <—B> m=em ) indicates —B (bias).
° S719: PACE TD CpeeOL tape-speed selector switch o( «: ) indicates the flow of the playback signal.
*S720: DECK 2 Tape counter reset switch (RESET). Pe OME RNCe Metlon. of neectic: signal:
°S722: DECK 2 Automatic-record-muting switch * The supply part number is described alone in the
(O AUTO REC MUTE). replacement parts list.
©$724: DECK ON/OFF switch in “on” position (DECK).
¢ $951: DECK 1 Mode switch in “off” position. | Ret. No. | Production Part No. | Supply Part No. |
e $952: DECK 1 Cassette half detection switch in “off”
° $953: DECK 1 ATS (CrO,) switch in “off” position.
© $971: DECK 2 Mode switch in “off” position.
¢ $972: DECK 2 Cassette half detection switch in “off”
position.
*
Caution!
¢S973: DECK 2 Rev. Rec Inhibit switch in “off” position. IC and LSI are sensitive to static electricity.
©$974: DECK 2 For. Rec Inhibit switch in “off” position. Secondary trouble can be prevented by taking care during repair.
¢ $975: DECK 2 ATS (CrO,) switch in “off” position. * Cover the parts boxes made of plastics with aluminum foil.
°S976: DECK 2 ATS (Metal) switch in “off” position. * Ground the soldering iron.
* Put a conductive mat on the work table.
* Do not touch the legs of !C or LSI with the fingers directly.
Mi TERMINAL GUIDE OF IC’S, TRANSISTORS AND DIODES
KSB564ACYGTA
KSD471ACYGTA
AN7384N CXA1331S HD404302SA02
KSA1175YGTA
KSC2785YGTA
28C3311AQSTA
DTA114ESTP
DTC114ESTP
MTZJ5REBTA
MTZJBR2CTA
ge MAI65TA Ca Ca
Cathode MAt67TA Ca , a Cathode Cathode
A MA7OOTA oS eee i re
1SR35200TB A
Anibal
RVD1SS133TA
Anode
Anode
DN6851ALB
AN7351K M50963-245SP M5218AL
22
2SB1030RSTTA
2SD1450RSTA
Ca
MA4062LTA
2SB1357EFTA
2SD2037EFTA
28J164PQRTA
MA4240MTA
