RS-X30

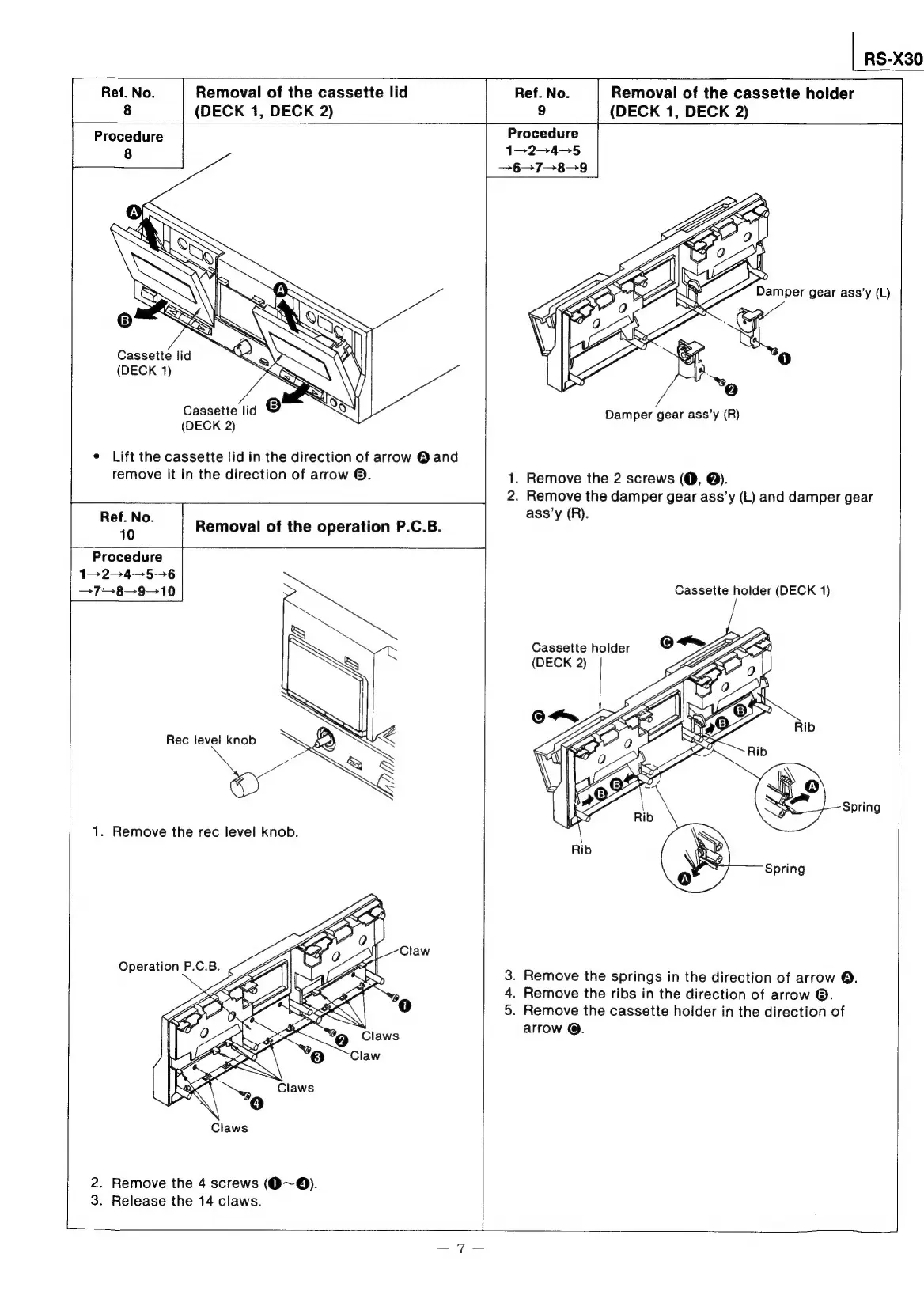

Removal of the cassette lid
Ref. No.
(DECK 1, DECK 2)
Removal of the cassette holder ==]
(DECK 1, DECK 2)
Ref. No.
9
8
b
Procedure
8
Cassette lid
(DECK 1)
Cassette lid
(DECK 2)
e Lift the cassette lid in the direction of arrow @ and
remove it in the direction of arrow ©.
Ref. No.
10 Removal of the operation P.C.B.
Procedure
1-2-4-5-6
—7-8—9-10
—
Rec aes
1. Remove the rec level knob.
YY
2. Remove the 4 screws (9~®).
3. Release the 14 claws.
Procedure
12-45
—6—-7-—8—-9
Damper gear ass’y (R)
1. Remove the 2 screws (O, @).
2. Remove the damper gear ass’y (L) and damper gear
ass’y (R).
Cassette holder (DECK 1)
Cassette holder
(DECK 2)
3. Remove the springs in the direction of arrow ®.
4. Remove the ribs in the direction of arrow ©.
5. Remove the cassette holder in the direction of
arrow @.
