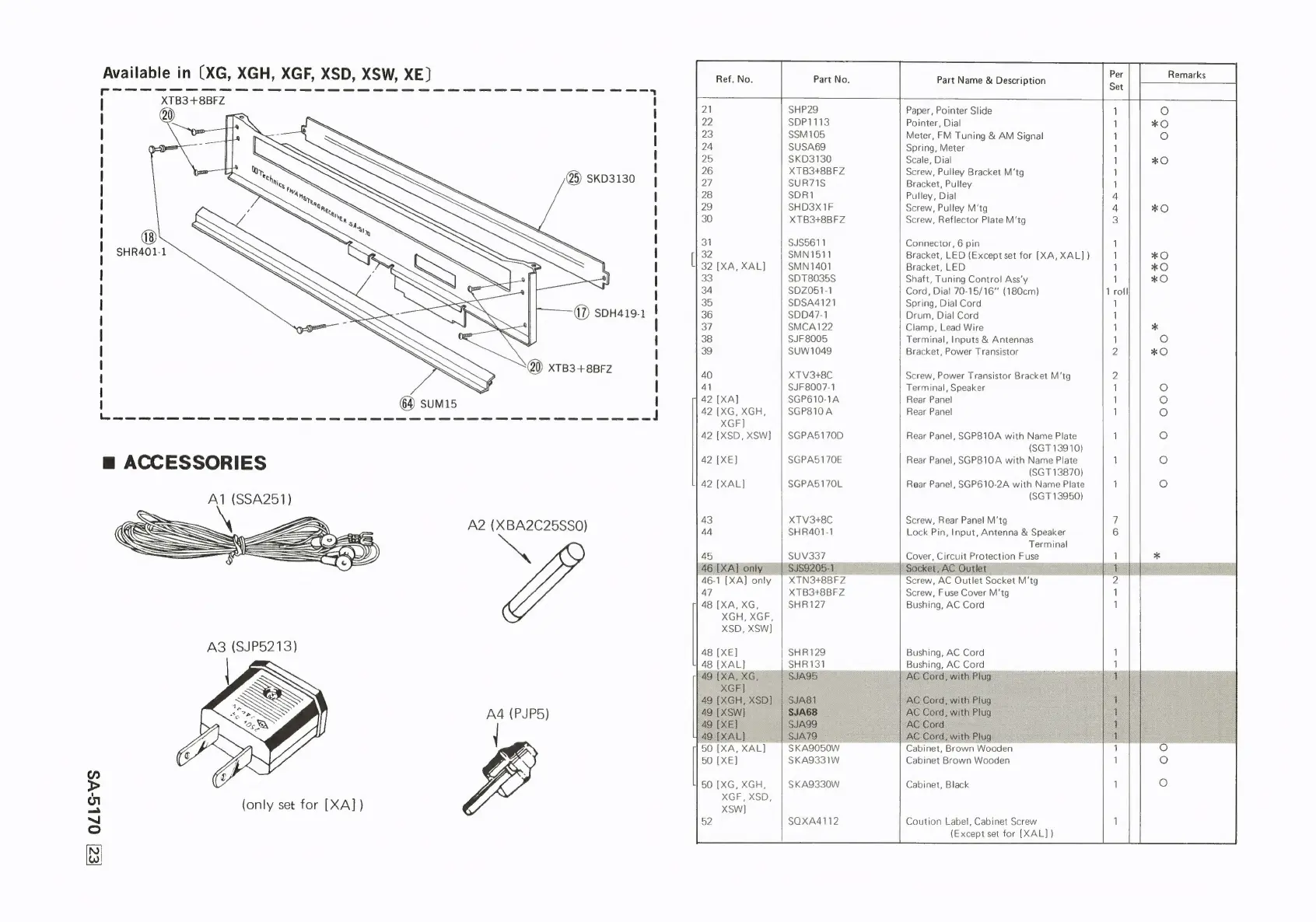

Technics SA-5170 - Page 19

Available in (XG, XGH, XGF, XSD, XSW, XE)
cattle tieeeliaeectimestianet ements iomestimetioemetiemtiomectoomstiemTeeeestiomtvencienclicene ieee tiene Items dtemetienediem iemtteete ice t Tite tat}
XTB3+8BFZ
SHR401-1
m ACCESSORIES
Al (SSA251)
[Ez] OLLG-VS
(only set for [XA])
SUM15
Ln ee ee
A2 oe
A4 (PJP5)
fp
!
1
1
|
1
1
1
1
1
1
1
1
1
1
1
1
|
1
|
l
|
1
J
ol
(Except set for [XAL])
Ref. No. Part No. Part Name & Description eS Remarks
21 SHP29 Paper, Pointer Slide 1 Oo
22 SDP1113 Pointer, Dial 1 *O
23 SSM105 Meter, FM Tuning & AM Signal 1 Oo
24 SUSA69 Spring, Meter 1
25 SKD3130 Scale, Dial 1 *O
26 XTB3+8BFZ Screw, Pulley Bracket M‘tg 1
27 SUR71S Bracket, Pulley 1
28 SDR1 Pulley, Dial 4
29 SHD3X1F Screw, Pulley M’tg 4 *O
30 XTB3+8BFZ Screw, Reflector Plate M‘tg 3
31 SJS5611 Connector, 6 pin i]
32 SMN1511 Bracket, LED (Exceptset for [XA, XAL]) 1 *O
32 [XA, XAL] SMN1401 Bracket, LED ] *O
33 SDT8035S Shaft, Tuning Control Ass'y i *O
34 SDZ051-1 Cord, Dial 70-15/16” (180cm) 1 roll
35 SDSA4121 Spring, Dial Cord 1
36 SDD47-1 Drum, Dial Cord 1
37 SMCA122 Clamp, Lead Wire i *
38 SJF8005 Terminal, Inputs & Antennas 1 e)
39 SUW1049 Bracket, Power Transistor 2 *O
40 XTV3+8C Screw, Power Transistor Bracket M'tg 2
41 SJF8007-1 Terminal, Speaker 1 (e}
42 [XA] SGP610-1A Rear Panel 1 e)
42 [XG, XGH, SGP810A Rear Panel 1 (6)
XGF]
42 [XSD, XSW] _| SGPA5170D Rear Panel, SGP810A with Name Plate 1 e)
(SGT 13910)
42 [XE] SGPA5170E Rear Panel, SGP810A with Name Plate 1 Oo
(SGT 13870)
42 [XAL] SGPA5170L Rear Panel, SGP610-2A with Name Plate 1 Oo
(SGT 13950)
43 XTV3+8C Screw, Rear Panel M'tg 7
44 SHR401-1 Lock Pin, Input, Antenna & Speaker 6
Terminal
45 SUV337 Cover, Circuit Protection Fuse 1 *
46-1 [XA] only | XTN3+8BFZ Screw, AC Outlet Socket M’tg 2
47 XTB3+8BFZ Screw, Fuse Cover M'tg 1
48 [XA, XG, SHR127 Bushing, AC Cord 1
XGH, XGF,
XSD, XSW]
48 [XE] SHR129 Bushing, AC Cord 1
48 [XAL] SHR131 Bushing, AC Cord a 1
50 [XA, XAL] | SKAQ050W Cabinet, Brown Wooden ia Gi fe)
50 [XE] SKA9331W Cabinet Brown Wooden 1 (9)
50 [XG, XGH, | SKA9330W Cabinet, Black 1 10)
XGF, XSD,
xsw]
52 SQXA4112 Coution Label, Cabinet Screw 1
