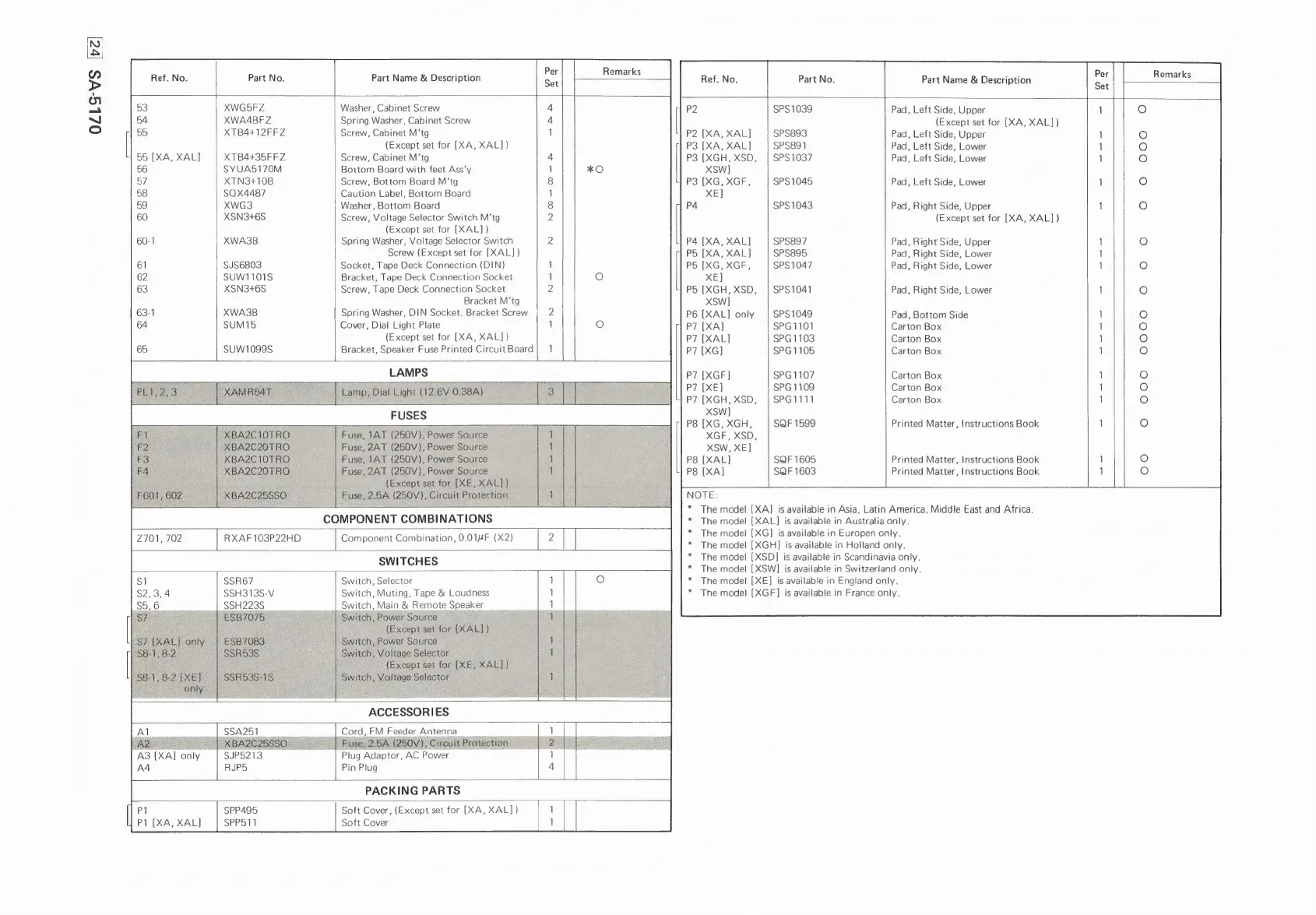

Technics SA-5170 - Page 20

OLLG-VS [tz]
Per
Remarks
Ref. No. Part No. Part Name & Description Set Part No. Part Name & Description pemarks
53 XWG5FZ Washer, Cabinet Screw 4 P2 SPS1039 Pad, Left Side, Upper O
54 XWA4BFZ Spring Washer, Cabinet Screw 4 (Except set for [XA, XAL])
55 XTB4+12FFZ Screw, Cabinet M'tg 1 P2 [XA, XAL] SPS893 Pad, Left Side, Upper Oo
(Except set for [XA, XAL]) P3 [XA, XAL] SPS891 Pad, Left Side, Lower (9)
55 [XA, XAL] XTB4+35FFZ Screw, Cabinet M'tg 4 P3 [XGH, XSD, | SPS1037 Pad, Left Side, Lower (@)
56 SYUA5170M Boitom Board with feet Ass’y 1 *O xsw]
57 XTN3+10B Screw, Bottom Board M'tg 8 P3 [XG, XGF, SPS1045 Pad, Left Side, Lower (6)
58 SQX4487 Caution Label, Bottom Board 1 XE]
59 XWG3 Washer, Bottom Board 8 P4 SPS1043 Pad, Right Side, Upper oO
60 XSN3+6S Screw, Voltage Selector Switch M'tg 2 (Except set for [XA, XAL])
(Except set for [XAL] )
60-1 XWA3B Spring Washer, Voltage Selector Switch v2 P4 [XA, XAL] SPS897 Pad, Right Side, Upper e)
Screw (Except set for [XAL]) P5 [XA, XAL] SPS895 Pad, Right Side, Lower
61 SJS6803 Socket, Tape Deck Connection (DIN) 1 P5 [XG, XGF, SPS1047 Pad, Right Side, Lower e)
62 SUW1101S Bracket, Tape Deck Connection Socket 1 @) XE]
63 XSN3+6S Screw, Tape Deck Connection Socket 2 P5 [XGH, XSD, | SPS1041 Pad, Right Side, Lower Oo
Bracket M’tg xsw]
63-1 XWA3B Spring Washer, DIN Socket. Bracket Screw 2 P6 [XAL] only SPS1049 Pad, Bottom Side Oo
64 SUM15 Cover, Dial Light Plate 1 (e) P7 [XA] SPG1101 Carton Box [@)
(Except set for [XA, XAL]) P7 [XAL] SPG1103 Carton Box (eo)
65 SUW1099S Bracket, Speaker Fuse Printed Circuit Board} 1 P7 [XG] SPG1105 Carton Box ©:
LAMPS P7 [XGF] SPG1107 Carton Box O
P7 [XE] SPG1109 Carton Box [e)
P7 [XGH, XSD, | SPG1111 Carton Box (@)]
xsw]
FUSES P8 [XG, XGH, SQF 1599 Printed Matter, Instructions Book e)
XGF, XSD,
XSW, XE]
P8 [XAL] SQF 1605 Printed Matter, Instructions Book
P8 [XA] SQF 1603 Printed Matter, Instructions Book
NOTE:
* The model [XA] is available in Asia, Latin America, Middle East and Africa.
COMPONENT COMBINATIONS * The model [XAL] is available in Australia only.
Ser * The model [XG] is available in Europen only.
O.01KF (X2 2
2701, 702 RXAF103P22HD Component Combination, MF (X2) | | * The model [XGH] is available in Holland only.
* The model [XSD] is available in Scandinavia only.
SNITCHES * The model [XSW] is available in Switzerland only.
S1 SSR67 Switch, Selector 1 fe) * The model [XE] is available in England only.
$2,3,4 SSH313S-V Switch, Muting, Tape & Loudness i * The model [XGF] is available in France only.
S5,6 SSH223S Switch, Main & Remote Speaker 1
ACCESSORIES
Al SSA251 Cord, FM Feeder Antenna 1
A3 [XA] only SJP5213 Plug Adaptor, AC Power 1
A4 RJP5 Pin Plug 4
PACKING PARTS
Pi SPP495 Soft Cover, (Except set for [XA, XAL]) 1
P1 [XA, XAL] SPP511 Soft Cover 1
