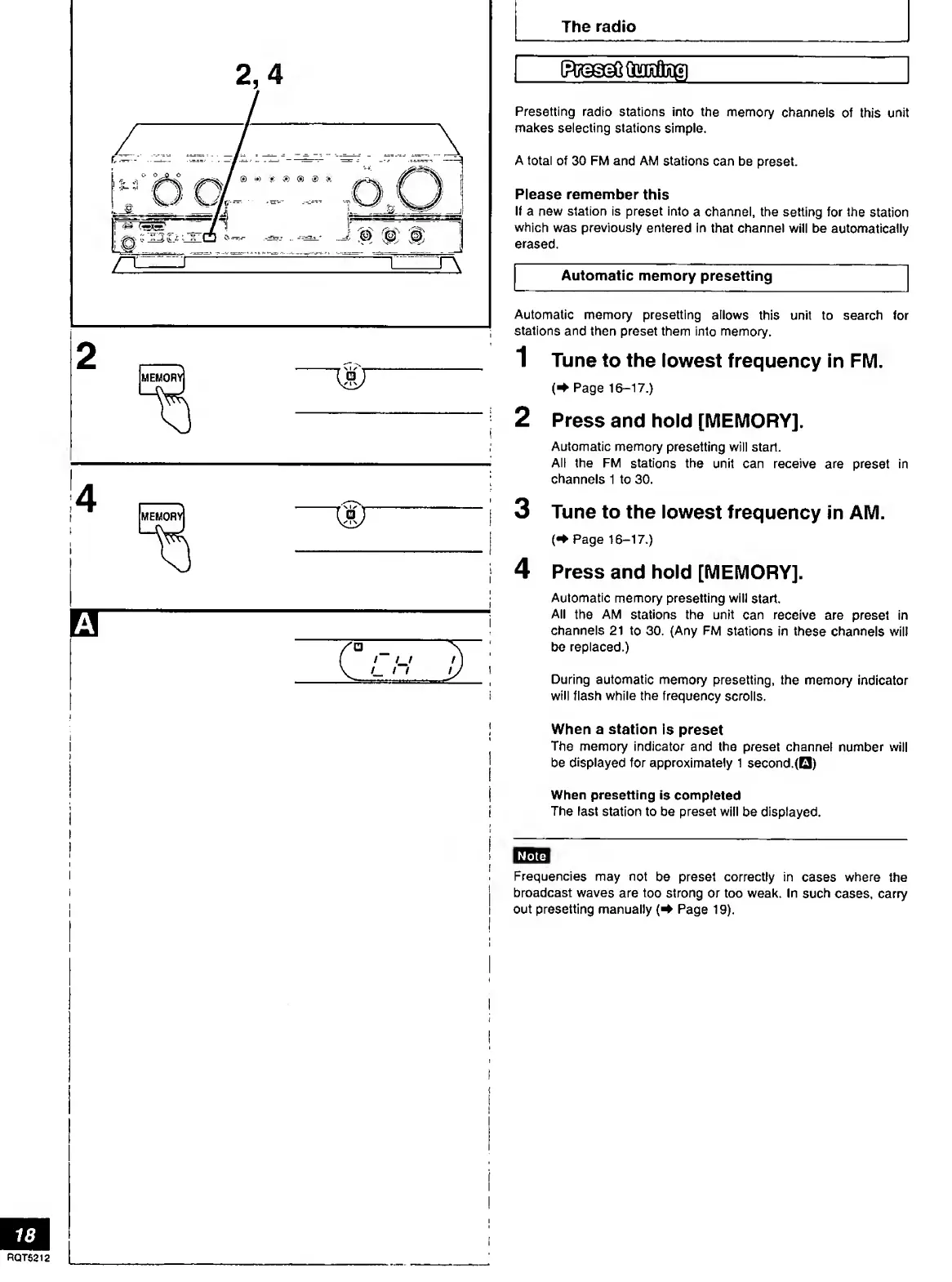

The radio
gteggStMfljpg _
Presetting radio stations into the memory channels of this unit
makes selecting stations simple.
A total of 30 FM and AM stations can be preset.
Please remember this
If a new station is preset into a channel, the setting for the station
which was previously entered in that channel will be automatically
erased.
Automatic memory presetting
2
4
i
i
Automatic memory presetting allows this unit to search for
stations and then preset them into memory.
1 Tune to the lowest frequency In FM.
(* Page 16-17.)
2 Press and hold [MEMORY].
Automatic memory presetting will start.
All the FM stations the unit can receive are preset in
channels 1 to 30.
3 Tune to the lowest frequency in AM.
Page 16-17.)
4 Press and hold [MEMORY].
Automatic memory presetting will start.
All the AM stations the unit can receive are preset in
channels 21 to 30. (Any FM stations in these channels will
be replaced.)
During automatic memory presetting, the memory indicator
will flash while the frequency scrolls.
When a station is preset
The memory indicator and the preset channel number will
be displayed for approximately 1 second. ( 0 )
When presetting is completed
The last station to be preset will be displayed.
Frequencies may not be preset correctly in cases where the
broadcast waves are too strong or too weak. In such cases, carry
out presetting manually (<4 Page 19).
18
RQT5212

Technics SA-AX540 Specifications

General

Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	150mV (line)
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.9% THD)
Impedance	8 ohms
Dimensions	430 x 158 x 370mm
Speaker Load Impedance	8Ω to 16Ω
Video Connections	Composite Video
