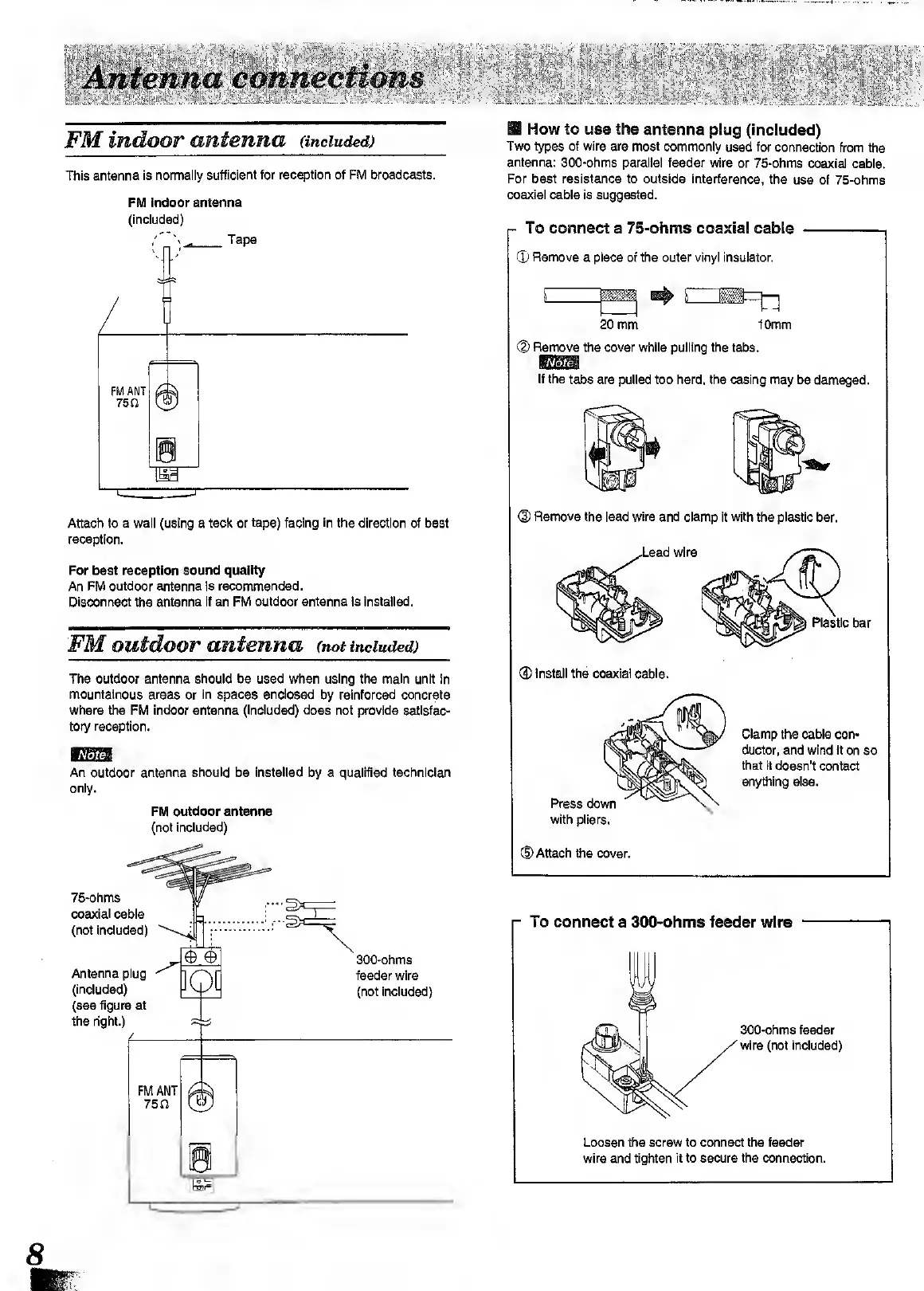

ia* nest ions
FM indoor antenna (included)
This antenna is normally sufficient for reception of FM broadcasts.
FM Indoor antenna
(included)
Attach to a wail (using a tack or tape) facing in the direction of best
reception.
For best reception sound quality
An FM outdoor antenna is recommended.
Disconnect the antenna if an FM outdoor antenna is installed.
FM outdoor antenna (not included)
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide satisfac¬
tory reception.
An outdoor antenna should be installed by a qualified technician
only.
FM outdoor antenna
(not included)
H How to use the antenna plug (included)
Two types of wire are most commonly used for connection from the
antenna: 300-ohms parallel feeder wire or 75-ohms coaxial cable.
For best resistance to outside interference, the use of 75-ohms
coaxial cable is suggested.
(D Remove a piece of the outer vinyl insulator.
20 mm 10mm
(5) Remove the cover while pulling the tabs.
If the tabs are pulled too hard, the casing may be damaged.
d) Remove the lead wire and clamp it with the plastic bar.
Lead wire
Plastic bar
@ install the coaxial cable.
Clamp the cable con¬
ductor, and wind it on so
that it doesn’t contact
anything else.
(§) Attach the cover.
r To connect a 300-ohms feeder wire
Loosen the screw to connect the feeder
wire and tighten it to secure the connection.
