Technics SA-EX500 User Manual

AM outdoor antenna (not included)

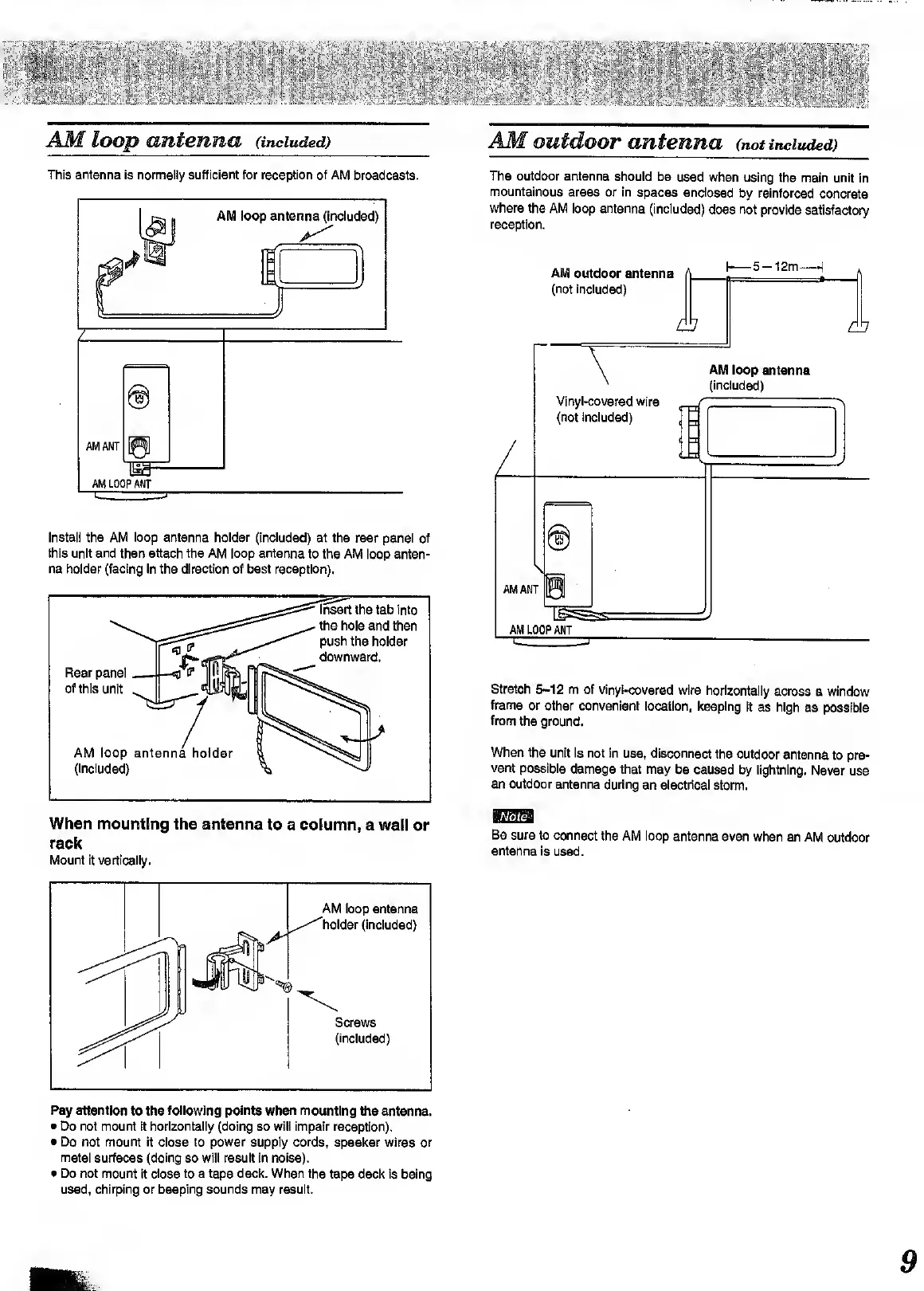

AM loop antenna (included)
This antenna is normally sufficient for reception of AM broadcasts.
Install the AM loop antenna holder (included) at the rear panel of
this unit and then attach the AM loop antenna to the AM loop anten¬
na holder (facing in the direction of best reception).
rack
Mount it vertically.
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM loop antenna (included) does not provide satisfactory
reception.
AM outdoor antenna A
(not included)
&
■ 5 —12m—|
Vinyl-covered wire
(not included)
AM loop antenna
(included)
AM ANT
AM LOOP ANT
Stretch 5-12 m of vinyl-covered wire horizontally across a window
frame or other convenient location, keeping it as high as possible
from the ground.
When the unit is not in use, disconnect the outdoor antenna to pre¬
vent possible damage that may be caused by lightning. Never use
an outdoor antenna during an electrical storm.
Be sure to connect the AM loop antenna even when an AM outdoor
antenna is used.
Pay attention to the following points when mounting the antenna.
• Do not mount it horizontally (doing so will impair reception).
• Do not mount it close to power supply cords, speaker wires or
metal surfaces (doing so will result in noise).
• Do not mount it close to a tape deck. When the tape deck is being
used, chirping or beeping sounds may result.
