Technics SA-GX550 Service Manual

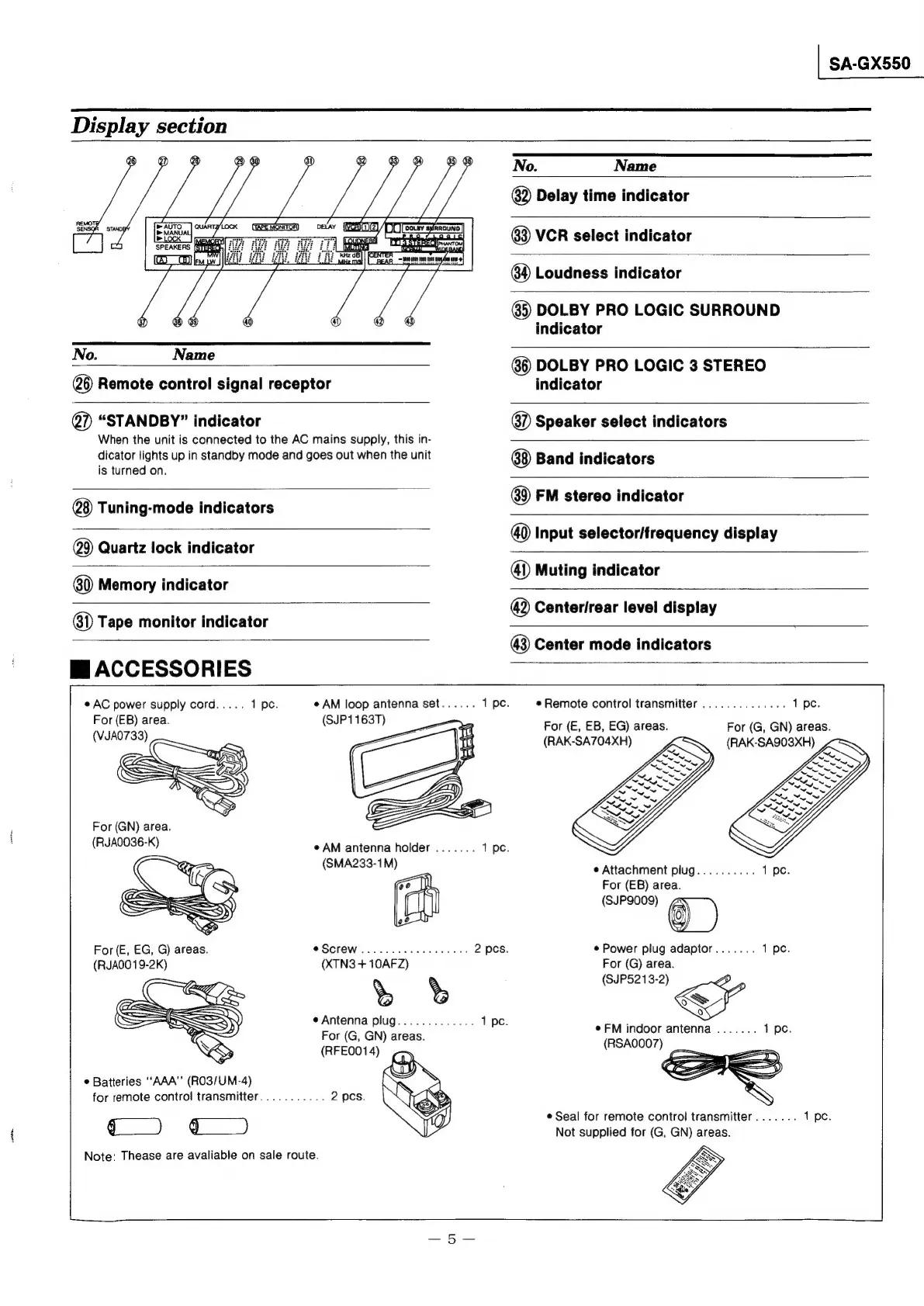

Display section
No.
Name
(26) Remote control signal receptor
Q@?) “STANDBY” indicator
When the unit is connected to the AC mains supply, this in-
dicator lights up in standby mode and goes out when the unit
is turned on.
Tuning-mode indicators
(29) Quartz lock indicator
Memory indicator
Gi) Tape monitor indicator
SA-GX550
No. Name
@2) Delay time indicator
@3) VCR select indicator
Loudness indicator
85) DOLBY PRO LOGIC SURROUND
indicator
DOLBY PRO LOGIC 3 STEREO
indicator
6?) Speaker select indicators
Band indicators
FM stereo indicator
Input selector/frequency display
Muting indicator
@ Centerlrear level display
Center mode indicators
¢ AC power supply cord..... 1 pe. ¢ AM loop antenna set...... 1 pe. ¢ Remote control transmitter .............. 1 pe.
For (EB) area. (SJP1163T) For (E, EB, EG) areas. For (G, GN) areas.
For (GN) area.
(RJAO036-K)
AM antenna holder ....... 1 pe.
(SMA233-1M)
For (E, EG, G) areas. *SCMOWises hehehe 2 pcs
(RJAO019-2K) (XTN3 + 10AFZ)
Antenna plug............. 1 pe.
For (G, GN) areas.
(RFE0014)
¢ Batteries ““AAA’’ (RO3/UM-4)
for remote control transmitter
Note: Thease are avaliable on sale route.
(RAK-SA704XH) (RAK-SA903XH)
e Attachment plug.......... 1 pe.
For (EB) area.
(SUP9009) 4X
@
Cy)
¢ Power plug adaptor....... 1 pe.
For (G) area.
(SJUP5213-2)
¢ Seal for remote control transmitter
Not supplied for (G, GN) areas.
a
