Technics SA-GX550 Service Manual

SA-GX550

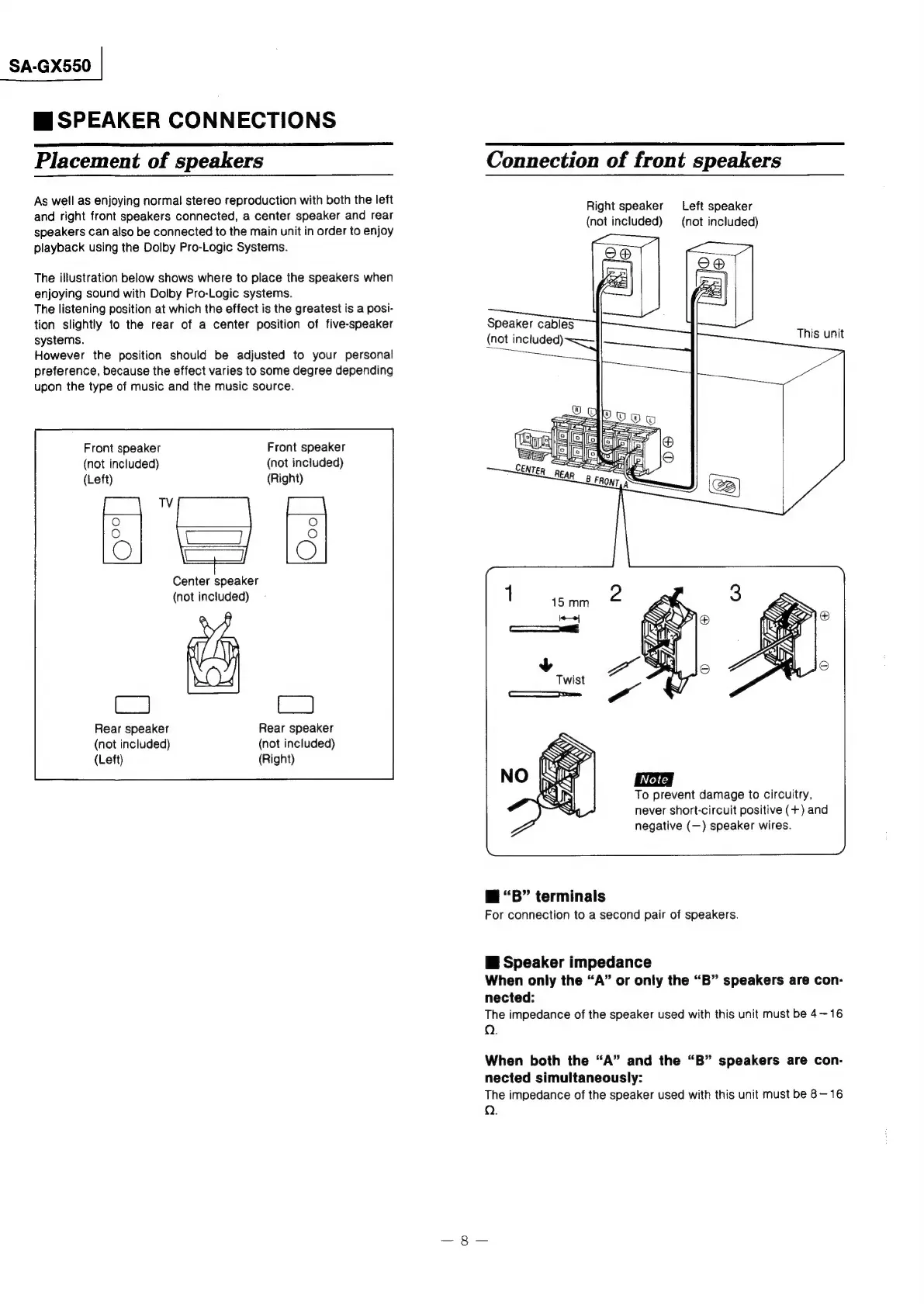

Mi SPEAKER CONNECTIONS
Placement of speakers
As well as enjoying normal stereo reproduction with both the left
and right front speakers connected, a center speaker and rear
speakers can also be connected to the main unit in order to enjoy
playback using the Dolby Pro-Logic Systems.
The illustration below shows where to place the speakers when
enjoying sound with Dolby Pro-Logic systems.
The listening position at which the effect is the greatest is a posi-
tion slightly to the rear of a center position of five-speaker
systems.
However the position should be adjusted to your personal
preference, because the effect varies to some degree depending
upon the type of music and the music source.
Front speaker Front speaker
(not included) (not included)
(Left) (Right)
a = ig
=,
\_, _J
Center speaker
(not included)
Ee Gal
Rear speaker Rear speaker
(not included) (not included)
(Left)
(Right)
Connection of front speakers
Right speaker Left speaker
(not included) (not included)
Speaker cables
(not
included)
This
unit
To prevent damage to circuitry,
never short-circuit positive (+) and
negative (—) speaker wires.
@ “B” terminals
For connection to a second pair of speakers.
i Speaker impedance
When only the “A” or only the “B” speakers are con-
nected:
The impedance of the speaker used with this unit must be 4— 16
Q.
When both the “A” and the “B” speakers are con-
nected simultaneously:
The impedance of the speaker used with this unit must be 8— 16
Q.
