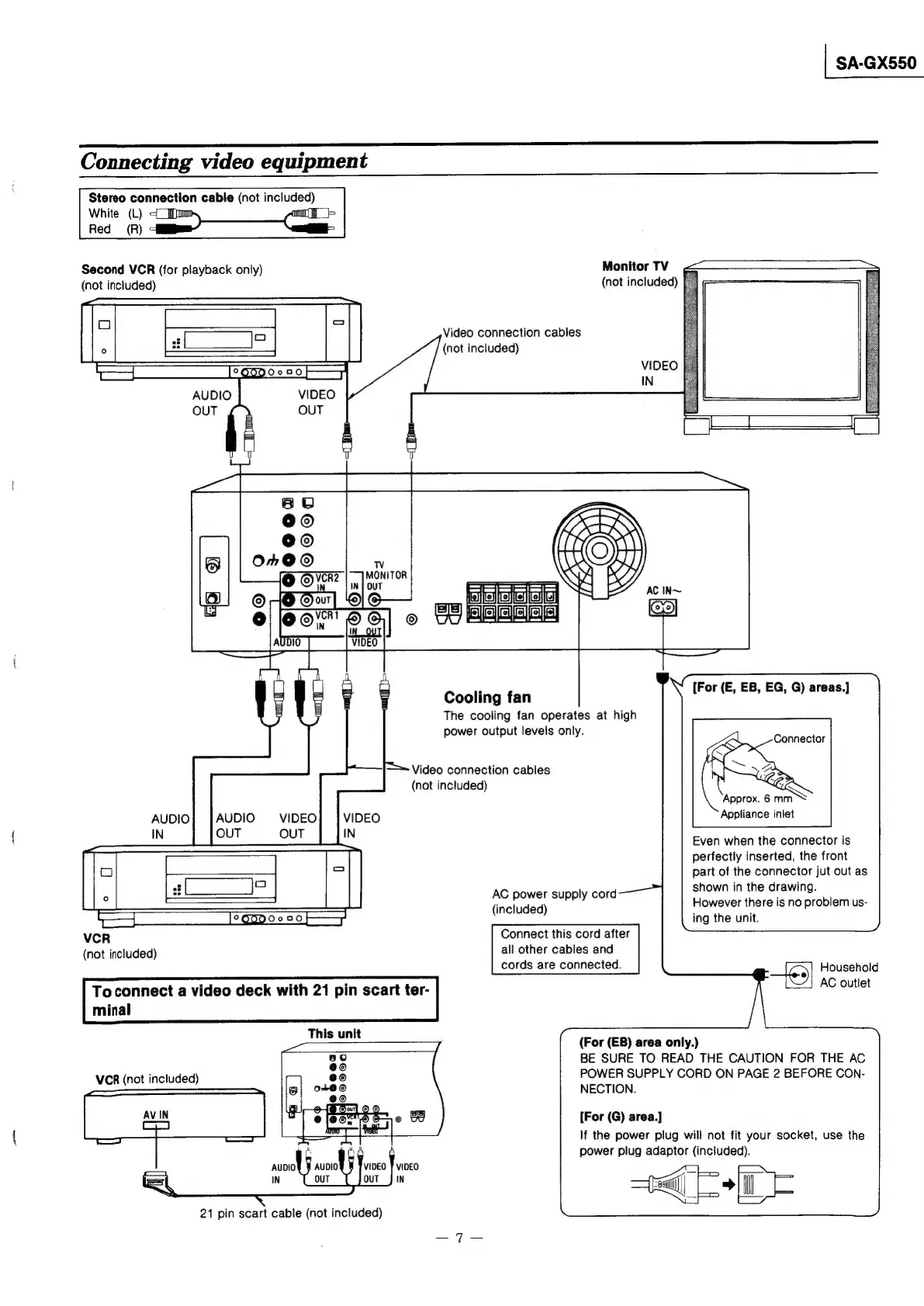

Connecting video equipment
Stereo connection cable (not included)
Red (R)
Second
VCR
(for
playback
only)
Monitor
TV
(not
included)
(not
included)
Video connection cables
(not included)
Cooling fan
The cooling fan operates at high
power output levels only.
Video connection cables
(not included)
Approx. 6 mms
Appliance inlet
AUDIO VIDEO
OUT OUT
ggp00c0;—y
AUDIO
IN
Even when the connector is
perfectly inserted, the front
part of the connector jut out as
shown in the drawing.
However there is no problem us-
ing the unit.
AC power supply cord
(included)
VCR
(not
included)
all
other
cables
and
cords are connected.
Connect this cord after
Household
AC outlet
(For (EB) area only.)
BE SURE TO READ THE CAUTION FOR THE AC
POWER SUPPLY CORD ON PAGE 2 BEFORE CON-
NECTION.
[For (G) area.]
If the power plug will not fit your socket, use the
power plug adaptor (included).
(i
21 pin scart cable (not included)
