Technics SC-EH560

Before use
RQT5355
8

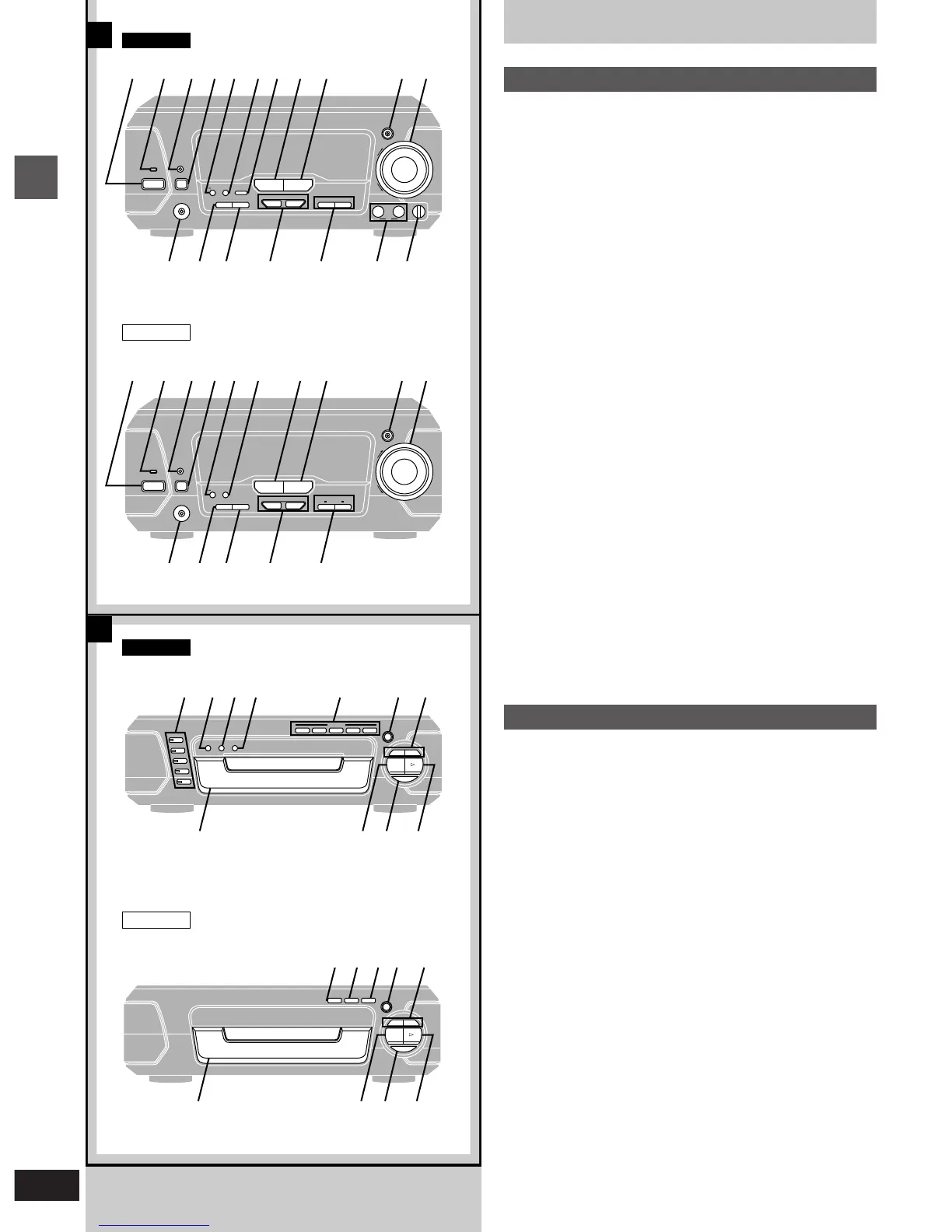

Front panel controls
»
A
Tuner amplifier
1 Standby/on switch (ê/I) . . . . . . . . . . . . . . . . . . . . . . 11, 34, 35
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
2 Standby indicator (ê)
When the unit is connected to the AC mains supply, this indicator
lights up in standby mode and goes out when the unit is turned on.
3 Play timer/record timer button and indicator
(FPLAY/FREC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 35
4 ECO mode button (MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Clock/timer, demo button
(CLOCK/TIMER, –DEMO) . . . . . . . . . . . . . . . . . . . . .11, 34–36
6 FM mode button (FM AUTO/MONO) . . . . . . . . . . . . . . . . . . 16
7 [SC-EH760]
6ch discrete input button (6CH DISCRETE INPUT) . . . . . . 24
8 Source input button (INPUT SELECTOR) . . . . . . . . . . . . . . 39
9 Tuner/band button (TUNER/BAND) . . . . . . . . . . . . . . . . . . . 16
: [SC-EH760]
Digital super woofer button and indicator
(DIGITAL S.WOOFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
[SC-EH560]
Super woofer button and indicator (S.WOOFER) . . . . . . . 21
; Volume control (VOLUME) . . . . . . . . . . . . . . . . . . . . 12, 16, 18
< Headphone jack (PHONES) . . . . . . . . . . . . . . . . . . . . . . . . . 37
= Tuning mode button (TUNING MODE) . . . . . . . . . . . . . . . . 16
> Set button (SET) . . . . . . . . . . . . . . . . . . . . . . . . . 11, 17, 34, 35
? Tuning buttons (X, W TUNING) . . . . . . . . . . . . . 11, 16, 34, 35
@ [SC-EH760\for\areas\except\Australia\and\N.Z.]
[SC-EH560\for\areas\except\United\Kingdom]
RDS display mode buttons
(RDS, PS–DISP MODE–PTY) . . . . . . . . . . . . . . . . . . . . . . . . 16
[SC-EH760\for\Australia\and\N.Z.]
KARAOKE and echo buttons (KARAOKE, ECHO) . . . . . . 40
A [SC-EH760\for\Australia\and\N.Z.]
Microphone jacks (MIC, 1, 2) . . . . . . . . . . . . . . . . . . . . . . . . 40
B [SC-EH760\for\Australia\and\N.Z.]
Microphone volume control (MIC VOL) . . . . . . . . . . . . . . . 40
»
B
CD changer/CD player
C [SC-EH760]
Disc select buttons and indicators (DISC, 1–5) . . . . . . . . . 12
Green: Indicates that the tray is ready to play its CD or to be
opened.
D Random play button (RANDOM) . . . . . . . . . . . . . . . . . . . . . 15
E Repeat button (REPEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F CD edit button (EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
G [SC-EH760]
Disc direct open buttons
(DIRECT OPEN, DISC 1– DISC 5) . . . . . . . . . . . . . . . . . . . . . 12
H Disc tray open/close button (< OPEN/CLOSE) . . . . . . . . . 12
I Skip/search buttons (4, 5) . . . . . . . . . . . . . . 13
J Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
K Stop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
L Pause button (;) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
M Play button and indicator (!) . . . . . . . . . . . . . . . . . . . . 12, 32
The color of the indicator depends on the operation taking place.
If stopped: orange
If playing: green
If paused: flashes
B
1 2
MIC
MIC
MIN MAX
VOL
H
H/I
MODE
? TUNING @
PHONES
TUNING MODE SET KARAOKE ECHO
INPUT SELECTOR TUNER/BAND
DIGITAL
S.WOOFER
VOLUME
UP
DOWN
FM AUTO/
MONO
6CH
DISCRETE INPUT
œ PLAY /œ REC
CLOCK/TIMER
@ DEMO
5 67 8 9 ;:3 41 2
< = > B? @ A
H
H/I
MODE
? TUNING @
PHONES
TUNING MODE SET
INPUT SELECTOR TUNER/BAND
VOLUME
UP
DOWN
FM AUTO/
MONO
œ PLAY /œ REC
CLOCK/TIMER
@ DEMO
5 6 8 9 ;:3 41 2
< = > ?


1
DISC
RANDOM
2
3
4
5
DISC 1 DISC 2
DIRECT OPEN
DISC 3 DISC 4 DISC 5
OPEN / CLOSE
»
M N
g
E
REPEAT EDIT
RANDOM REPEAT EDIT
OPEN / CLOSE
»
M N
g
E
SC-EH760
SC-EH760
SC-EH560
SC-EH560
C GD FE H
J K ML
I
D FE H
J K ML
I
A
S.WOOFER
DISP MODE
RDS
PTYPS
@
