Before use

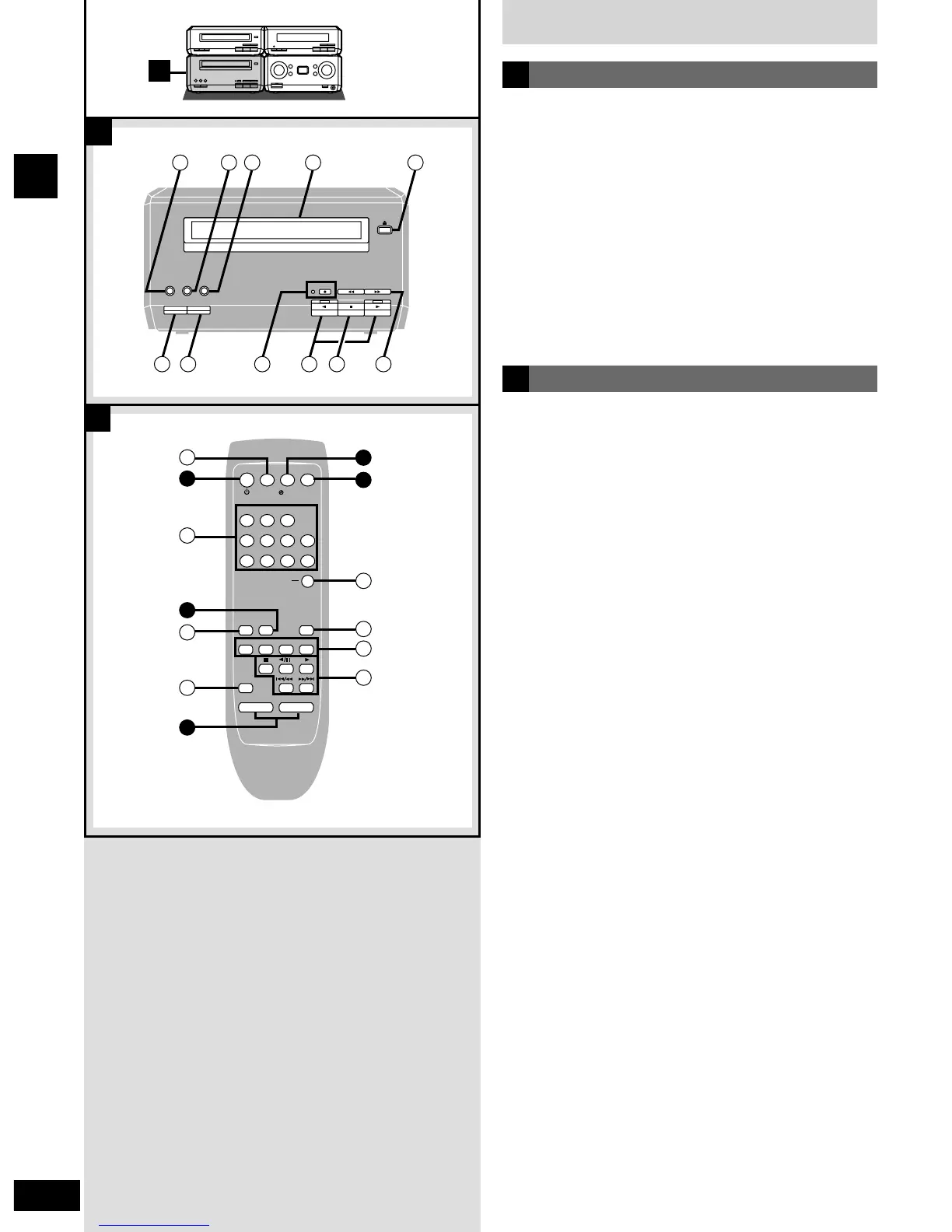

Front panel controls
Remote control
Buttons w, e, !1, !3, and @1 function in the same way as the
controls on the main unit.
##88
Sleep timer button (SLEEP)...................................................24
##99
Numbered buttons..................................................................13
$$00
Play mode button (PLAY MODE).....................................17, 18
$$11
Muting button (MUTING) ........................................................26
$$22
Cancel button (CANCEL) .......................................................18
$$33
FM mode button (AUTO/MONO)............................................12
$$44
Input select buttons
(CD, TAPE, EXT, TUNER) .....................................12, 15, 16, 25
$$55
Basic operating buttons
Function changes according to the source.
B
A
COUNTER RESET
REC PAUSE
(
TPS
)
DOLBY NR REV MODE TPS SKIP
OPEN/CLOSE
27 28 29 30 31
3635 373432 33
SLEEP
PLAY/
REC
CLOCK/
TIMER
PLAY MODE REPEAT AUTO/MONO
CD TAPE EXT TUNER
MUTING
VOLUME
CANCEL
+
–
123
456
≥10
7890
38
42
43
44
45
13
3
2
21
39
40
41
11
A
B
Cassette deck
@@77
Dolby noise reduction button (DOLBY NR)..........................14
@@88
Reverse mode select button (REV MODE) ...........................14
@@99
Tape Program Sensor button (TPS SKIP) ............................15
##00
Cassette holder
##11
Cassette tray open/close button (; OPEN/CLOSE) ............14
##22
Counter button (COUNTER)...................................................19
##33
Counter reset button (RESET)...............................................14
##44
Record pause button and indicator (* REC PAUSE)..........20
##55
Playback buttons and indicators (w , q) ..............................14
The color of the indicator depends on the operation taking place.
If stopped, fast forwarding or rewinding: orange
If playing, recording, or carrying out TPS: green
##66
Stop button ( g ) .....................................................................14
##77
Fast forward/rewind buttons [t (TPS) y].......................15
