Before use
Connector
Approx. 6 mm
Appliance inlet
Basic connections for supplied
accessories
1 Flat cables.
Keep the cables as flat as possible against the back of the
unit.
2 FM antenna.
Fix the other end of the antenna where reception is best.
3 AM loop antenna.
Keep loose antenna cord away from other wires and cords.
4 Speaker cables.
Connect the cables to the terminals of the same color.
The illustration shows connection for the right speaker.
Connect the left speaker in the same way.
HF: High Frequency
LF: Low Frequency
¡To prevent damage to circuitry, never short-circuit positive
(+) and negative (–) speaker wires.
¡Be sure to connect only positive (red or gray) wires to
positive (+) terminals and negative (black or blue) wires to
negative (–) terminals.
Incorrect connection can damage unit.
Use only the supplied speakers.
The combination of the system and the front speakers
provides the best sound. Using other speakers can damage
the unit and sound quality will be negatively affected.
Note
(United Kingdom only)
BE SURE TO READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 4 BEFORE PROCEEDING TO
STEP 5.
5 Connect the AC mains lead.

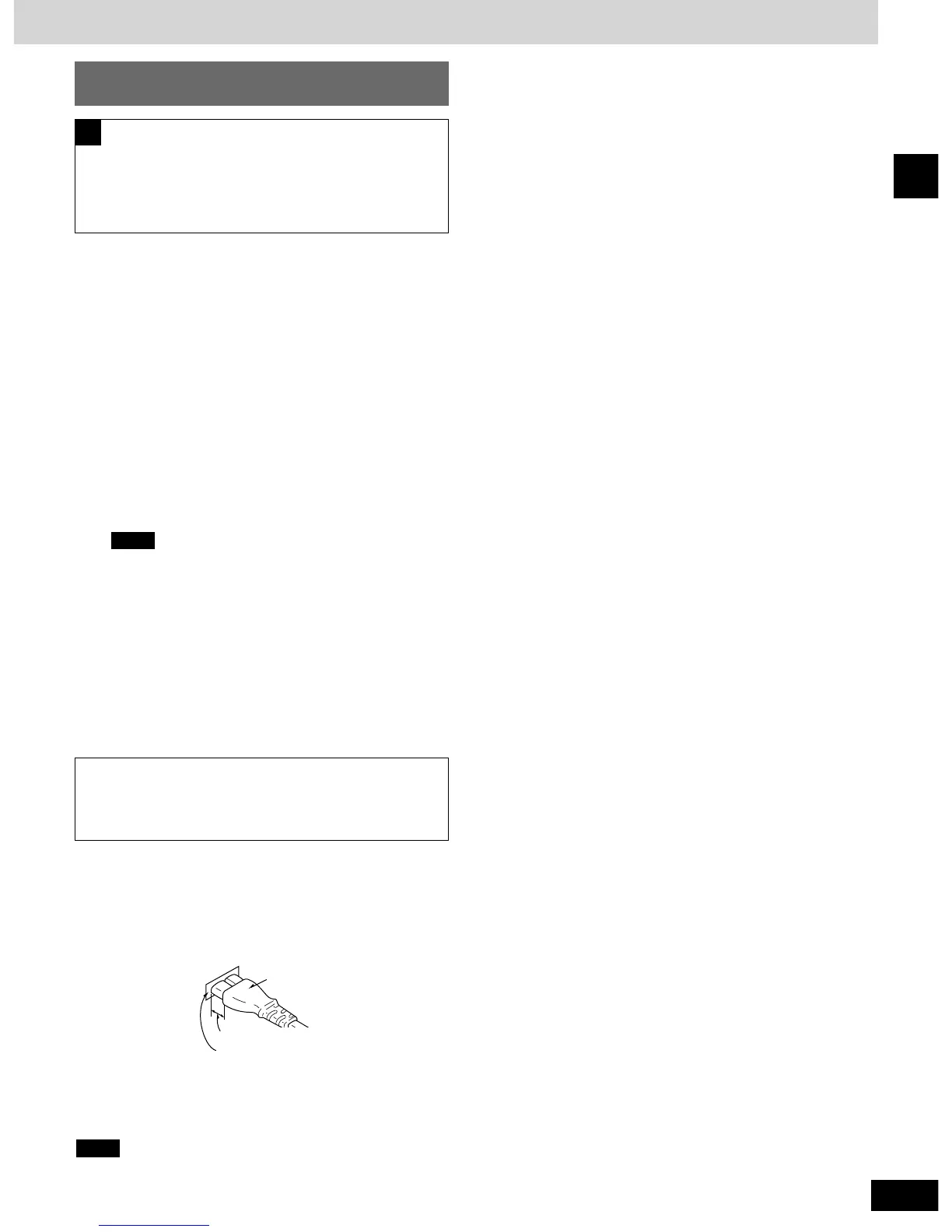

Insertion of connector
Even when the connector is perfectly inserted, depending on
the type of inlet used, the front part of the connector may jut
out as shown in the drawing.
However there is no problem using the unit.
For your reference
Information you enter into the unit’s memory, except for time,
remains intact for up to two weeks after the mains lead is
disconnected.
The included AC mains lead is for use with this unit only. Do not use
it with other equipment.
Note
Before connection
¡Do not connect the AC mains lead until all other connections
are complete.
¡To prepare the FM antenna (for Australia and N.Z.) and speaker
cables, twist the vinyl tip and pull off.
