Before use

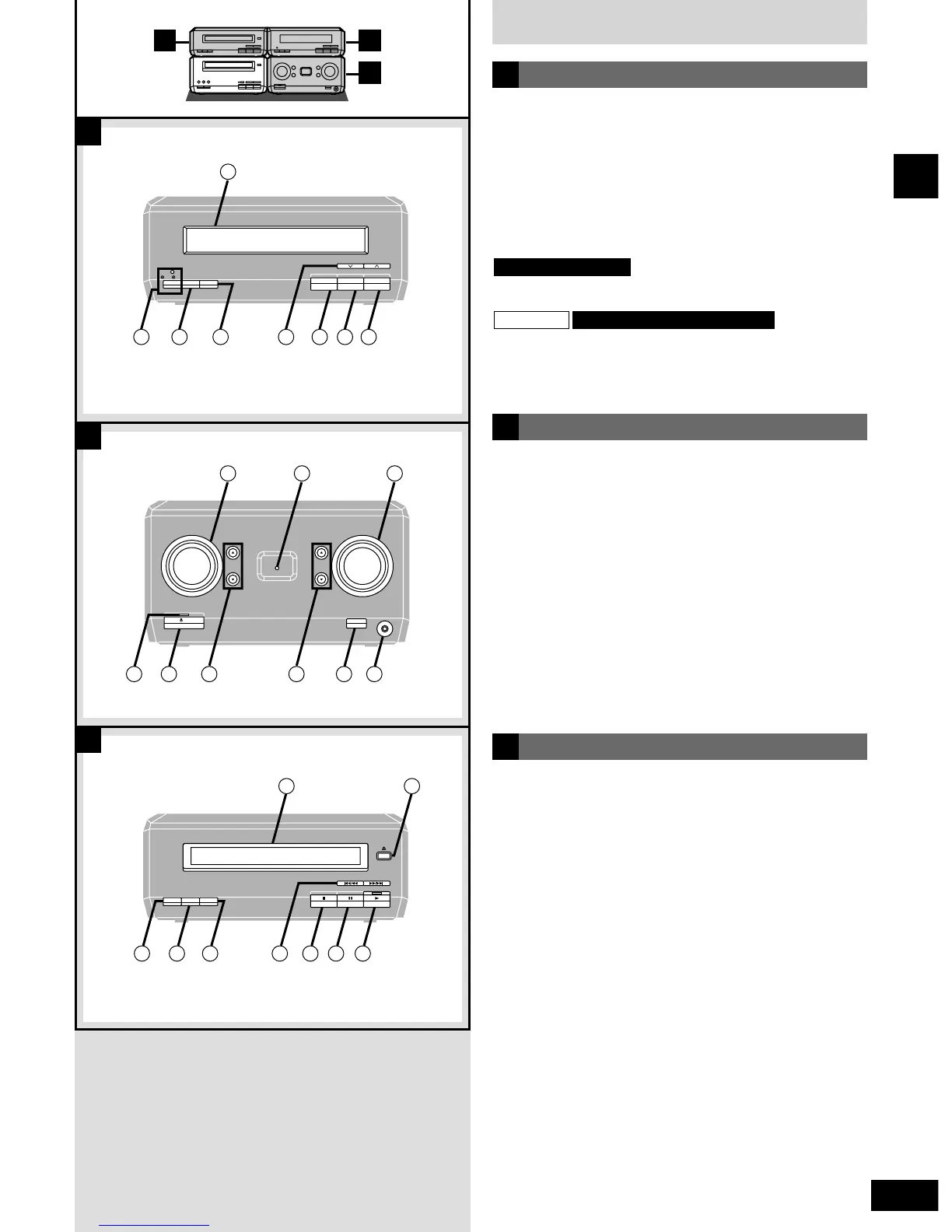

Front panel controls
CD player
!!88
Disc tray
!!99
Disc tray open/close button (; OPEN/CLOSE)....................16
@@00
Random play button (RANDOM) ...........................................17
@@11
Repeat button (REPEAT)........................................................17
@@22
CD edit button (EDIT) .............................................................21
@@33
Skip/search buttons (u/t , y/i )...............................16
@@44
Stop button ( g ) .....................................................................16
@@55
Pause button ( h )...................................................................16
@@66
Play button and indicator ( q ) ..............................................16
The color of the indicator depends on the operation taking place.
If stopped: orange
If playing: green
C
Tuner
qq
Display panel
The display also shows information for the cassette deck, CD
player, and amplifier.
ww
Play timer/record timer button and indicator
(z PLAY/z REC) .........................................................22, 23, 24
ee
Clock/timer button (CLOCK/TIMER)................................11, 22
rr
Set button (SET)......................................................................11
tt
Tuning/time adjust buttons
(TUNE/TIME ADJUST 2, 1)...............................................11,12
yy
Tuning mode button (TUNE MODE)......................................12
uu
RDS button (RDS)...................................................................12
ii
Band select button (FM/AM) ..................................................12
uu
FM band select button (FM)...................................................12
ii
AM band select button (AM) ..................................................12
SC-HD550 for Australia and N.Z.SC-HD350
SC-HD550 for Europe
A
C A
B
CLOCK/TIMER SET
PLAY/ REC
FM/AMRDSTUNE MODE
TUNE/TIME ADJUST
1
2 3 4 5 6 7 8
INPUT
SELECTOR
VOLUME
BASS TREBLE
VGCA
PHONES
DOWN UP
/ I
9 10
12 13 14 16 17
11
15
REPEATRANDOM EDIT
OPEN/CLOSE
18 19
20 21 22 23 24 25 26
A
B
C
Amplifier
oo
Input selector (INPUT SELECTOR) .......................................25
!!00
VGCA indicator (VGCA) .........................................................26
!!11
Volume control (VOLUME).....................................................12
!!22
Standby indicator
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
!!33
Standby/on switch (8) ..........................................................11
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
!!44
Bass buttons (BASS e, r).....................................................26
!!55
Treble buttons (TREBLE e, r)..............................................26
!!66
VGCA (variable gain control amplifier) button (VGCA).......26
!!77
Headphone jack (PHONES)....................................................25
