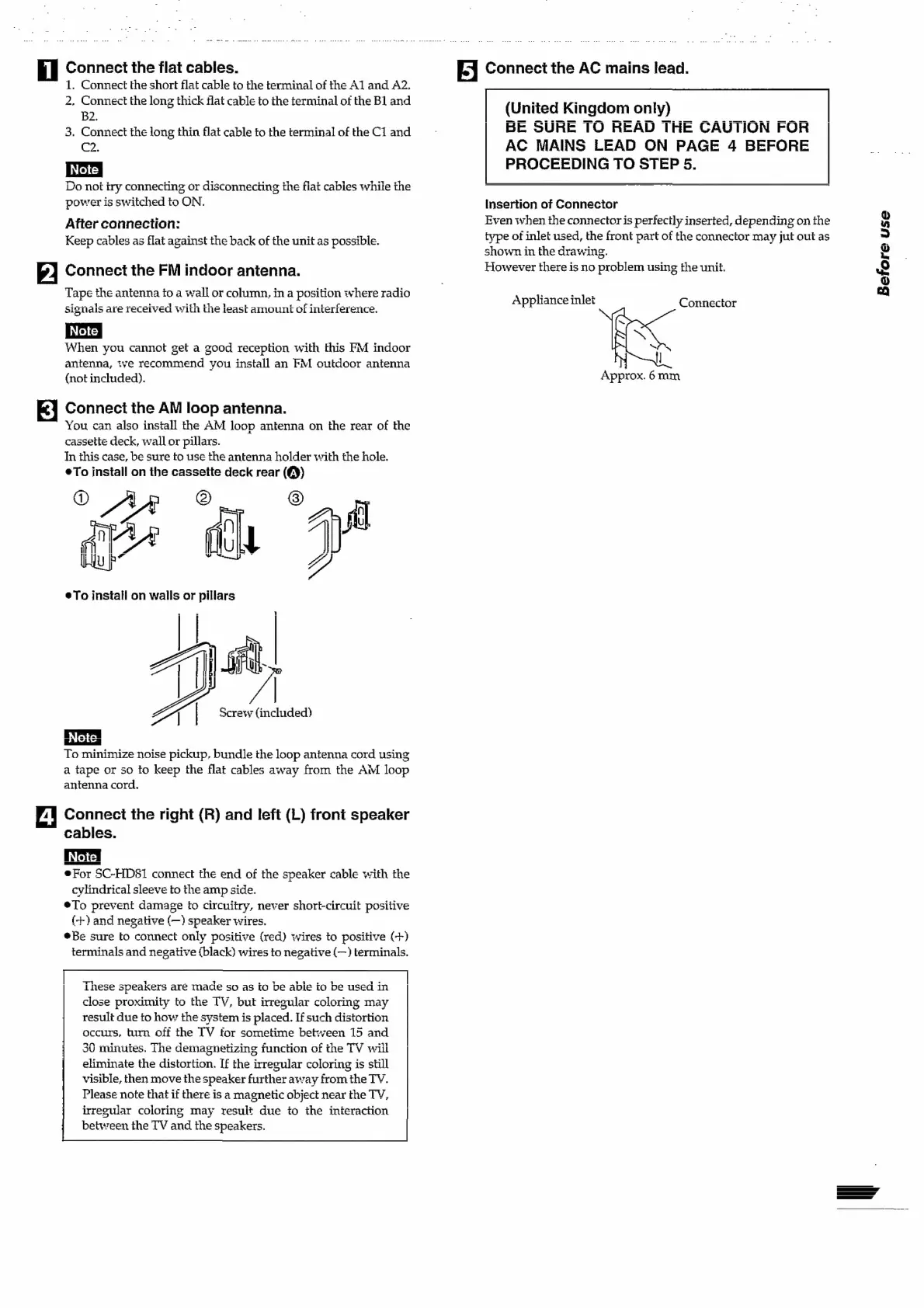

bl eonnees the flat cables.
. Connect the short flat cable to the terminal of the Al and A2,
: Connect the long thick flat cable to the terminal of the B1 and
B2.
3. Connect the long thin flat cable to the terminal of the C1 and
C2:
Do not iry connecting or disconneciing the fiat cabies while the
power is switched to ON.
After connection:
Keep cables as flat against the back of the unit as possible.
Pp) Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where radio
signals are received with the least amount of interference.
When you cannot get a good reception with this FM indoor
antenna, tve recommend you install an FM outdoor antenna
(not included).
Connect the AM loop antenna.
You can also install the AM loop antenna on the rear of the
cassette deck, wall or pillars.
In this case, be sure to use the antenna holder with the hole.
®To instal! on the cassette deck rear @)
oA 2)
ie acl 3
@To install on walls or pillars
Tl
al
Screw (included)
rer
Mabel
To minimize noise pickup, bundle the loop antenna cord using
a tape or 50 to keep the flat cables away from the AM loop
antenna cord.
|
=
\
4. Connect the right (R) and left (L) front speaker
cables.
| Note |
For SC-HD81 connect the end of the speaker cable with the
cylindrical sleeve to the amp side.
eTo prevent damage to circuitry, never short-circuit positive
(+) and negative (- —) speaker wires.
Be sure to connect only positive (red) wires to positive (+)
terminals and negative (black) wires to negative (—) terminals.
These speakers are made so as to be abie io be used in
close proximity to the TV, but irregular coloring may
result due to how the system is placed. If such distortion
occurs, tum off the TV for sometime between 15 and
at TE
30 minutes. The demagnetizing function of the TV will
eliminate the distortion. If the ‘regular coloring is still
visible, then move the speaker further away from the TV.
Please note that if there is a magnetic object near the TV,
irregular coioring may resuit due to the interaction
between the TV and the speakers.
5 Connect the AC mains lead.
(United Kingdom only)
BE SURE TO READ THE CAUTION F
AC MAINS LEAD ON PAGE 4 BE ete
PROCEEDING TO STEP 5.
- a
m &
Insertion of Connector
Even when the connector is perfectly inserted, depending on the
type of inlet used, the front part of the connector may jut out as
shown in the drawing
However there is no problem using the unit.
Appliance inlet Connector
Approx. 6mm
Before use
