Fi outdoor antenna
(not included)
V 75Q coaxial cable
(not included)
(United Kingdom only)
@) Use the antenna
plug adaptor
(included).
AM outdoor antenna
(notincluded)
[ eee re ere re 5-4 2m
Cassette deck
4 Do not remove the
AM loop antenna.

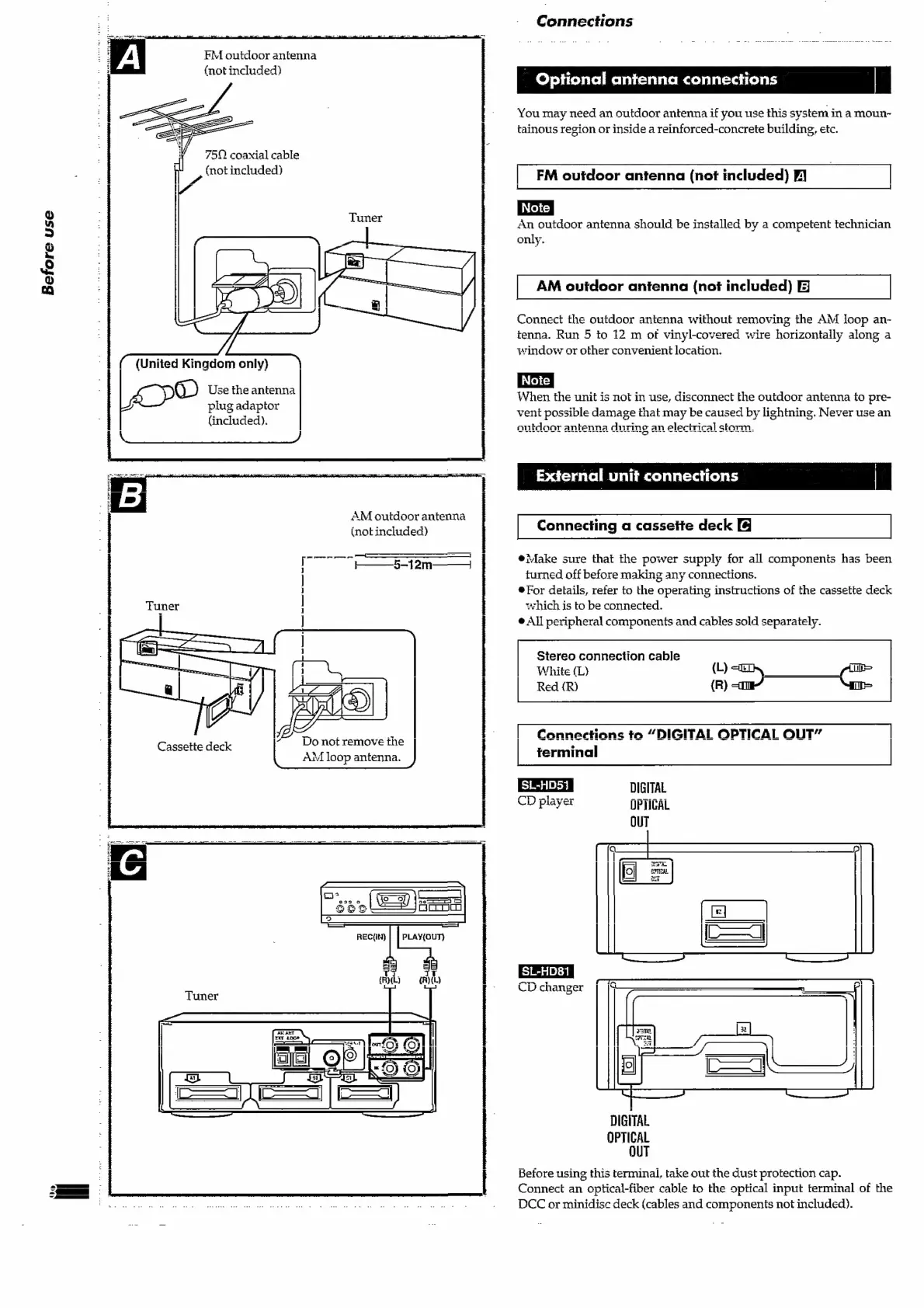

Connections
Optional antenna connections
' | 1 i i i ! to | ! i | i 1 i ' ¢ 1 if !
You may need an outdoor antenna if you use this system in a moun-
tainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna (not included) Fj |
An outdoor antenna should be installed by a competent technician
only.
AM outdoor antenna (not included) &
Connect the outdoor antenna without removing the AM loop an-
tenna. Run 5 to 12 m of vinyl-covered wire horizontally along a
window or other convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre-
vent possible damage that may be caused by lightning. Never use an
outdoor antenna during an electrical storm.
External unit connections
Connecting a cassette deck
Make sure that the power supply for all components has been
turned off before making any connections.
@For details, refer to the operating instructions of the cassette deck
which is to be connected.
@ All peripheral components and cables sold separately.
Stereo connection cable
White (L)
Red {R)
{L) = ill
“=
(R) <a
SL-HD51 DIGITAL
CD player OPTICAL
CD changer
DIGITAL
OPTICAL
OUT
Before using this terminal. take out the dust protection cap.
Connect an optical-fiber cable to the optical input terminal of the
DCC or minidisc deck (cables and components not included).
