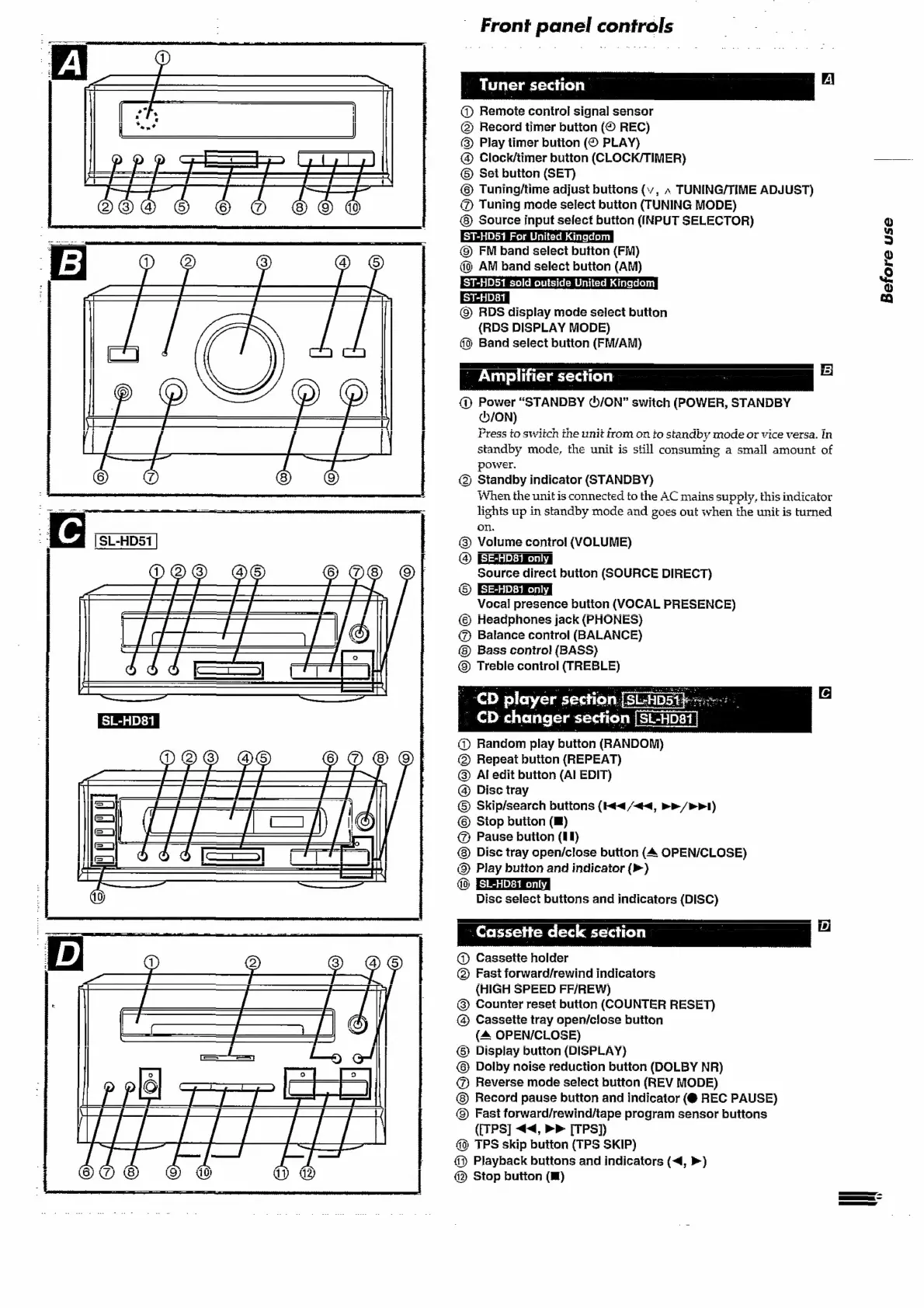

_ Front panel controls
Tuner section
Remote control signal sensor
2) Record timer button (© REC)
3) Play timer button (© PLAY)
@ Clock/timer button (CLOCK/TIMER)
&) Set button (SET)
(6) Tuning/time adjust buttons (v, . TUNING/TIME ADJUST)
@) Tuning mode select button (TUNING MODE)
@) Source input select button (INPUT SELECTOR)
ST-HD51 For United Kingdom
() FM band select button (FM)
> AM band select button (AM)
() RDS display mode select button
(RDS DISPLAY MODE)
40 Band select button (FM/AM)
Bi
- Amplifier section =
@) Power “STANDBY (/ON” switch (POWER, STANDBY
()/ON)
Press to switch the unit trom on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
) Standby indicator (STANDBY)
When the unit is connected to the AC mains supply, this indicator
lights up in standby mode and goes out when the unit is turned
on.
Volume contro! (VOLUME)
Source direct button (SOURCE DIRECT)
Vocal presence button (VOCAL PRESENCE)
3) Headphones jack (PHONES)
Balance conirol (BALANCE)
Bass control (BASS)
Treble control (TREBLE)
S)
}
Oe
©
© @©@O
©OO®
"CD player section [SEADSt}
CD changer section
@) Random play button (RANDOM)
@) Repeat button (REPEAT)
@) Al edit button (Al EDIT)
@ Disc tray
©) Skip/search buttons (<4 <4, >> />P1)
© Stop button (HM)
(7) Pause button (11)
(8) Disc tray open/close button (4 OPEN/CLOSE)
) Play button and indicator (>)
@
Disc select buttons and indicators (DISC)
.Cassette deck section Dp
@) Cassette holder
(@) Fast forward/rewind indicators
(HIGH SPEED FF/REW)
@ Counter reset button (COUNTER RESET)
@ Cassette tray open/close button
(4 OPEN/CLOSE)
(5) Display button (DISPLAY)
6) Dolby noise reduction button (DOLBY NR)
@) Reverse mode select button (REV MODE)
(8) Record pause button and indicator (@ REC PAUSE)
(8) Fast forward/rewind/tape program sensor buttons
([TPS] <<, >» [TPS])
(3 TPS skip button (TPS SKIP)
fj) Playback buttons and indicators (<4, >)
(2) Stop button (Ml)
Ol
