Technics SE-CH530 Service Manual

SE-CH530 |
PRSSHHESEAHESSHSHFSSHHCAEAC HESS SHSOSHRASCA SDE RSSSERSCREC EDO SES ECE

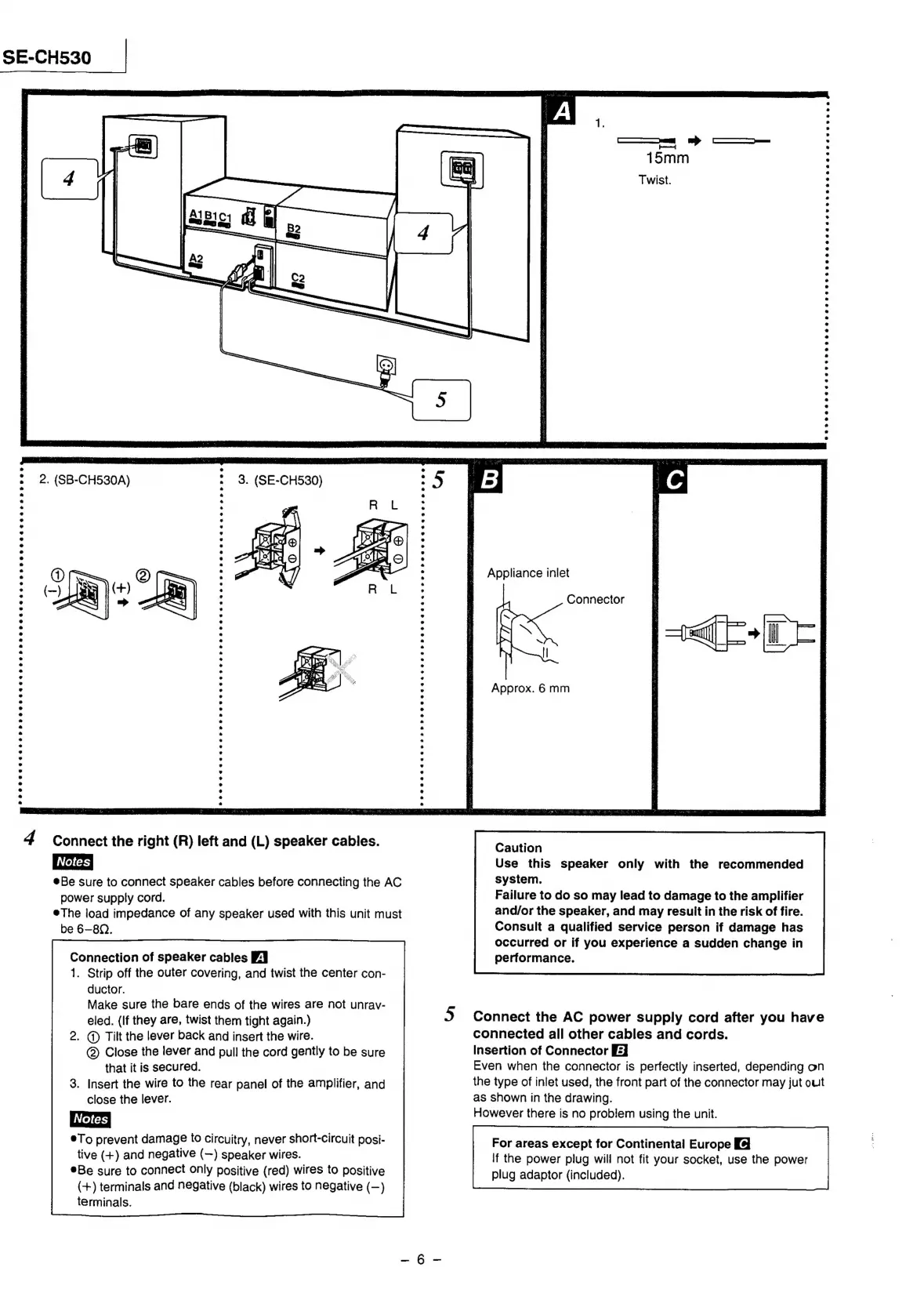

2. (SB-CH530A) 3. (SE-CH530)
; SOSSS ECCS SHOPS PSesesesseserseoseaeseetaeanseetseeseeeecececananesevse¢
4 Connect the right (R) left and (L) speaker cables.
Be sure to connect speaker cables before connecting the AC
power supply cord.
®The load impedance of any speaker used with this unit must
be 6-80.
Connection of speaker cables EJ
1. Strip off the outer covering, and twist the center con-
ductor.
Make sure the bare ends of the wires are not unrav-
eled. (If they are, twist them tight again.)
2. (@ Tilt the lever back and insert the wire.
(@) Close the lever and pull the cord gently to be sure
that it is secured.
3. Insert the wire to the rear panel of the amplifier, and
close the lever.
®To prevent damage to Circuitry, never short-circuit posi-
tive
(+)
and
negative
(—)
speaker
wires.
®Be sure to connect only positive (red) wires to positive
(+) terminals and negative (black) wires to negative (—)
terminals.
PPO SEEK EH POOH HEHEHE CERRO EEA DEERE CCOHEESADED EDD DECE
SS seseeeotezsaeve esses e sees sreseesseeseetcere esses eeaeaage Fees sesee
Appliance inlet
Connector
Approx. 6 mm
Caution
Use this speaker only with the recommended
system.
Failure to do so may lead to damage to the amplifier
and/or the speaker, and may result in the risk of fire.
Consult a qualified service person if damage has
occurred or if you experience a sudden change in
performance.
Connect the AC power supply cord after you have
connected all other cables and cords.
Insertion of Connector FE]
Even when the connector is perfectly inserted, depending on
the type of inlet used, the front part of the connector may jut out
as shown in the drawing.
However there is no problem using the unit.
For areas except for Continental Europe
lf the power plug will not fit your socket, use the power
plug adaptor (included).

Technics SE-CH530 Specifications

General

Brand	Technics
Model	SE-CH530
Category	Amplifier
Language	English
