SE-CH610 |

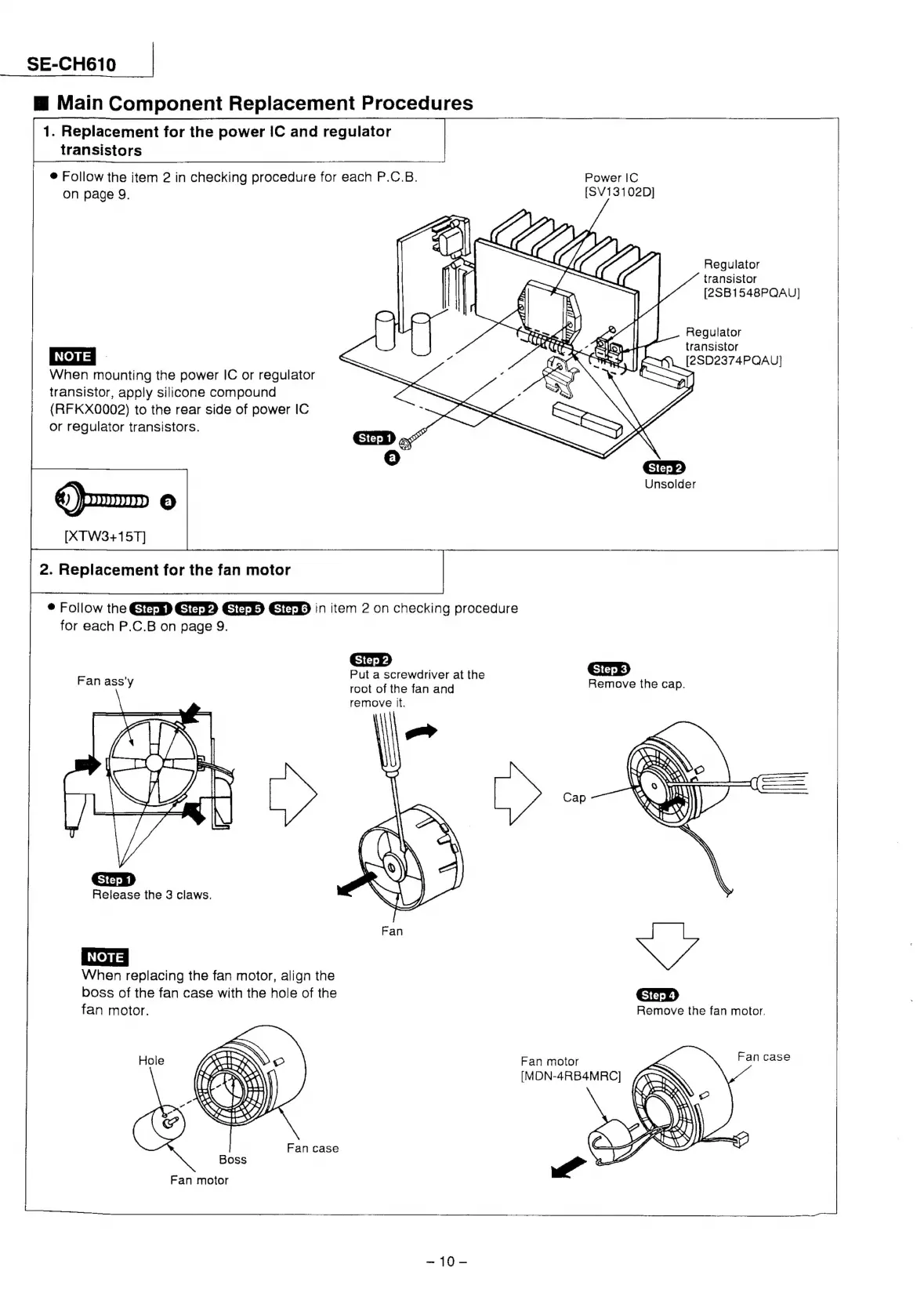

m@ Main Component Replacement Procedures
1. Replacement for the power IC and regulator
transistors
@ Follow the item 2 in checking procedure for each P.C.B. Power IC
on page 9. [SV13102D]
Regulator
transistor
[2S5B1548PQAU]
Regulator
transistor
[2SD2374PQAU}]
al
|
When mounting the power IC or regulator
transistor, apply silicone compound
(RFKX0002) to the rear side of power IC
or regulator transistors.
,
y
o exp
0) Unsolder
[XTW3+15T]
2. Replacement for the fan motor
® Follow the @GD Gap GED GED in item 2 on checking procedure
for each P.C.B on page 9.
' Put dri
Fan ass'y Buen ceed bet me Remove the cap.
remove it.
Cap
Release the 3 claws.
When replacing the fan motor, align the
boss of the fan case with the hole of the
fan motor. Remove the fan motor.
Fan motor Fan case
[MON-4RB4MRC]
Fan case
Boss eS”
Fan motor
—~10-
