Technics SE-CH610 Service Manual

SE-CH610 |
FM outdoor antenna
(not included)
Plastic bar
- Press down with pliers.
Wen dase

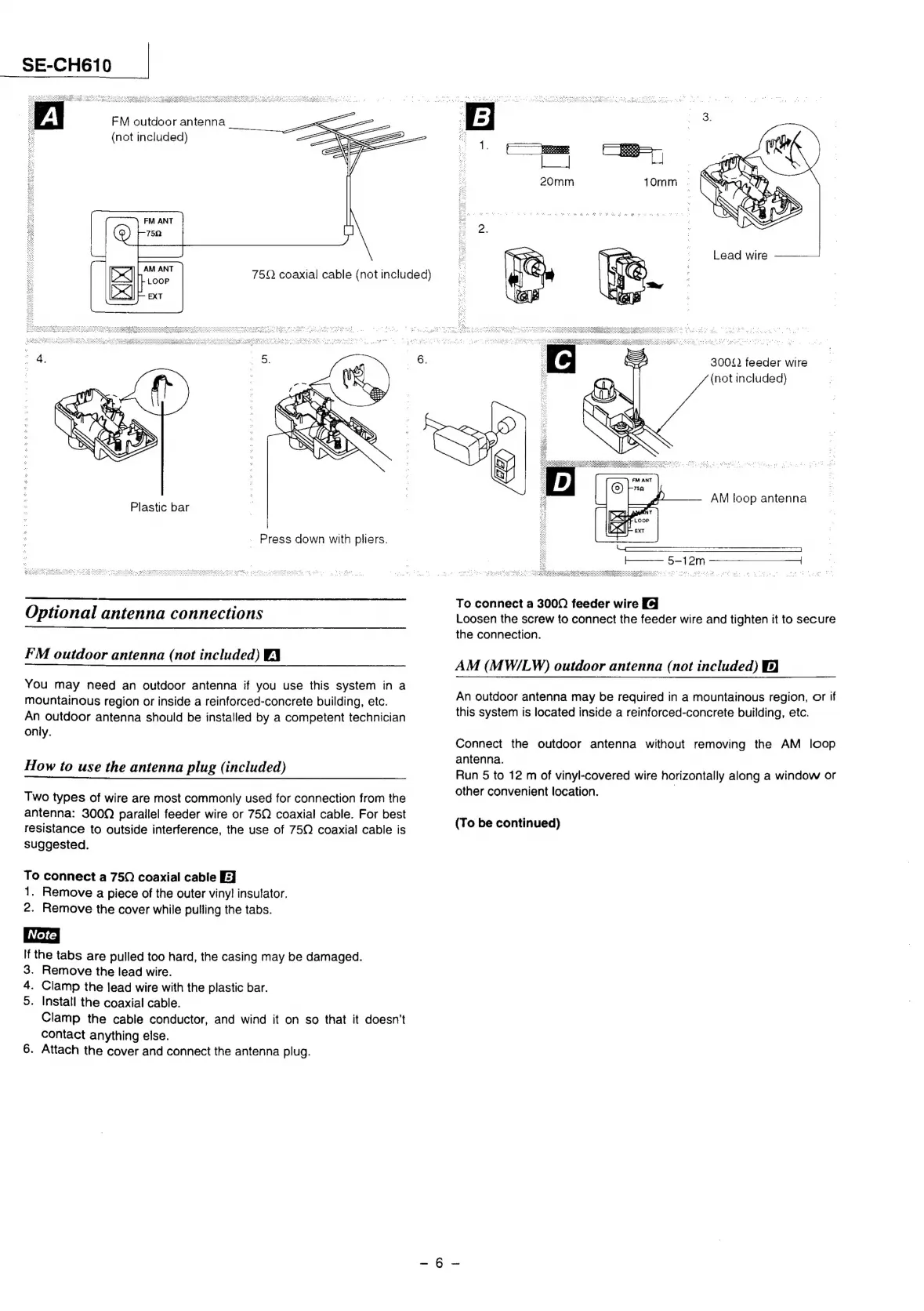

Optional antenna connections
FM outdoor antenna (not included) EY
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
An outdoor antenna should be installed by a competent technician
only.
How to use the antenna plug (included)
Two types of wire are most commonly used for connection from the
antenna: 300Q parallel feeder wire or 75Q coaxial cable. For best
resistance to outside interference, the use of 75Q coaxial cable is
suggested.
To connect a 750 coaxial cable EJ
1. Remove a piece of the outer viny! insulator.
2. Remove the cover while pulling the tabs.
If the tabs are pulled too hard, the casing may be damaged.
3. Remove the lead wire.
4. Clamp the lead wire with the plastic bar.
5. Install the coaxial cable.
Clamp the cable conductor, and wind it on so that it doesn't
contact anything else.
6. Attach the cover and connect the antenna plug.
75Q coaxial cable (not included)
Lead wire
30042 feeder wire
(not included)
To connect a 300 feeder wire
Loosen the screw to connect the feeder wire and tighten it to secure
the connection.
AM (MW/LW) outdoor antenna (not included) B®)
An outdoor antenna may be required in a mountainous region, or if
this system is located inside a reinforced-concrete building, etc.
Connect the outdoor antenna without removing the AM loop
antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location. |
(To be continued)
