Technics SE-CH610 Service Manual

SE-CH610

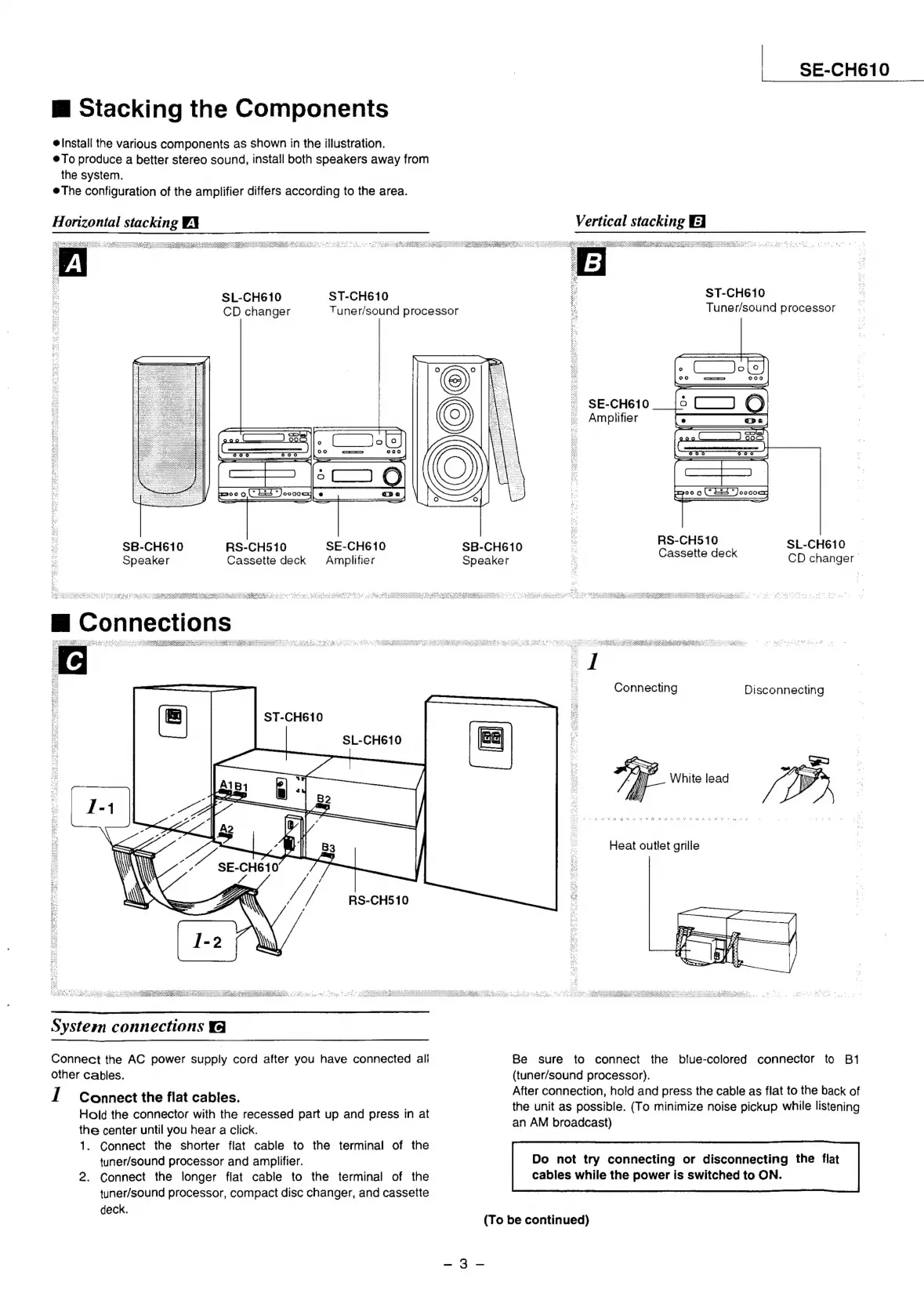

Mm Stacking the Components
einstall the various components as shown in the illustration.
To produce a better stereo sound, install both speakers away from
the system.
@The configuration of the amplifier differs according to the area.
Horizontal stacking U4 Vertical stacking E]
SRA
AAS SO aS
ST-CH610
Tuner/sound processor
SL-CH610 ST-CH610
CD changer Tuner/sound processor
SE-CH610
Amplifier
SB-CH610 RS-CH510 SE-CH610 SB-CH610 : ey ae SL-CH610 _
Speaker Cassette deck Amplifier Speaker 4 CD changer
Con
Connecting Disconnecting
ST-CH610
SL-CH610
RS-CH510
System connections
Connect the AC power supply cord after you have connected all Be sure to connect the blue-colored connector to B1
other cables. (tuner/sound processor).
I Connect the flat cables. After connection, hold and press the cable as flat to the back of
the unit as possible. (To minimize noise pickup while listening
an AM broadcast)
Hold the connector with the recessed part up and press in at
the center until you hear a click.
1. Connect the shorter flat cable to the terminal of the
tuner/sound processor and amplifier. Do not try connecting or disconnecting the flat
2. Connect the longer flat cable to the terminal of the cables while the power is switched to ON.
tuner/sound processor, compact disc changer, and cassette
deck.
(To be continued)
ae: ae

Technics SE-CH610 Specifications

General

Brand	Technics
Model	SE-CH610
Category	Amplifier
Language	English
