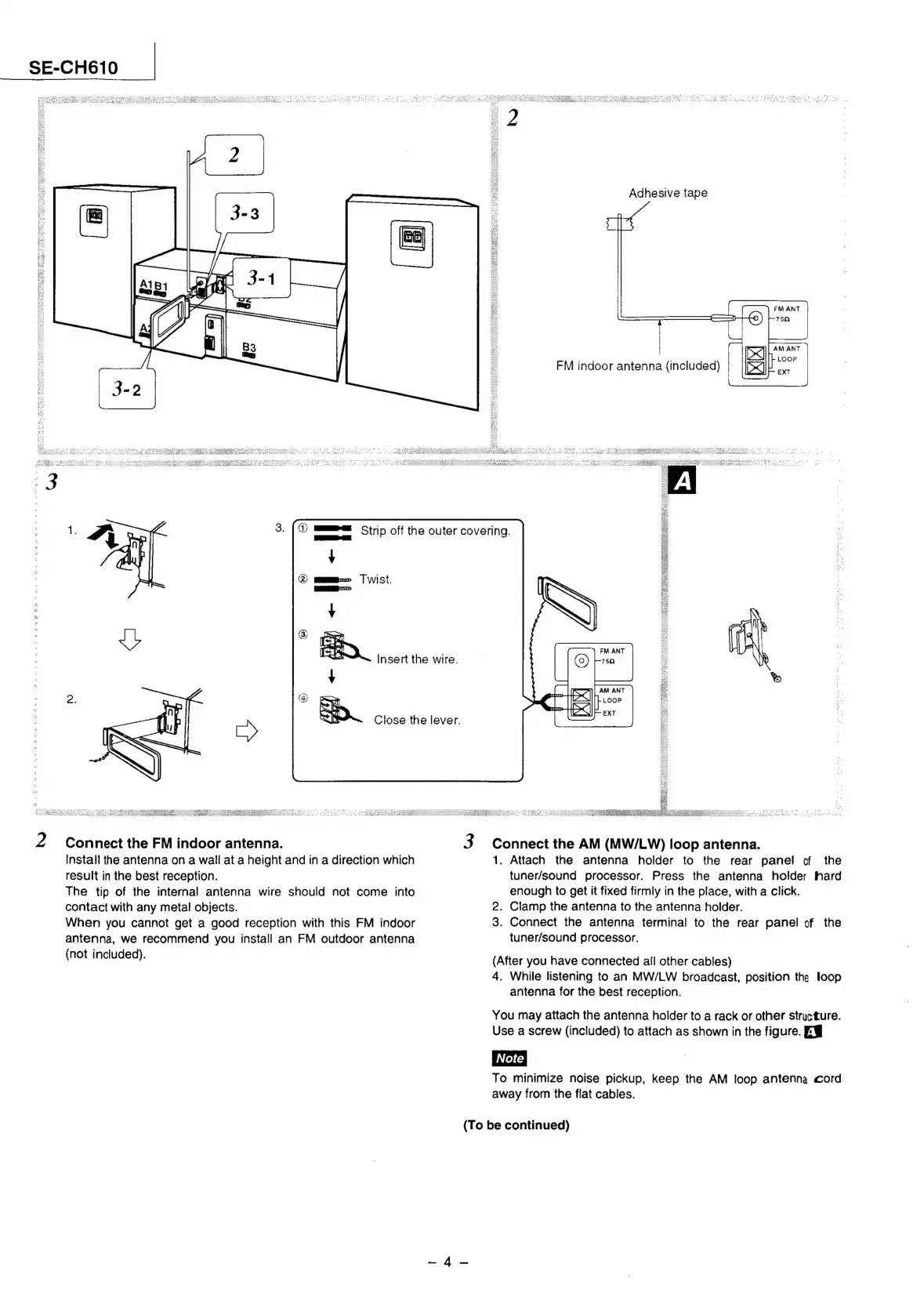

@ MEE Strip off the outer covering.
©
OE ee er
2 Connect the FM indoor antenna. 3 Connect the AM (MW/LW) loop antenna.
Install the antenna on a wail at a height and in a direction which 1. Attach the antenna holder to the rear panel of the
result in the best reception. tuner/sound processor. Press the antenna holder hard
The tip of the internal antenna wire should not come into enough to get it fixed firmly in the place, with a click.
contact with any metal objects. 2. Clamp the antenna to the antenna holder.
When you cannot get a good reception with this FM indoor 3. Connect the antenna terminal to the rear panel of the
antenna, we recommend you install an FM outdoor antenna tuner/sound processor.
(not
included).
(After
you
have
connected
all
other
cables)
4. While listening to an MW/LW broadcast, position the loop
antenna for the best reception.
You may attach the antenna holder to a rack or other structure.
Use a screw (included) to attach as shown in the figure. EW
To minimize noise pickup, keep the AM loop antenna cord
away from the flat cables.
(To be continued)
