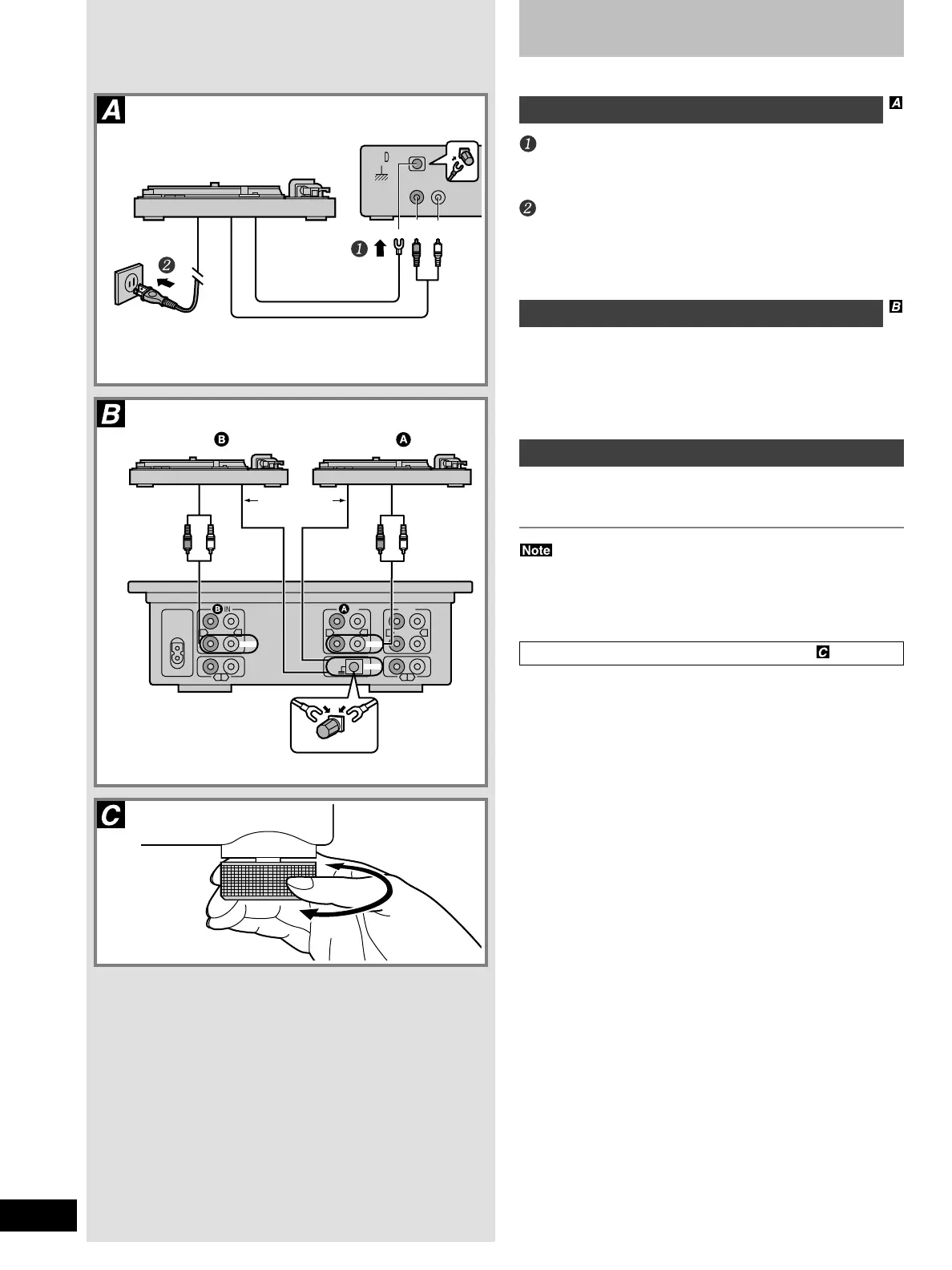

Connections and installation
Connecting the stereo cords and AC power cor d
Connect the stereo cords and earth lead.
If the earth lead isn’t connected, a hum will be heard from the
AC power source.
Connect the AC power cord.
•Connect this cord only after all other connections are complete.
•Confirm the wattage of AC outlets on amplifiers and receivers
before using them for this unit. This unit consumes 14 W.
Connection to the Audio Mixer (not included)
•Disconnect all units from the power source before making any con-
nections.
•Reconnect the AC power cords after all other connections are com-
plete.
Installation
•Install the unit on a horizontal surface protected from vibrations.
•Keep this unit as far as possible from speakers.
•Ensure the unit is not exposed to direct sunlight, dust, humidity,
and heat from a heating appliance.
•This unit may pick up interference from a radio if there is one nearby.
Keep radios as far as possible from this unit.
Adjusting the height of the insulators
Place the unit where it is to be used and adjust the height of the legs
to make the unit horizontal.
Amplifier(not included)
This unit
This unit This unit
To household
AC outlet
PHONO earth lead
Stereo cords
PHONO
earth lead
(White)
(Red)
(Red)
(White)
(R)
(R)
(L)
(L)
Audio mixer
To phono
terminals
(Red) (White)
(R)
(L)
