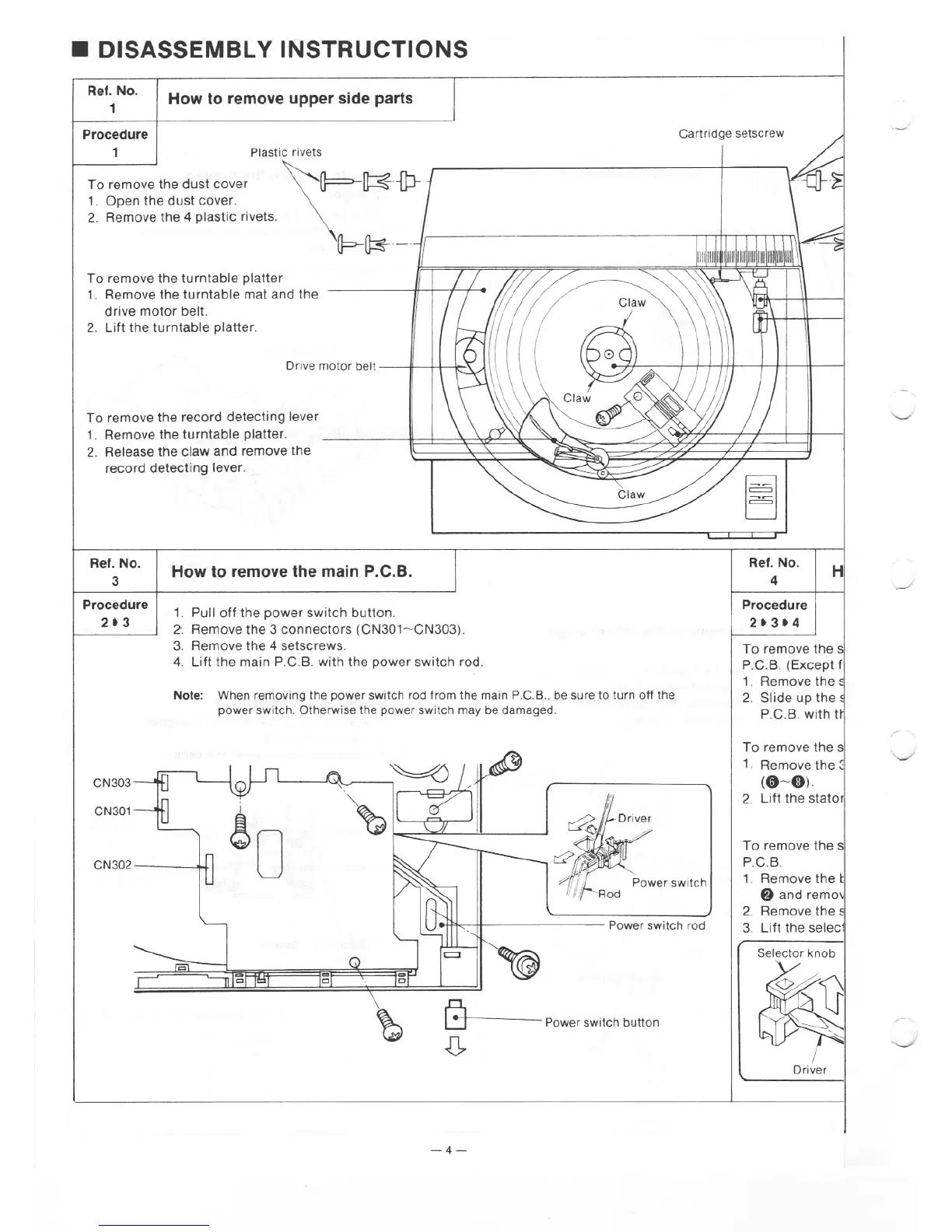

• DISASSEMBLY INSTRUCTIONS
Ref. No.
1
How to remove upper side parts
Procedure
Cartridge setscrew
1 Plastic rivets
1.
Open the dust cover .
2. Remove the 4
plastic rivets.
To remove the dust cover ~(J=-fi:*-(p-
IF-~· -· 1~ ------ r-r-rh-1,,--,,,--rn\......c_-=:i
To remove the turntable platter
1. Remove the turntable mat and the
drive motor belt.
2. Lift the turntable platter.
To remove the record detecting lever
1. Remove the turntable platter.
2. Release
the claw and remove the
record detecting lever.
Ref. No.
3
Procedure
2•3
How to remove the main P.C.B.
1. Pull off the power swi tch button.
2: Remove
the 3 connectors (CN301-CN303) .
3. Remove the 4 setscrews.
4.
Lift the main P.C.B. with the power switch rod.
Note: When remov i ng the power sw itch rod from the ma in P.C.B .. be su re to turn off the
power switch. Otherwise the power switch
may be damaged .
A>
Power sw it ch
Power switch rod
~
~
Power switch button
~
-4-
Ref. No.
4
H
To remove the
P.C.B. (Except f
1. Remove
the
2. Slide up the
P.C.B. with t
To remove the s
1. Remove
the ~
(0 - C)).
2. Litt the stato r
To remove the s
P.C.B.
1. Remove the t
8 and remm
2.
Remove the~
3.
Lift the selec1
Selector knob
Driver
....__,;
