Technics SL-J11D User Manual

p-1p11111
\

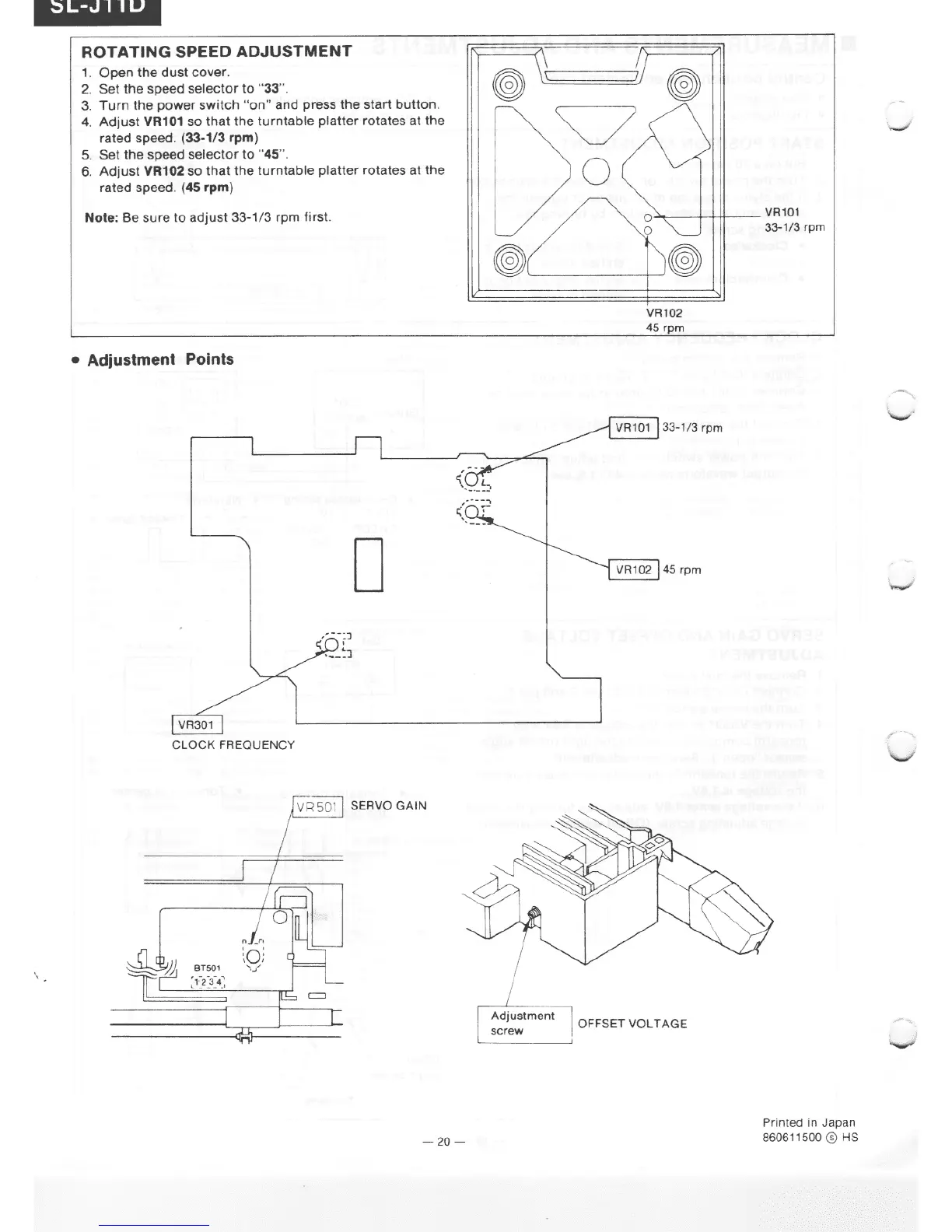

ROTATING
SPEED
ADJUSTMENT
1.
Open
the dust cover.
2.
Set
the
speed selector to
"33
".
3.
Turn
the power
switch
"on"
and
press the start
button
.
4.
Adjust
VR101
so
that the turntable platter rotates at the
rated speed. (33-1/3
rpm)
5.
Set the speed selector
to
"
45
''.
6.
Adjust
VR102
so
that the turntable platter rotates at the
rated speed.
(
45
rpm)
Note:
Be
sure to adjust 33-1/3 rpm first.
•
Adjustment Points
D
BT501
:(
2)=·
~
-20-
Adjustment
screw
~
0
-...
--+-
-++t--
VR101
VR102
45
rpm
VR101
33-1/3 rpm
VR102 45 rpm
OFFSET
VOLT
AGE
33-1/3 rpm
Printed
in
Japan
860611500
©
HS
