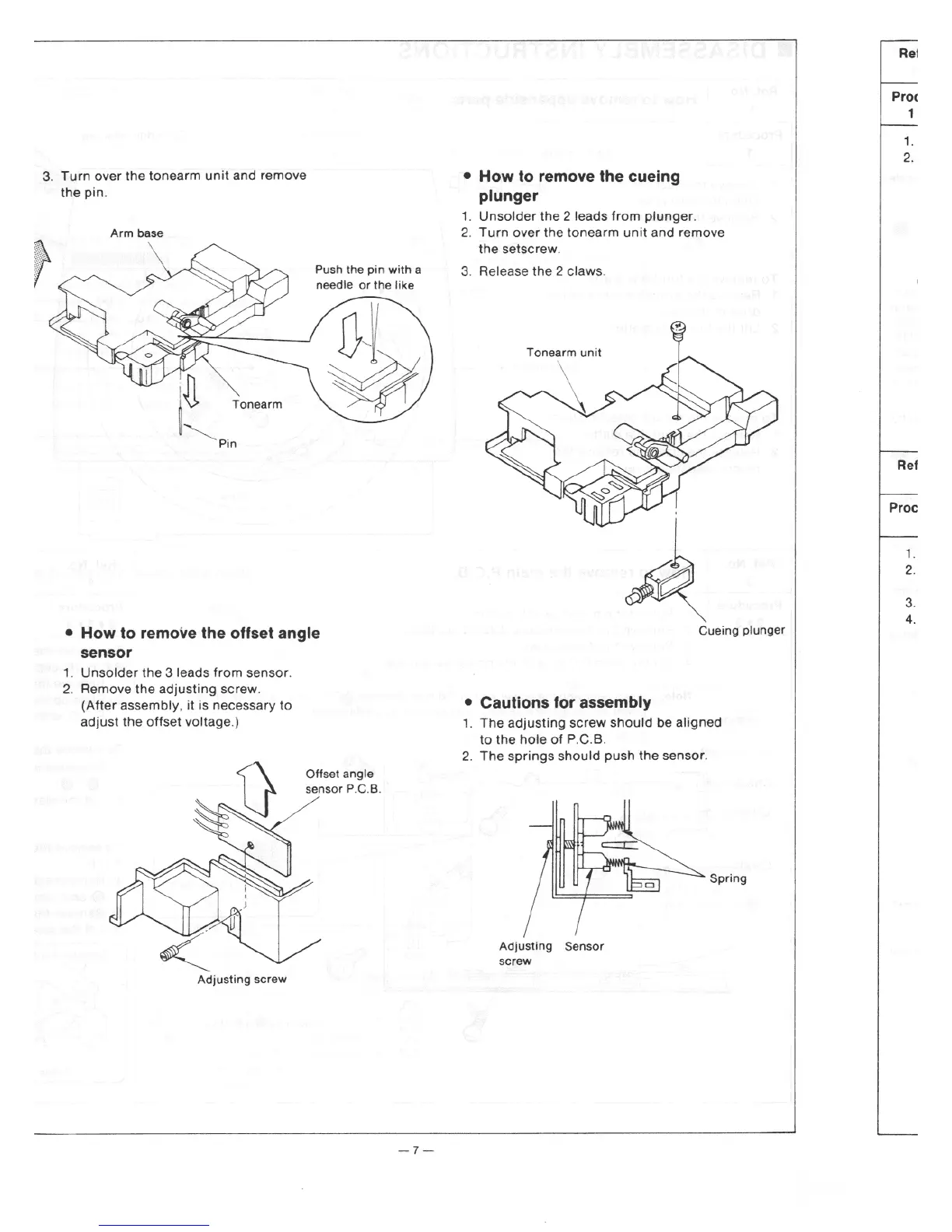

3. Turn over the tonearm unit and remove
the pin.
Arm base
Push the pin
with a
needle
or the like
• How to remove the offset angle
sensor
1. Unsolder the 3 leads from sensor.
2. Remove the adjusting screw.
(After assembly, it is necessary to
adjust the offset voltage.)
Adjusting screw
Offset angle
sensor P.C.B.
- 7-
• How to remove the cueing
plunger
1. Unsolder the 2 leads from plunger .
2. Turn over the tonearm unit and remove
the setscrew.
3. Release the 2 claws.
Cueing plunger
• Cautions for assembly
1. The adjusting screw should be aligned
to the
hole of P.C.B.
2. The springs should push the sensor.
Adjusting Sensor
screw
Spring
