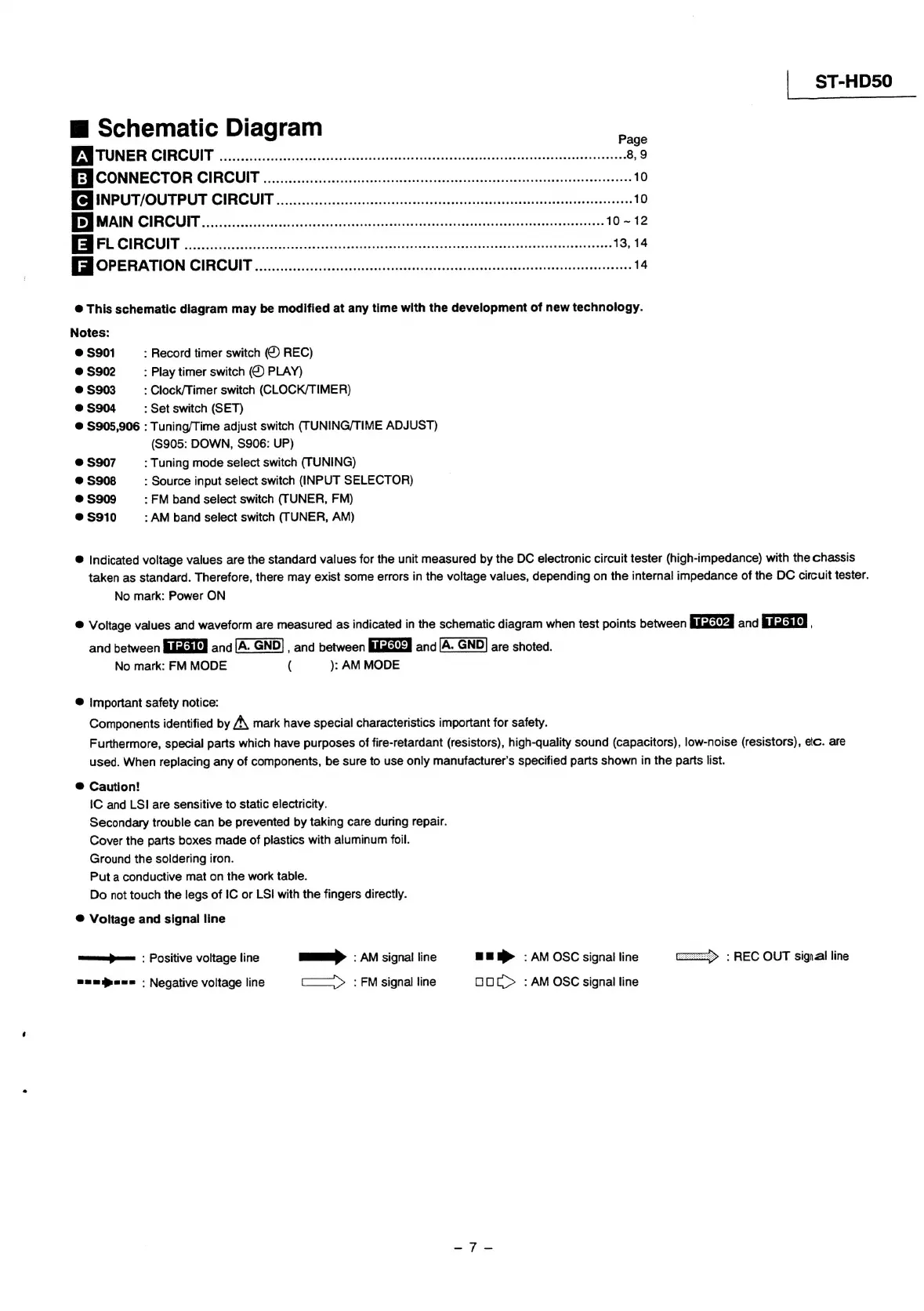

ST-HD50
m@
Schematic
Diagram
Page
PD
TINE
CIRCUIT,
siccccesec.cesseccstecat
tie
seeeteda
cia
asicciees
lids
atin
ees
eites
8,9
BEM
CONNECTOR
CIRCUIT
cece
actact
icon
gsis)
ctaumietan
ators
ctactaaratesstaysicsuslewnaernialetey
5:
10
INPUT/OUTPUT
CIRCUIT
sssscossce.ccanthindncinsreernanasa
mace
amani
tect
10
Bee
MAIN
CIRCUIT
s
ssccscenaiseieti
oA
antanttneeteneae
10~12
WR
RE
CUR
GUIT
costo
sectet
te
terete
te
nctcpsi
cee
ernie
en
13,14
OPERATION
GCIRGUIN
<ccscorsecpt
cae
aeeiee
aeheeeeetcetsennins
14
®
This
schematic
diagram
may
be
modified
at
any
time
with
the
development
of
new
technology.
Notes:
@
S901
:
Record
timer
switch
REC)
@
$902
:
Play
timer
switch
PLAY)
@
S903
:
Clock/Timer
switch
(CLOCK/TIMER)
e@
$904
:
Set
switch
(SET)
@
$905,906
:
Tuning/Time
adjust
switch
(TUNING/TIME
ADJUST)
(S905:
DOWN,
S906:
UP)
@
$907
:
Tuning
mode
select
switch
(TUNING)
@
$908
:
Source
input
select
switch
(INPUT
SELECTOR)
@
S909
:
FM
band
select
switch
(TUNER,
FM)
@
$910
:
AM
band
select
switch
(TUNER,
AM)
®@
Indicated
voltage
values
are
the
standard
values
for
the
unit
measured
by
the
DC
electronic
circuit
tester
(high-impedance)
with
the
chassis
taken
as
standard.
Therefore,
there
may
exist
some
errors
in
the
voltage
values,
depending
on
the
internal
impedance
of
the
DC
circuit
tester.
No
mark:
Power
ON
@
Voltage
values
and
waveform
are
measured
as
indicated
in
the
schematic
diagram
when
test
points
between
Bigs
and
MAaA0
,
and
between
and
,
and
between
and
are
shoted.
No
mark:
FM
MODE
(
):
AM
MODE
®
important
safety
notice:
Components
identified
by
A
mark
have
special
characteristics
important
for
safety.
Furthermore,
special
parts
which
have
purposes
of
fire-retardant
(resistors),
high-quality
sound
(capacitors),
low-noise
(resistors),
elc.
are
used.
When
replacing
any
of
components,
be
sure
to
use
only
manufacturer's
specified
parts
shown
in
the
parts
list.
®@
Caution!
IC
and
LSI
are
sensitive
to
static
electricity.
Secondary
trouble
can
be
prevented
by
taking
care
during
repair.
Cover
the
parts
boxes
made
of
plastics
with
aluminum
foil.
Ground
the
soldering
iron.
Put
a
conductive
mat
on
the
work
table.
Do
not
touch
the
legs
of
IC
or
LSI
with
the
fingers
directly.
@
Voltage
and
signal
line
mmampees
©
Positive
voltage
line
ap
:
AM
signal
line
mam
-
AM
OSC
signal
line
sum
peee
-
Negative
voltage
line
[——>
:
FM
signal
line
OOC>
:
AM
OSC
signal
line
:
REC
OUT
signal
line
