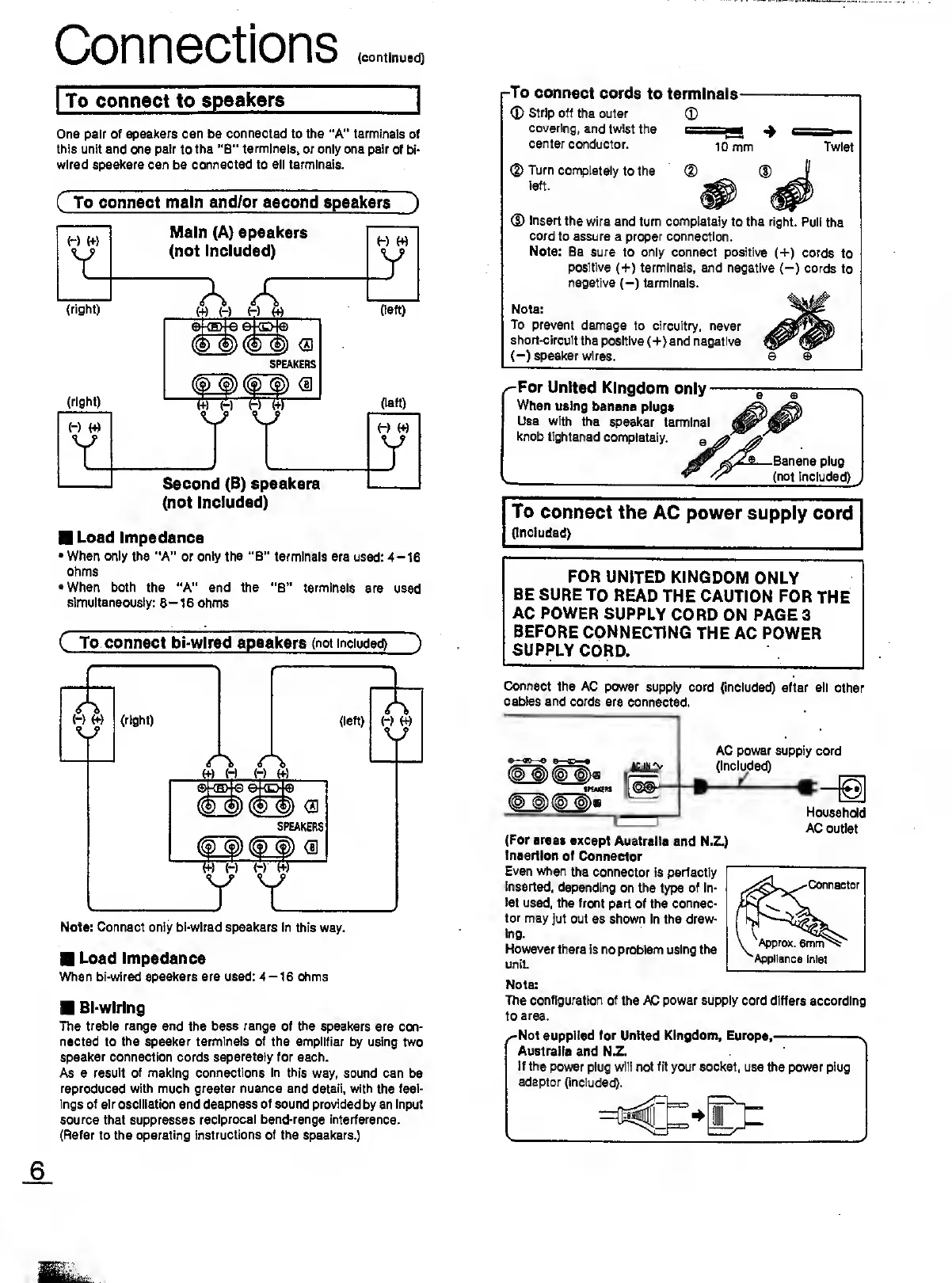

Technics SU-A600 Operating Instructions

Connections
(continued)
To connect to speakers _
One pair of speakers can be connected to the "A" terminals of
this unit and one pair to the “B" terminals, or only one pair of bi-
wired speakers can be connected to all terminals.
C To connect main and/or second speakers ~)
(not Included)
■ Load Impedance
•When only the "A" or only the “B” terminals are used: 4-16
ohms
•When both the “A” and the "B" terminals are used
simultaneously: 8-16 ohms
( To connect bi-wired speakers (not included) )
Note: Connect only bi-wired speakers in this way.
■ Load impedance
When bi-wired speakers are used: 4-16 ohms
■ Bl-wirlng
The treble range and the bass range of the speakers are con¬
nected to the speaker terminals of the amplifier by using two
speaker connection cords separately for each.
As a result of making connections In this way, sound can be
reproduced with much greater nuance and detail, with the feel¬
ings of air oscillation and deepness of sound provided by an input
source that suppresses reciprocal band-range interference.
(Refer to the operating instructions of the speakers.)
-To connect cords to terminals-—
© Strip off the outer ©
covering, and twist the ssssssmm 4 -
center conductor. 10 mrn Twist
( 2 ) Turn completely to the
left.
(D Insert the wire and turn completely to the right. Pul! the
cord to assure a proper connection.
Note: Be sure to only connect positive (+) cords to
positive (+) terminals, and negative (—) cords to
negative (-) terminals.
Note:
To prevent damage to circuitry, never
short-circuit the positive (+) and negative
(-) speaker wires.
-For United Kingdom only
When using banana plugs
Use with the speaker terminal
knob tightened completely.
£—Banana plug
(not Included)
To connect the AC power supply cord
(Included)
FOR UNITED KINGDOM ONLY
BE SURE TO READ THE CAUTION FOR THE
AC POWER SUPPLY CORD ON PAGE 3
BEFORE CONNECTING THE AC POWER
SUPPLY CORD.
Connect the AC power supply cord (included) after all other
cables and cords are connected.
AC power supply cord
(included)
(For areas except Australia and N.Z.)
Insertion of Connector
Even when the connector is perfectly
inserted, depending on the type of in¬
let used, the front part of the connec¬
tor may Jut out as shown in the draw¬
ing.
However there Is no problem using the
unit.
jL
Household
AC outlet
Connector
Approx. 6mm
'Appliance Inlet
Note:
The configuration of the AC power supply cord differs according
to area.
✓ -Not supplied for United Kingdom, Europe,-
Australia and N Z.
If the power plug will not fit your socket, use the power plug
adaptor (included).

Technics SU-A600 Specifications

General

Input Sensitivity	2.5mV (MM), 150mV (line)
Speaker Load Impedance	4Ω to 16Ω
Type	Integrated Amplifier
Dimensions	430 x 134 x 315 mm
Damping Factor	60 (8 ohms)
