Technics SU-A600 Operating Instructions

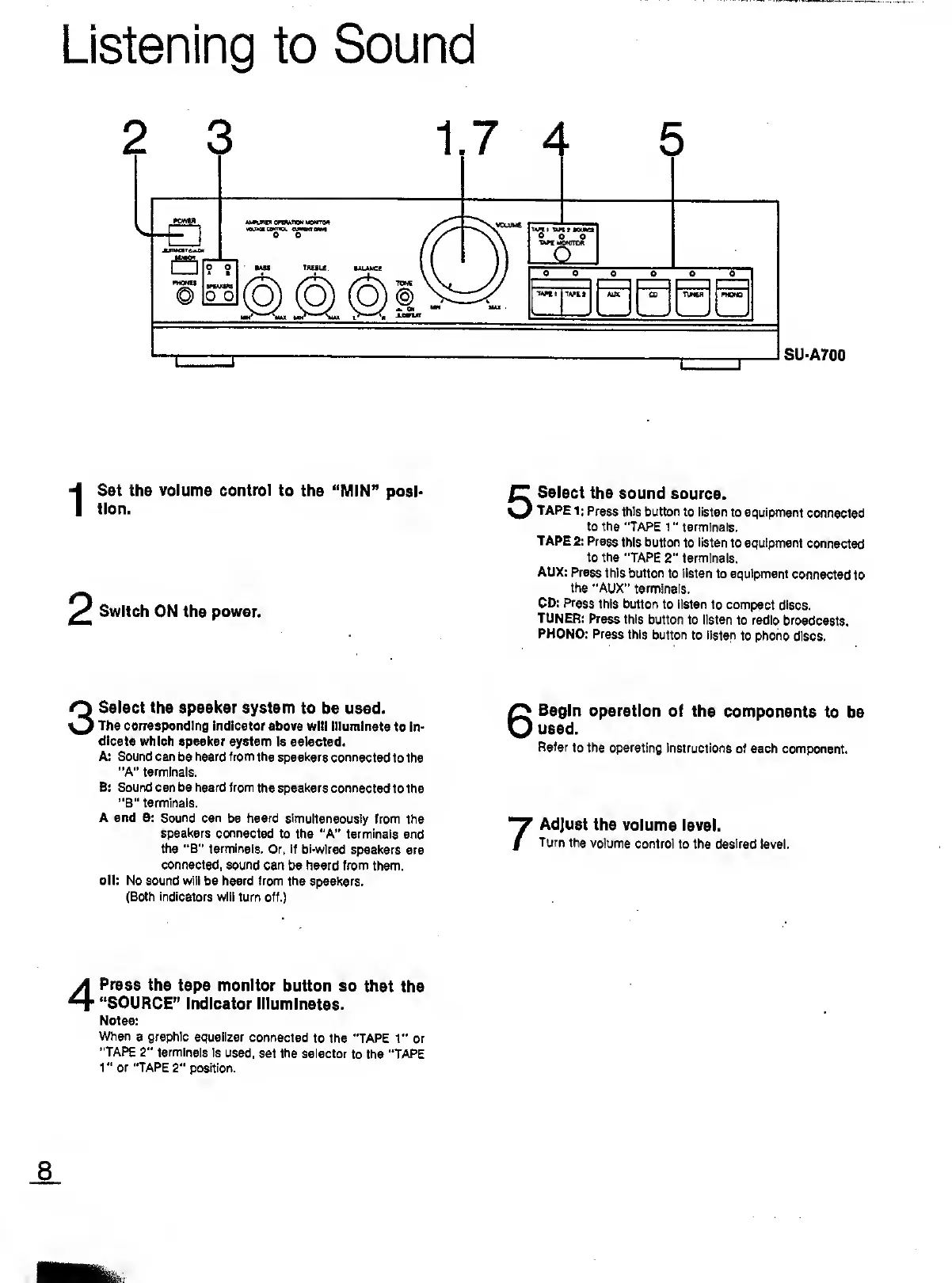

Listening to Sound
I S et the volume control to the “MIN” posi¬
tion.
2 Switch ON the power.
3 S elect the speaker system to be used.
The corresponding Indicator above will Illuminate to In¬
dicate which speaker system is selected.
A: Sound can be heard from the speakers connected to the
“A” terminals.
B: Sound can be heard from the speakers connected to the
"B” terminals.
A and B: Sound can be heard simultaneously from the
speakers connected to the "A" terminals and
the “B" terminals. Or, if bi-wired speakers are
connected, sound can be heard from them,
off: No sound will be heard from the speakers.
(Both indicators will turn off.)
4 P ress the tape monitor button so that the
“SOURCE” indicator illuminates.
Notes:
When a graphic equalizer connected to the “TAPE 1" or
"TAPE 2" terminals Is used, set the selector to the “TAPE
1 ” or “TAPE 2" position.
5 S elect the sound source.
TAPE 1: Press this button to listen to equipment connected
to the "TAPE 1 ” terminals.
TAPE 2: Press this button to listen to equipment connected
to the “TAPE 2" terminals.
AUX: Press this button to listen to equipment connected to
the “AUX" terminals.
CD: Press this button to listen to compact discs.
TUNER: Press this button to listen to radio broadcasts.
PHONO: Press this button to listen to phono discs.
6 B egin operation of the components to be
used.
Refer to the operating Instructions of each component.
Adjust the volume level.
Turn the volume control to the desired level.

Technics SU-A600 Specifications

General

Input Sensitivity	2.5mV (MM), 150mV (line)
Speaker Load Impedance	4Ω to 16Ω
Type	Integrated Amplifier
Dimensions	430 x 134 x 315 mm
Damping Factor	60 (8 ohms)
